Connecting Expansion Trays - Sun Oracle Sun Storage 2500-M2 Arrays Hardware Installation Manual

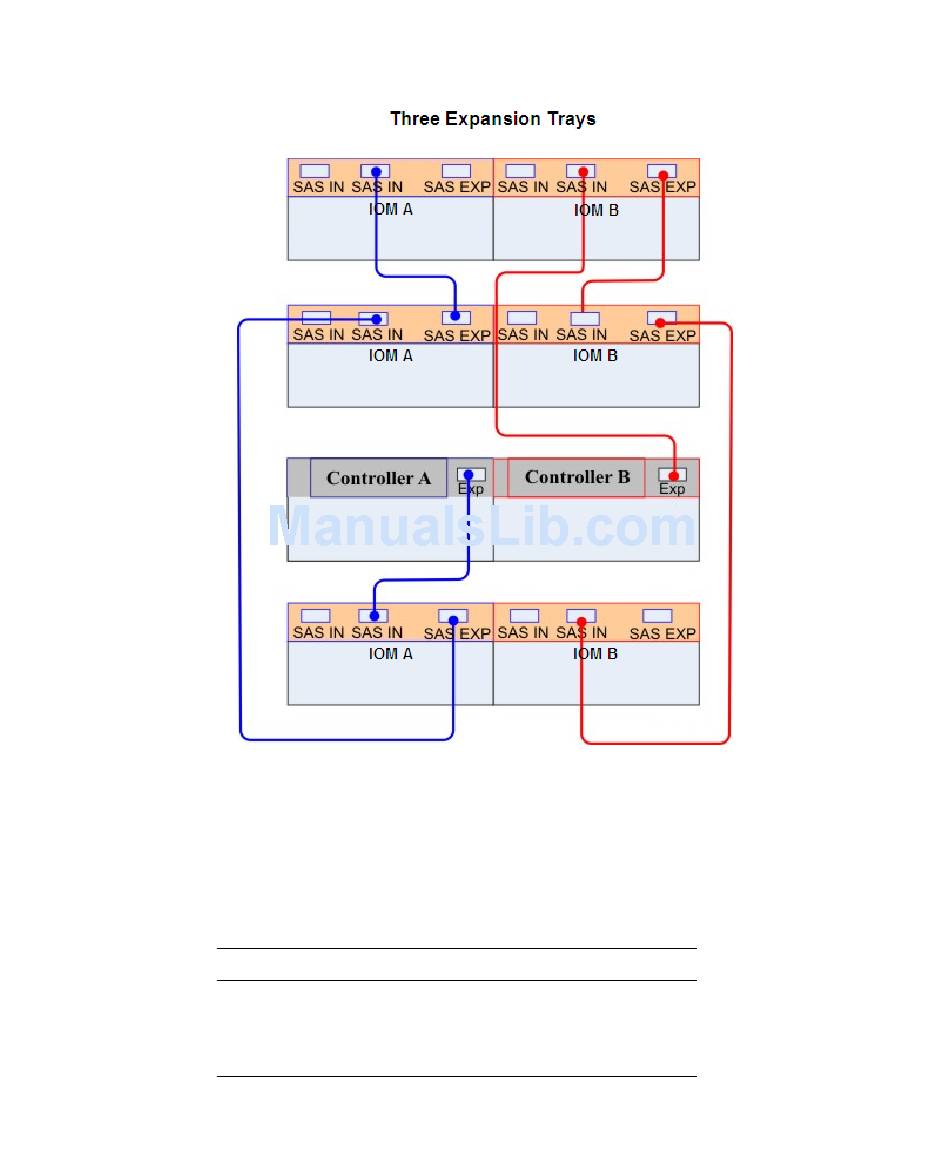

Controller Tray with Three Expansion Trays
FIGURE 3-7

Connecting Expansion Trays

1. Use the following table to determine the number of SAS cables that you need:
Expansion Tray Cabling
TABLE 3-1
Number of Expansion Trays
1
2
3
Number of Cables Required
2
4
6
Chapter 3 Installing Trays 27
