Controller Tray Rear-Access Components

FIGURE 1-3
2540-M2 Arrays controller trays include.
FIGURE 1-3
1
2
3
4
5
6
7
FIGURE 1-4
6 Hardware Installation Guide • June 2011
describes the components that you access from the rear of the Sun Storage

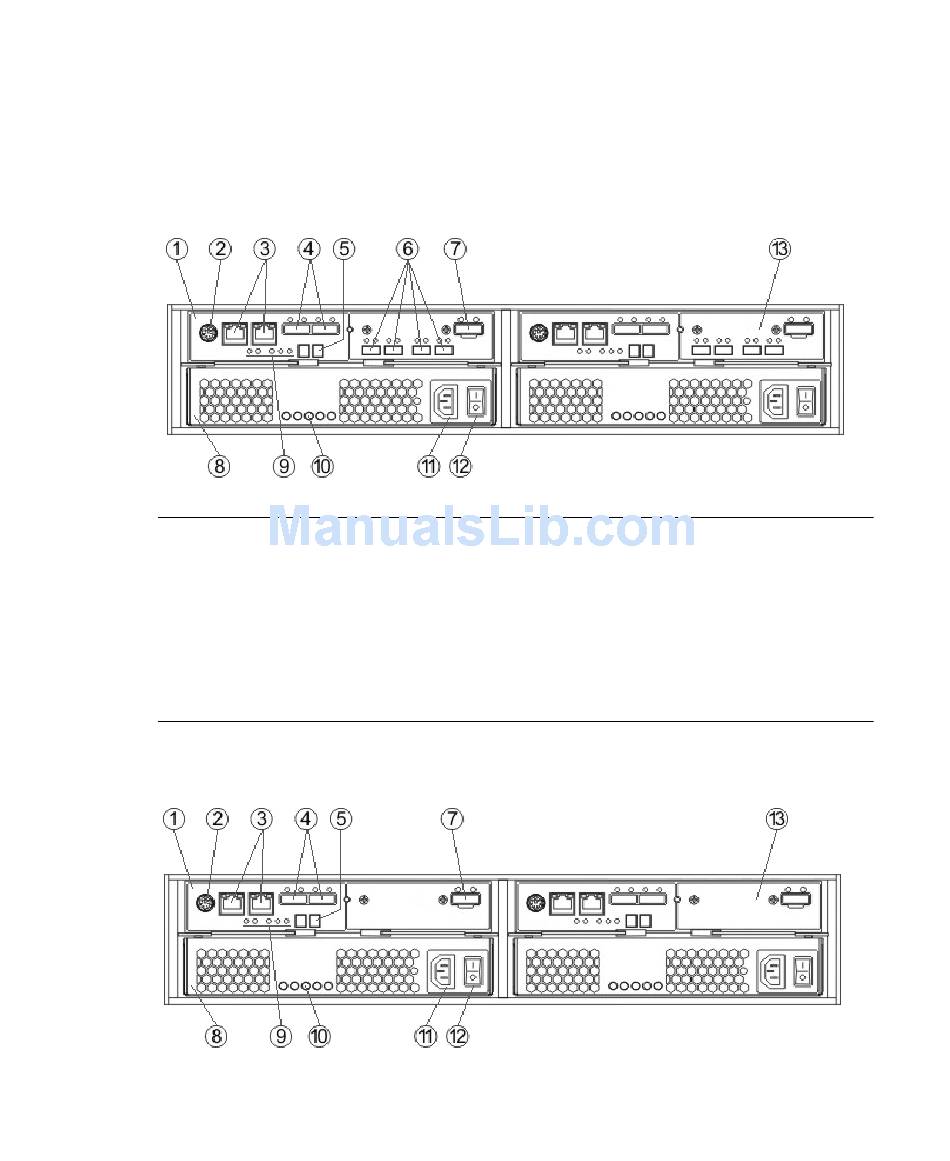

2540-M2 FC Controller Tray, Rear-Access Components
Controller module A
Serial port
Ethernet ports
SAS host ports (Not for use and not supported
on 2540-M2)
7-Segment display
FC host ports (Not available on 2530-M2)
SAS expansion port
2530-M2 SAS Controller Tray, Rear Access Components
8 Power-fan module
9 Controller module LEDs
10 Power-fan module LEDs
11 Power connector
12 Power switch
13 Controller module B
