Print Server Controls and Technical Data

Characteristics
Printer Connector
Network Connection
Operating Environment
Dimensions
Hardware Installation Guide
Values
- 2 x USB 2.0 HS (expandable to 5 ports)
logical: - IEEE 802.3i (10BaseT Ethernet)
- IEEE 802.3u (100BaseTX Fast Ethernet)
- IEEE 802.3u (100BaseFX Fast Ethernet)
physical: - SC (Type MMF 62,5/125)
- Ambient temperature: 5 - 40 °C
- Relative humidity: 20 - 80 %
- Length 98 mm
- Width 105 mm
- Height 31 mm
- Weight 120 g

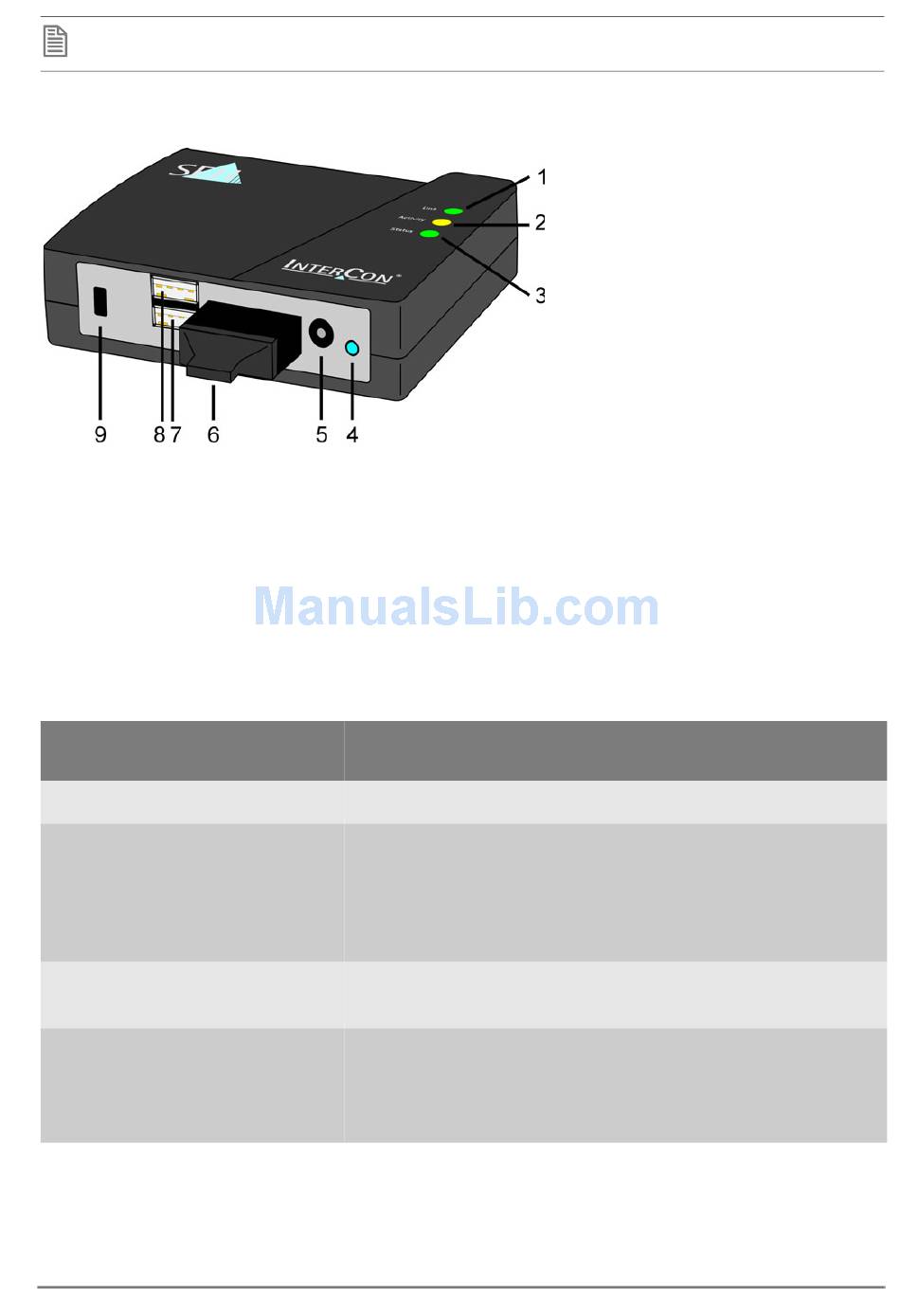

1) Link indicator LED (green):
The LED lights up when a
(physical) connection to the
network is available.
2) Network activity LED (yellow):
The LED lights up when data
packets are being received.
3) Status indicator LED (green):
The LED shows that the print
server is operational.
4) Status button
5) Connector for the SEH power
pack
6) SC connector for 100BaseFX
7) USB port 2
8) USB port 1
9) Slot for security lock
