Overview
This Hardware Installation Guide provides a brief description of the hardware
installation of the print server. It contains the following information:
Scope of Supply
Safety Regulations
Print Server Controls and Technical Data
Mounting the Print Server
Notification
Information and Hotline
To obtain additional information about your print server, please refer to the
documentation on the Product CD. Should you have any further questions, please
contact our support hotline.
Monday - Thursday
Friday
℡
+49 (0)521 94226-44
@
support@seh.de
Hardware Installation Guide
Print Server
PS23a
Hardware Installation Guide
8:00 a.m. to 4:45 p.m. and
8:00 a.m. to 3:15 p.m. (CET)
1
Advertisement
Table of Contents
Related Manuals for SEH PS23a
Summary of Contents for SEH PS23a
-
Page 1: Print Server

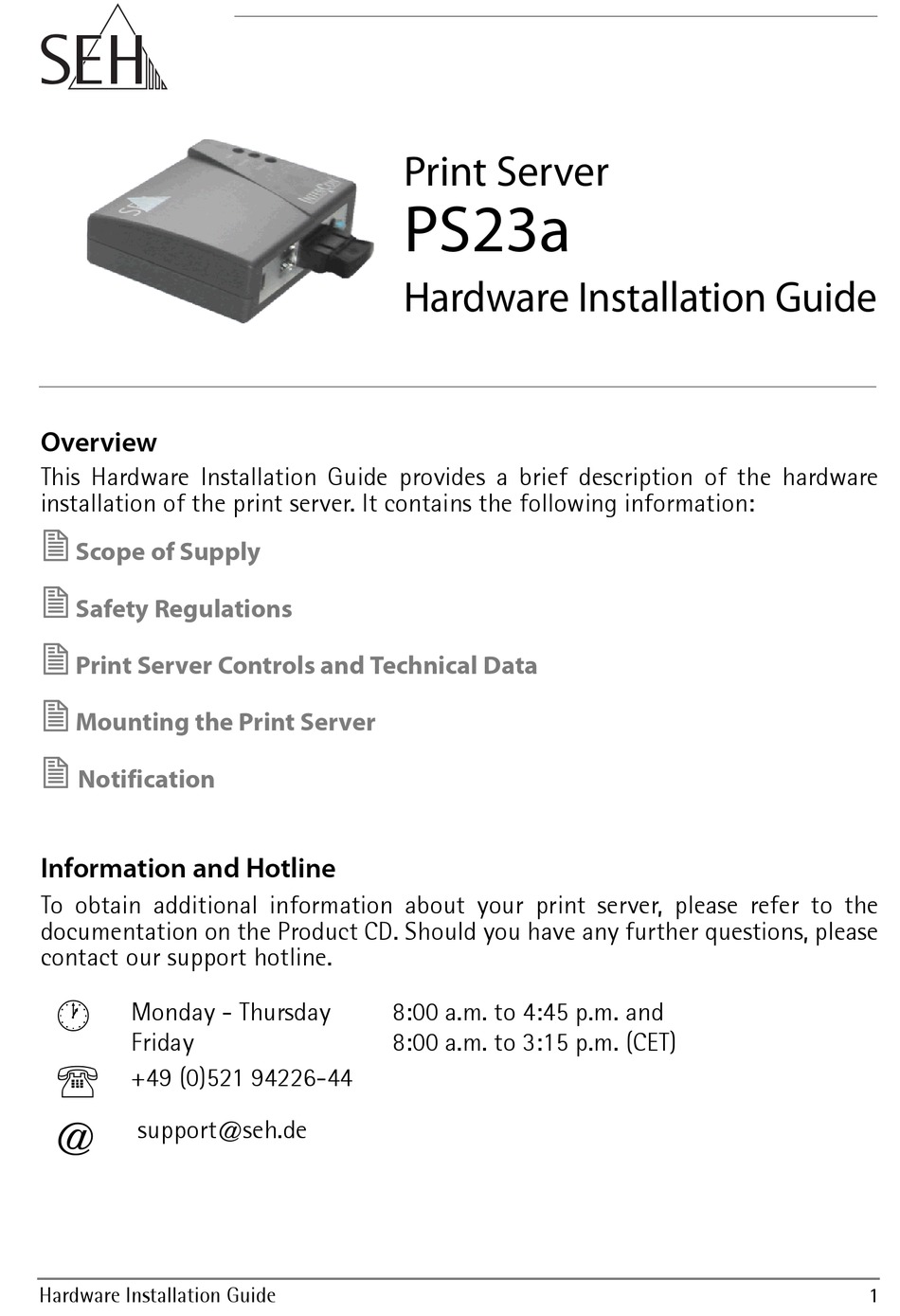

Print Server PS23a Hardware Installation Guide Overview This Hardware Installation Guide provides a brief description of the hardware installation of the print server. It contains the following information: Scope of Supply Safety Regulations Print Server Controls and Technical Data Mounting the Print Server... -
Page 2: Scope Of Supply
- Installation Manuals (The pdf files provide a detailed description of the software installation under each of the supported operating systems.) - InterCon-NetTool (Administration tool), - SEH Printer Wizard (Printer Installation Wizard), - SEH Print Monitor, - SEH UTN Manager, - SEH Private-MIB,... -
Page 3: Safety Regulations
Safety Regulations English [en] Print servers are network interfaces for printers in office environments and are designed for the direct integration of printers into networks. Before starting the initial operation procedure of your device, please note the following safety regulations: •... - Page 4 • Lisez attentivement la documentation et assurez-vous que votre système satisfait bien toutes les exigences mentionnées. • Evitez le contact avec l'humidité ou avec le liquide. • Le périphérique doit être connecté et exploité uniquement en parfait état de fonctionnement. •...
- Page 5 • Il dispositivo deve essere utilizzato con l'alimentatore compreso nella consegna. • Per il collegamento alla stampante, utilizzare un cavo USB certificato che si trova nel elenco all'indirizzo www.usb.org. Português [pt] Servidores de impressão são interfaces de rede para impressoras em ambientes empresariais e destinam-se à...
- Page 6 Printservere er netværksgrænseflader til printere i kontormiljøer og bruges til at integrere printere direkte i netværk. Inden De tager Deres apparatet i brug, skal De være opmærksom på følgende sikkerhedsforskrifter: • Læs det tilhørende skriftlige materiale, og kontroller, at Deres system opfylder de angivne krav.
- Page 7 • Dit is een klasse-1 laserproduct. Wanneer een kabel op een SC- resp. ST-stekker is aangesloten, wordt eventueel onzichtbare laserstraling uitgezonden. Kijk niet in de laserstraal en stelt u zich niet aan de laserstraling bloot. Plaats de meegeleverde beschermkappen op de SC- resp. ST-stekkers wanneer deze niet worden gebruikt. •...
-
Page 8: Lietuvių Kalba [Lt]
• Zariadenie tlaèového servera sa smie prevádzkovat’ iba so súèasne dodaným siet’ovým zdrojom. • Pre spojenie s tlačiarnou používajte certifikovaný USB-Hi-Speed-kábel. Zoznam certifikovaných káblov nájdete na stránke www.usb.org ! Eesti [et] Printserverid on võrguliidesed bürooprinterite jaoks ning nende ülesandeks on printerite otsene ühendamine võrku. - Page 9 Printera serveri ir tīkla saskarnes printeriem biroju apkārtnē un tie kalpo tiešai printeru ieslēgšanai tīklos. Pirms uzsākt iekārtas ekspluatāciju, lūdzam iepazīties ar sekojošiem drošības noteikumiem: • Iepazīstieties ar dokumentāciju un pārliecinieties, ka Jūsu sistēma atbilst minētajām prasībām. • Iekārta nedrīkst nonākt saskarē ar mitrumu vai šķidrumu. •...
- Page 10 • Jest to produkt laserowy klasy 1. Jeżeli do wtyku SC względnie ST nie jest podłączony kabel, możliwe jest wydostawanie się niewidzialnego promienia lasera. Nie narażać się na działanie promienia lasera i nie patrzeć w niego. Założyć dostarczoną osłonę na wtyczkę SC lub ST, jeżeli nie jest ona używana. •...
- Page 11 Il-print servers huma interfaces ta' netwerk ghall-printers f'uffiććju u huma ddisinjati ghall- integrazzjoni diretta ta' printers ma' netwerks. Qabel ma tibda bil-proćedura inizjali ta' thaddim ta' l-apparat tieghek, jekk joghgbok hu nota tar-regolamenti ta' sigurtŕ li gejjin: • Aqra d-dokumentazzjoni u aghmel ćert li s-sistema tieghek tissodisfa l-htigijiet elenkati fiha.
- Page 12 • Acesta este un produs cu laser de clasa 1. Dacă la fişa SC şi fişa ST nu este conectat niciun cablu, este posibilă o emisie invizibilă de radiaţie laser. Nu vă expuneţi fasciculului laser şi nu priviţi în acesta. Introduceţi căpăcelele de protecţie incluse în setul de livrare pe fişa SC, respectiv fişa ST, dacă...
-
Page 13: Print Server Controls And Technical Data
3) Status indicator LED (green): The LED shows that the print server is operational. 4) Status button 5) Connector for the SEH power pack 6) SC connector for 100BaseFX 7) USB port 2 8) USB port 1... -
Page 14: Mounting The Print Server
Mounting the Print Server The print server allows printers and plotters to be connected to the network via the USB interface. Integrate the print server in the network Print Server Hardware Installation Guide... -
Page 15: Connect The Print Server To The Printer
Connect the print server to the printer Proceed as follows: 1. Turn the printer off. 2. Disconnect the printer's power cord. 3. Remove the data cable (USB) connecting the printer to the computer. 4. Connect the data cable (USB) to the print server. Connect the print server to the network Proceed as follows: 1. -
Page 16: Additional Features
Additional Features Use the print server with up to four additional printers It is possible to connect a hub to the USB port 2 of the print server and use it with up to four additional printers at the hub. (Note: The USB hub is not part of the delivery.) Use the print server with a security lock The print server can be used with a security lock, e.g. - Page 17 Notification The latest version of the EC declaration of conformity can be downloaded from the homepage of SEH Computertechnik GmbH: http://www.seh-technology.com/services/ce-notification.html EC - Class B Hardware Installation Guide...
- Page 18 FCC - Class A Hardware Installation Guide...
- Page 19 Hardware Installation Guide...
