Overview
This Hardware Installation Guide provides a brief description of the hardware
installation of the print server. It contains the following information:
Scope of Supply
Safety Regulations
Print Server Controls and Technical Data
Mounting the Print Server
Notification
Information and Hotline
To obtain additional information about your print server, please refer to the
documentation on the Product CD. Should you have any further questions, please
contact our support hotline.
Monday - Thursday
Friday
℡
+49 (0)521 94226-44
@
support@seh.de
Hardware Installation Guide
Print Server
PS105
Hardware Installation Guide
8:00 a.m. to 4:45 p.m. and
8:00 a.m. to 3:15 p.m. (CET)
1
Advertisement
Table of Contents
Related Manuals for SEH PS105
Summary of Contents for SEH PS105
-
Page 1: Print Server
Print Server PS105 Hardware Installation Guide Overview This Hardware Installation Guide provides a brief description of the hardware installation of the print server. It contains the following information: Scope of Supply Safety Regulations Print Server Controls and Technical Data Mounting the Print Server... -
Page 2: Scope Of Supply
- Installation Manuals (The pdf files provide a detailed description of the software installation under each of the supported operating systems.) - InterCon-NetTool (Administration tool), - SEH Printer Wizard (Printer Installation Wizard), - SEH Print Monitor, - SEH Private-MIB, - Adobe Reader... -
Page 3: Safety Regulations
Safety Regulations English [en] Print servers are network interfaces for printers in office environments and are designed for the direct integration of printers into networks. Before starting the initial operation procedure of your device, please note the following safety regulations: •... - Page 4 • Evitez le contact avec l'humidité ou avec le liquide. • Le périphérique doit être connecté et exploité uniquement en parfait état de fonctionnement. • Assurez-vous que personne ne trébuche sur les câbles. • Ne branchez aucune ligne téléphonique au connecteur RJ-45. Les connecteurs RJ-45 ne doivent être connectés qu'aux tensions SELV.
- Page 5 Português [pt] Servidores de impressão são interfaces de rede para impressoras em ambientes empresariais e destinam-se à integração directa das impressoras dentro das redes. Antes de colocar o seu dispositivo em funcionamento, observe os seguintes avisos de segurança: • Leia a documentação e certifique-se de que o seu sistema corresponde aos requisitos indicados.
- Page 6 • Kabler skal udlægges således, at personer ikke kan træde på dem eller snuble over dem. • Sæt ikke telefonledninger i RJ-45-stikket. Til dette stik må kun tilsluttes lav sikkerhedsspænding. Til tilslutning til RJ-45-stikket må kun bruges STP-kabler (kategori 5 eller bedre). Kablets lednings- og stikafskærmning skal være fladt forbundet.
- Page 7 Οι printserver είναι διεπαφές δικτύου για εκτυπωτές σε χώρους γραφείου και εξυπηρετούν την απευθείας σύνδεση εκτυπωτών σε δίκτυα. Πριν τη θέση σε λειτουργία της συσκευής σας λάβετε υπόψη σας τις ακόλουθες οδηγίες ασφαλείας: • Διαβάστε το εγχειρίδιο και βεβαιωθείτε ότι το σύστημά σας ανταποκρίνεται στις απαιτήσεις...
-
Page 8: Lietuvių Kalba [Lt]
• Seade ei tohi kokku puutuda niiskuse ega vedelikega. • Ühendada ja kasutada võib ainult vigastamata seadet. • Paigutage kõik kaablid selliselt, et keegi ei astuks neile peale ega komistaks nende otsa. • Ärge ühendage RJ-45-pistikuga telefoniliine. Selle külge võib ühendada ainult madalpingeseadmeid. - Page 9 Slovenščina [sl] Tiskalniški strežniki so omrežni vmesniki za tiskalnik v uradih in služijo za neposredno povezavo tiskalnikov v omrežja. Pred zagonom svoje naprave upoštevajte naslednje varnostne predpise: • Preberite dokumentacijo in prepričajte se, da vaš sistem ustreza navedenim zahtevam. • Stroj ne sme priti v stik z vlago ali tekočino.
- Page 10 • Do zásuvky RJ-45-nepřipojujte žádné telefonní kabely. Do zásuvky smí být přivedeno pouze bezpečné nízké napětí. Pro připojení do zásuvky RJ-45 používejte výhradně kabely STP (Kategorie 5 nebo vyšší). Stínění kabelu a zásuvky musí být spojeno plošně. • Přístroj je dovoleno provozovat pouze s dodaným sítovým dílem. •...
- Page 11 • Прочетете документацията и се уверете, че Вашата система отговаря на изискванията. • Уредът не бива да има съприкосновение с влага или с течности. • Уредът може да се свърже и експлоатира само в безупречно състояние. • Положете кабела така, че никой да не може да го настъпи или да се спъне в него.
-
Page 12: Print Server Controls And Technical Data

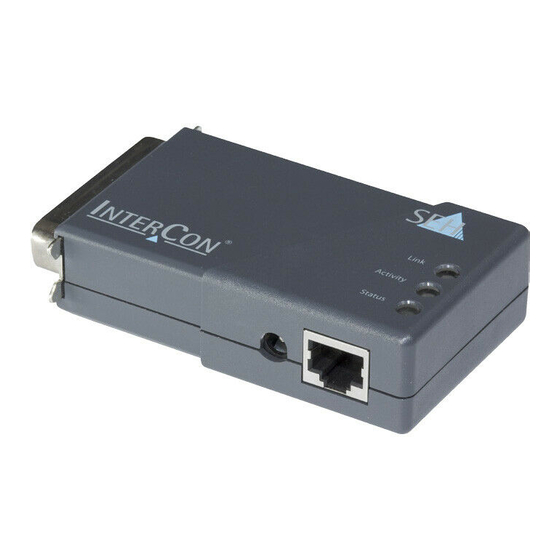

5) Status indicator LED (green): The LED shows that the print server is operational. 6) RJ-45 connector for 100BaseTX and 10BaseT 7) Connector for SEH power pack Characteristics Values Printer Connector - 1 x Centronics (IEEE1284B, 36 pin Centronics Connector, 1284.4 compatible) -
Page 13: Mounting The Print Server
Mounting the Print Server The print server allows printers and plotters to be connected to the network via the Centronics interface. Connect the print server to the printer Proceed as follows: 1. Turn the printer off. 2. Disconnect the printer's power cord. 3. - Page 14 Notification The latest version of the EC declaration of conformity can be downloaded from the homepage of SEH Computertechnik GmbH: http://www.seh-technology.com/services/ce-notification.html EC - Class B Hardware Installation Guide...
- Page 15 FCC - Class B Hardware Installation Guide...
- Page 16 © 2011 SEH Computertechnik GmbH All trademarks, registered trademarks, logos and product names are property of their respective owners. This product uses ’Open Source Software’ . For further information, please contact http://www.seh.de. The product documentation gives you valuable information about your product.
