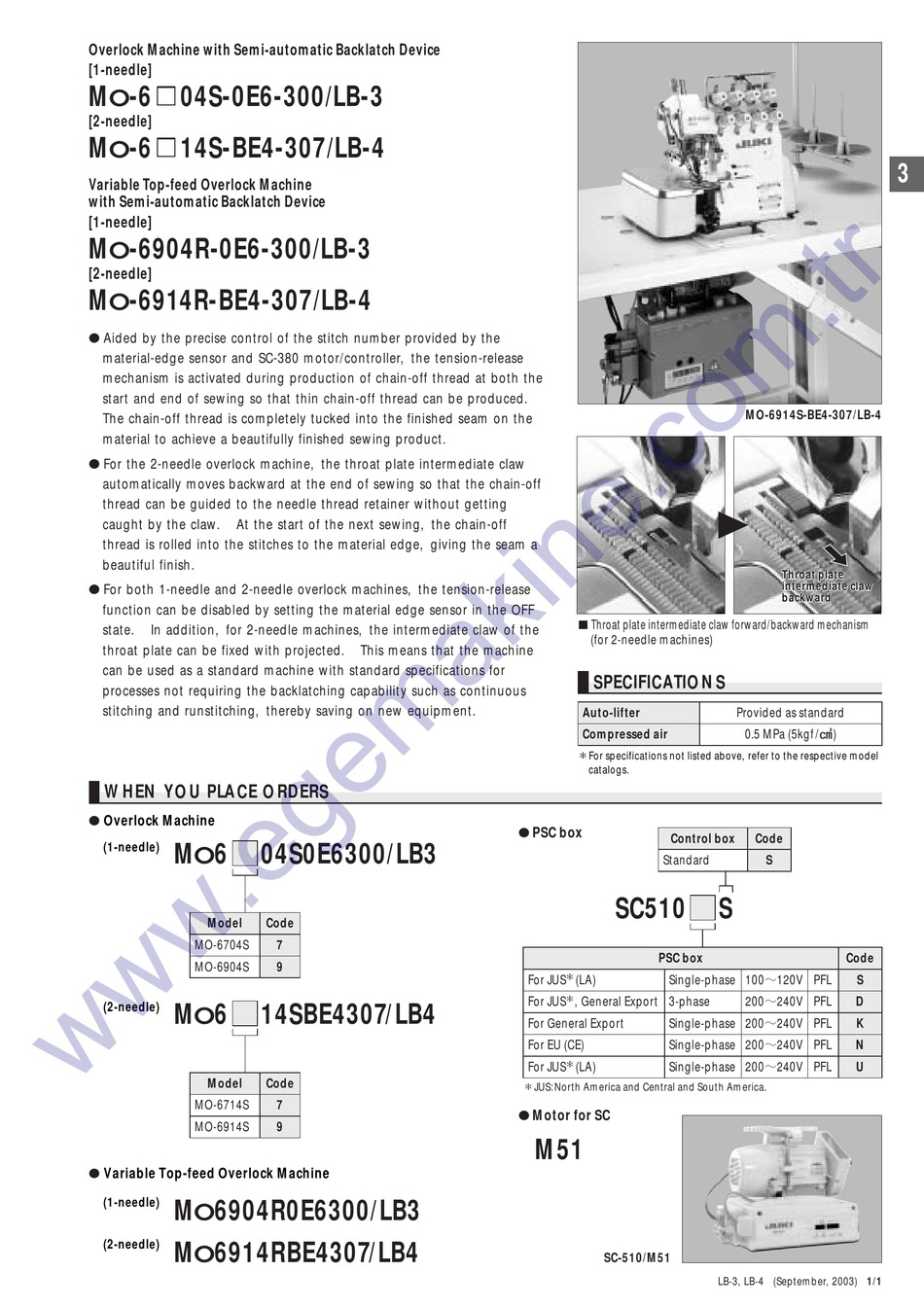

Overlock Machine with Semi-automatic Backlatch Device
[1-needle]
MO-6 04S-0E6-300/LB-3
[2-needle]
MO-6 14S-BE4-307/LB-4
Variable Top-feed Overlock Machine
with Semi-automatic Backlatch Device
[1-needle]
MO-6904R-0E6-300/LB-3
[2-needle]
MO-6914R-BE4-307/LB-4
● Aided by the precise control of the stitch number provided by the
material-edge sensor and SC-380 motor/controller, the tension-release
mechanism is activated during production of chain-off thread at both the
start and end of sewing so that thin chain-off thread can be produced.
The chain-off thread is completely tucked into the finished seam on the
material to achieve a beautifully finished sewing product.
● For the 2-needle overlock machine, the throat plate intermediate claw
automatically moves backward at the end of sewing so that the chain-off
thread can be guided to the needle thread retainer without getting
caught by the claw. At the start of the next sewing, the chain-off
thread is rolled into the stitches to the material edge, giving the seam a
beautiful finish.
● For both 1-needle and 2-needle overlock machines, the tension-release
function can be disabled by setting the material edge sensor in the OFF
state. In addition, for 2-needle machines, the intermediate claw of the
throat plate can be fixed with projected.
can be used as a standard machine with standard specifications for
processes not requiring the backlatching capability such as continuous
stitching and runstitching, thereby saving on new equipment.
WHEN YOU PLACE ORDERS
●
Overlock Machine
(1-needle) MO6 04S0E6300/LB3
Model
MO-6704S
MO-6904S
(2-needle)
MO6 14SBE4307/LB4
Model
MO-6714S
MO-6914S
●
Variable Top-feed Overlock Machine
(1-needle)
MO6904R0E6300/LB3
(2-needle)
MO6914RBE4307/LB4
This means that the machine
Code
7
9
Code
7
9
■ Throat plate intermediate claw forward/backward mechanism
(for 2-needle machines)
SPECIFICATIONS
Auto-lifter
Compressed air
For specifications not listed above, refer to the respective model
catalogs.
● PSC box
Control box
Standard
SC510
PSC box
For JUS (LA) Single-phase 100 120V PFL
For JUS , General Export 3-phase
For General Export Single-phase 200 240V PFL
For EU (CE) Single-phase 200 240V PFL
For JUS (LA) Single-phase 200 240V PFL
JUS: North America and Central and South America.
● Motor for SC
M51
SC-510/M51
MO-6914S-BE4-307/LB-4
Throat plate Throat plate
intermediate claw intermediate claw
backward backward
Provided as standard
0.5 MPa (5kgf/F)
Code
S
S
Code
S
200 240V PFL D
K
N
U
LB-3, LB-4 (September, 2003) 1/1
