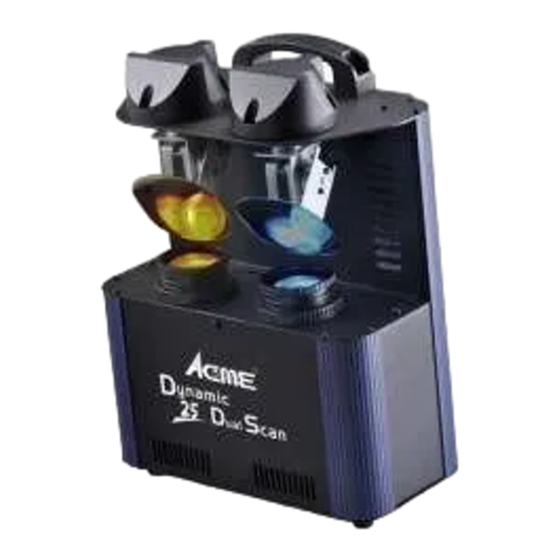

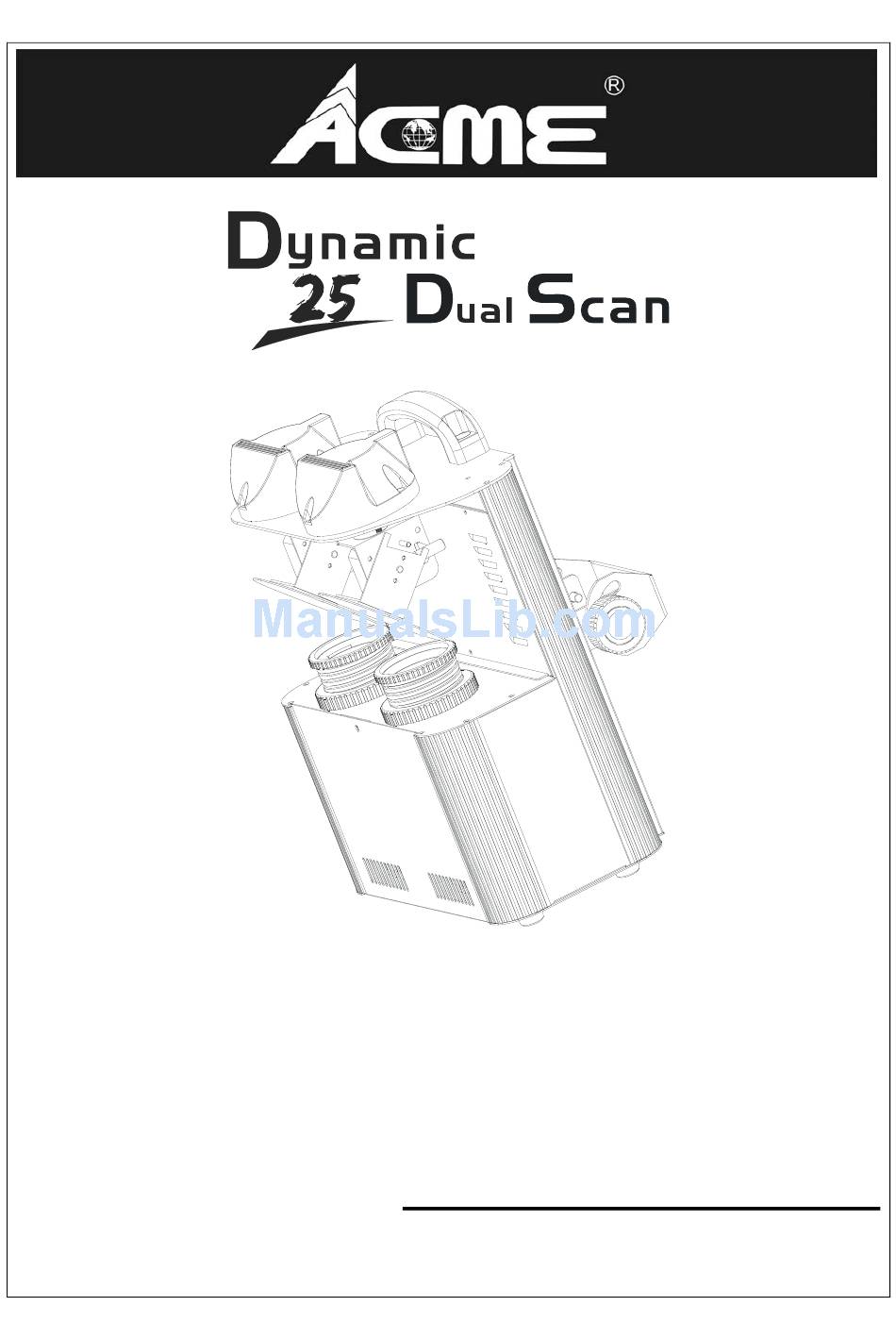

  • Page 1 LED-SC252 User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ....................2 2. Technical Specifications ....................3 3. How To Set The Unit ....................4 3.1 Control Panel ......................4 4. How To Control The Unit ..................5 4.1 Master/Slave Built In Preprogrammed Function ..........5 4.2 Easy Controller ....................6 4.3 DMX Controller ....................6 5.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specifications

    Caution: There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating.

  • Page 5: How To Set The Unit

    ◇ LED Sources: 2 × 25W CREE LEDs ◇ Beam Angle: 16° ◇ Weight: 6.5Kgs ◇ Dimension: 351 × 283 × 231mm 3. How To Set The Unit 3.1 Control Panel...

  • Page 6: How To Control The Unit

    1. DMX IN: DMX512 link, use 3-pin XLR cable to link the unit and the DMX controller; 2. DMX OUT: DMX512 link, use 3-pin XLR cable to link the next unit and output the DMX signal; 3. ONLY FOR REMOTE CONTROL: Connects with the optional CA-8 to control the unit;...

  • Page 7: Easy Controller

    In Master/Slave mode refer to the DMX settings below: Master unit: DMX start address MUST be set to 001. (First DIP switch = ON, all other are OFF) Slave units: DMX start address may have any value but NOT 001 (example: set the first 3 DIP switches to ON) ﹡Dipswitch 2 “ON”...

  • Page 8: Dmx 512 Configuration

    used to select channel mode, it’s ON means 1 channel mode and OFF means 3 channel mode. Please refer to the following diagram to know how to address your DMX 512 system in the binary code. DMX 512 Address Chart: Dip-switches Value 2-Light Show...
  • Page 9 GOBO 1 0 – 7 Open 8 – 14 Gobo 1 15 – 21 Gobo 2 22 – 28 Gobo 3 29 – 35 Gobo 4 36 – 42 Gobo 5 43 – 49 Gobo 6 50 – 56 Gobo 7 57 –...

  • Page 10: Dmx512 Connection

    36 – 42 Gobo 5 43 – 49 Gobo 6 50 – 56 Gobo 7 57 – 63 Gobo 8 64 – 71 Open shaking 72 – 78 Gobo 1 shaking 79 – 85 Gobo 2 shaking 86 – 92 Gobo 3 shaking 93 –...
  • Page 11 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) of a 3-pin XLR-plug and plug it in the DMX-output of the last unit. 3.

  • Page 12: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 13: Fixture Cleaning

    8. Fixture Cleaning The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. ...

  • Page 15: Declaration Of Conformity

    Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
