Connecting/Using A Decoder - JVC HM-HDS1EU Instructions Manual

72
EN

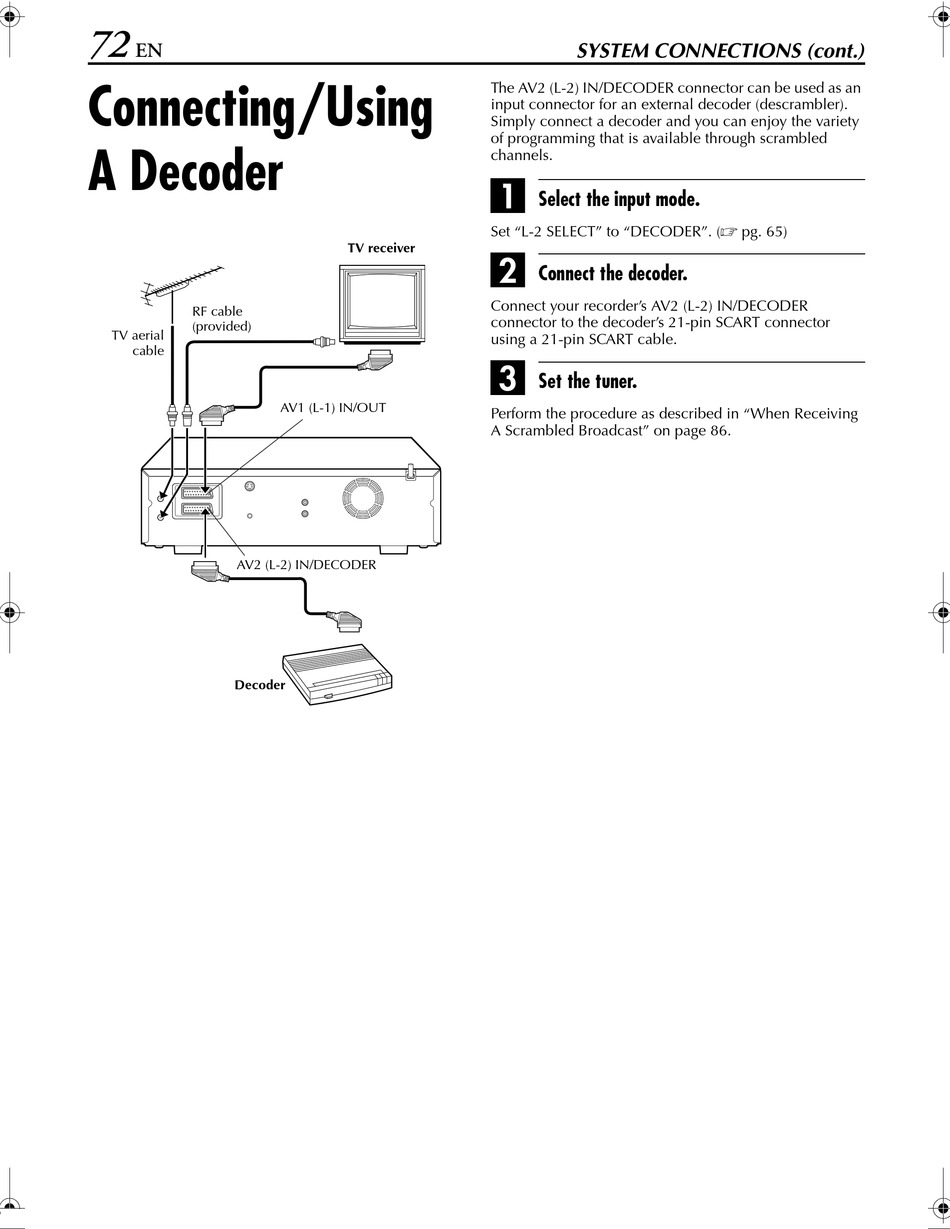

Connecting/Using
A Decoder
RF cable
(provided)
TV aerial
cable
AV2 (L-2) IN/DECODER
Decoder
TV receiver
AV1 (L-1) IN/OUT
SYSTEM CONNECTIONS (cont.)
The AV2 (L-2) IN/DECODER connector can be used as an
input connector for an external decoder (descrambler).
Simply connect a decoder and you can enjoy the variety
of programming that is available through scrambled
channels.
A
Select the input mode.
Set "L-2 SELECT" to "DECODER". (
B
Connect the decoder.
Connect your recorder's AV2 (L-2) IN/DECODER
connector to the decoder's 21-pin SCART connector
using a 21-pin SCART cable.
C
Set the tuner.
Perform the procedure as described in "When Receiving
A Scrambled Broadcast" on page 86.
pg. 65)
