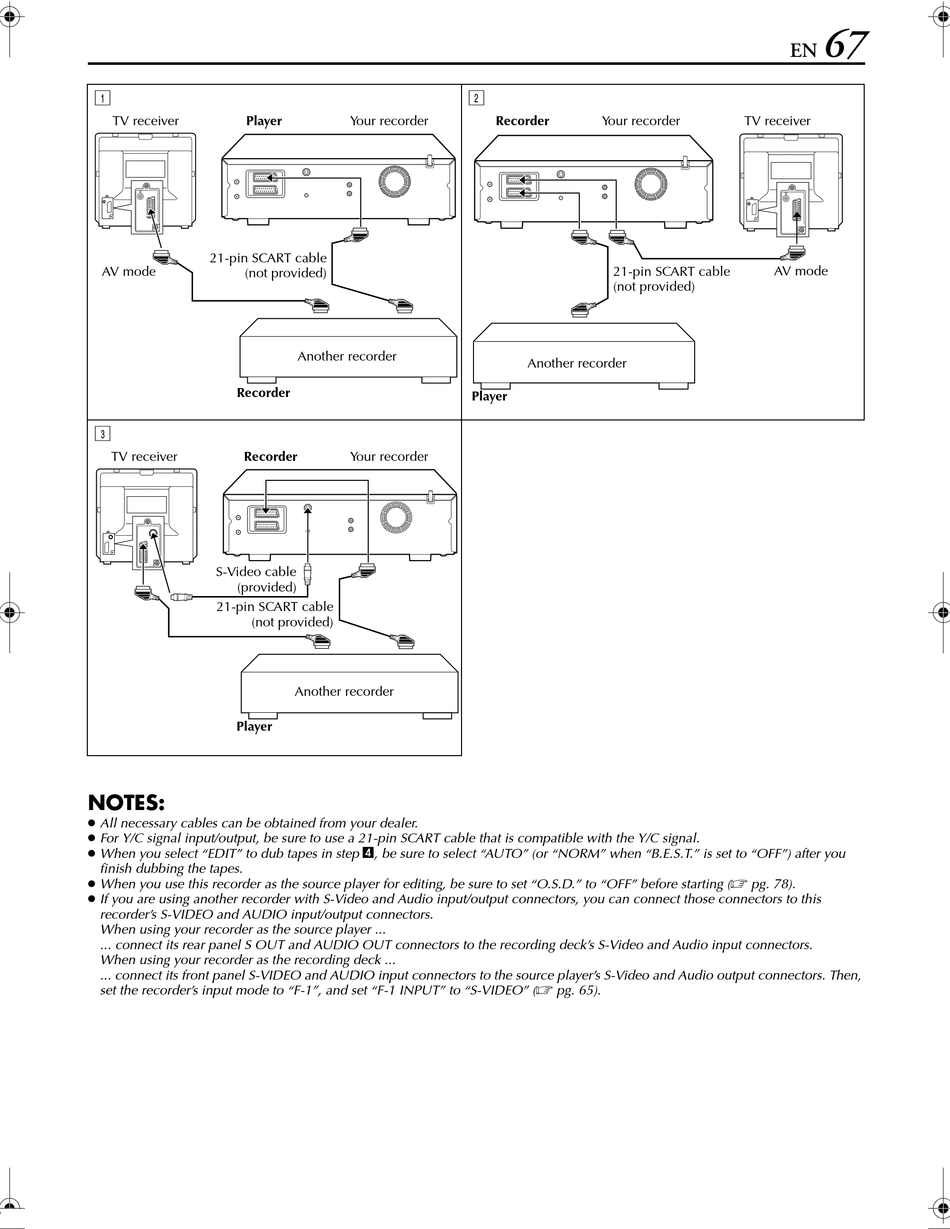

JVC HM-HDS1EU Instructions Manual page 67

A
TV receiver
21-pin SCART cable
AV mode
Recorder
C
TV receiver
S-Video cable
(provided)
21-pin SCART cable
Player
NOTES:
All necessary cables can be obtained from your dealer.
For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.
When you select "EDIT" to dub tapes in step D, be sure to select "AUTO" (or "NORM" when "B.E.S.T." is set to "OFF") after you
finish dubbing the tapes.
When you use this recorder as the source player for editing, be sure to set "O.S.D." to "OFF" before starting (
If you are using another recorder with S-Video and Audio input/output connectors, you can connect those connectors to this
recorder's S-VIDEO and AUDIO input/output connectors.
When using your recorder as the source player ...
... connect its rear panel S OUT and AUDIO OUT connectors to the recording deck's S-Video and Audio input connectors.
When using your recorder as the recording deck ...
... connect its front panel S-VIDEO and AUDIO input connectors to the source player's S-Video and Audio output connectors. Then,
set the recorder's input mode to "F-1", and set "F-1 INPUT" to "S-VIDEO" (
Player Your recorder
(not provided)
Another recorder
Recorder Your recorder
(not provided)
Another recorder
B
Recorder Your recorder
21-pin SCART cable
(not provided)
Another recorder
Player
pg. 65).
67
EN
TV receiver
AV mode
pg. 78).
