Binks MACH 1SL Operation And Maintenance

The Binks MACH 1SL HVLP Gun is a
top quality high performance air spray
gun . You only have to pick it up to feel
the difference. Its superbly balanced
forged aluminum body offers the operator
extra comfort and control. All of the gun's
components are machined and finished to
exacting tolerances and only the best
materials are used, ensuring years of
peak efficiency.
The MACH 1SL HVLP airspray gun has
special nozzles and modifications that
allow it to operate at high transfer
efficiencies in compliance with the
"California South Coast Air Quality
Management District" regulations as a
"high volume, low pressure" airspray gun.
The air inlet passage in the gun body
incorporates a venturi which limits air-
flow. High pressure, low volume airflow
is converted to high volume, low pressure
at this point. Special air and fluid nozzles
enable the gun to atomize fluid at low air
pressures and velocities, creating the "soft
spray" effect for high transfer efficiencies.
To obtain optimum performance from
your new MACH 1SL HVLP airspray
gun, read all instructions carefully.
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 8.
Binks MACH 1SL HVLP
SPRAY GUN
Mach 1SLA (Adjustable Fluid Inlet)
& Mach 1SLV (Vitreous)
4
1
2
3

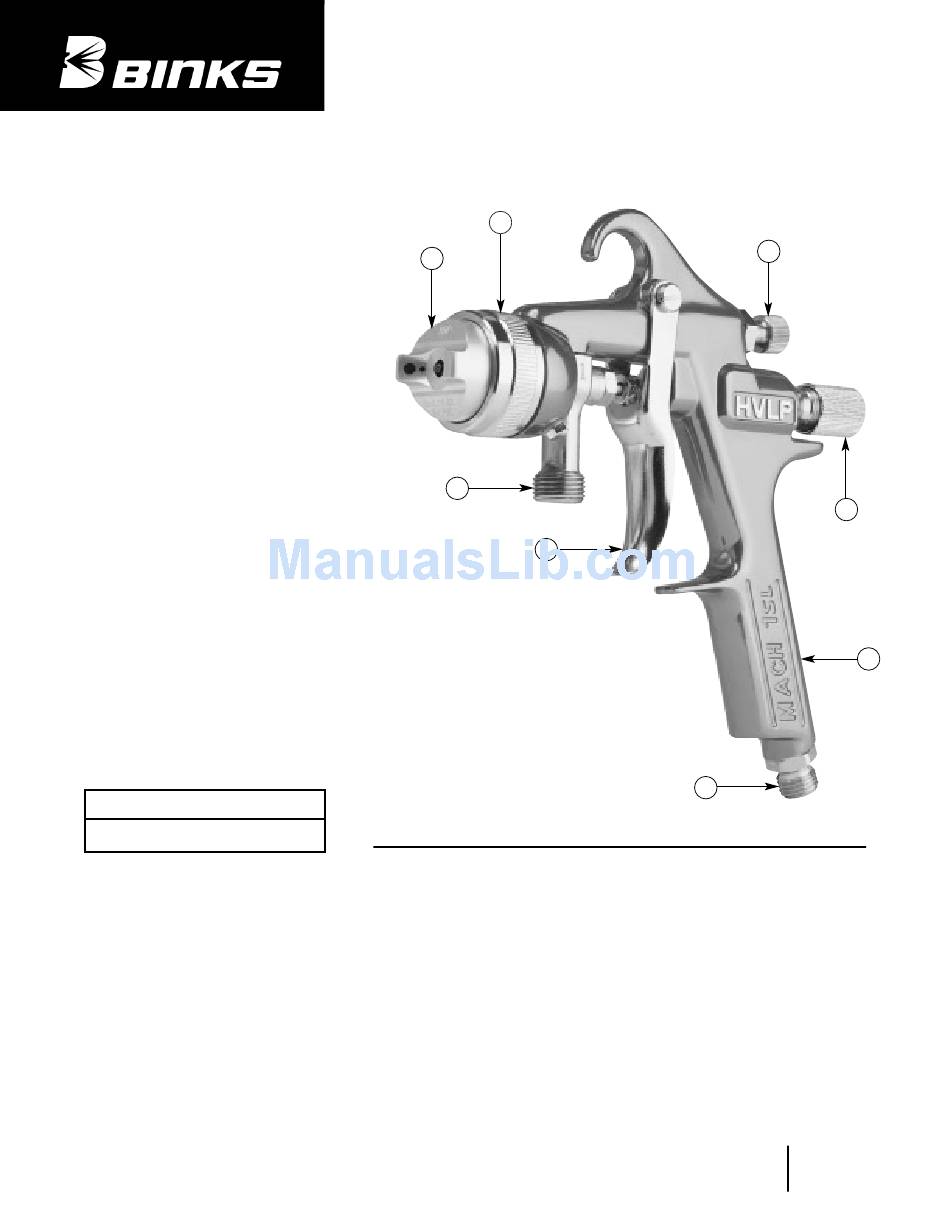

Illustration Key
1. Lightweight Air Nozzle
2. Fluid Inlet 3/8" NPS(m)
3. Extra Smooth Trigger Action
4. Stainless Steel Fluid Nozzle and Needle
5. Side Port Control
6. Fluid Control Knob
7. Forged Aluminum Body
8. Air Inlet 1/4" NPS(m)
Package Contents
Please note that your Binks MACH
1SL HVLP airspray gun package was
shipped with the following contents.
If anything in the following list is miss-
ing, call 1-800-99-BINKS for a prompt
shipment to you of the missing item.
5
8
1 MACH 1SL Spray Gun
1 Part Sheet . . . . . . . . . . . 2665
1 Gunners Mate
1 Gun Brush
Replaces
Part Sheet
77-2665R-3 77-2665R-4
6
7
Part
Sheet
