Binks MACH 1AR HVLP Service Manual

SERVICE MANUAL
EN
MACH 1AR AND MACH 1ARV HVLP
MACH 1AR HVLP AUTOMATIC
AIR SPRAY GUN

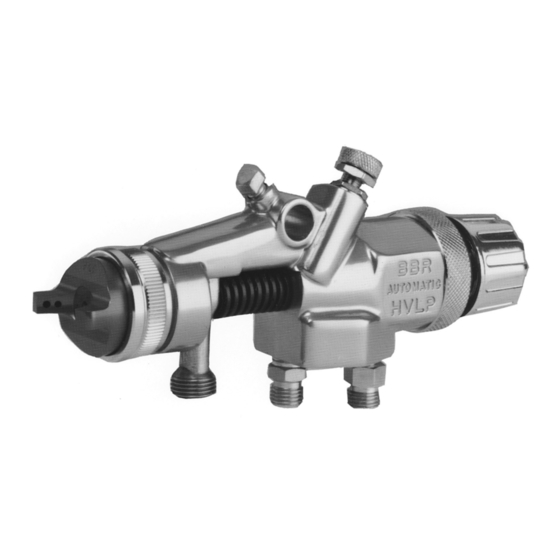

Ideal for industrial coatings, the MACH 1AR HVLP "High
Volume, Low Pressure" Automatic Spray Gun
incorporates a stainless steel fluid inlet, fluid nozzle,
and fluid needle for spraying a wide variety of
conventional and waterborne coatings. It is also
pneumatically activated for application with
reciprocating, rotary, spindle machines, and in
stationary gun set-ups. The MACH 1AR Auto Gun
features a ratchet fluid needle valve adjustment where
repeatable fluid flows are required. Exceptionally
rugged in construction, this gun is built to stand up
under hard continuous use. However, like any other
NOTE
IMPORTANT REGULATORY NOTE regarding the use of this product
appears on page 11.
77-2672-R7.0 (8/2017)
AUTOMATIC AIR SPRAY GUNS
(WITH RATCHET NEEDLE ADJUSTMENT)
6913-XXXX-X
fine precision instrument, it's most efficient operation
depends on a knowledge of its construction, operation,
and maintenance.
Properly handled and cared for, it will produce
beautiful, uniform finishing results long after other
spray guns have worn out.
!
Servicing the spray gun while pressurized could result in
components or material exiting the spray gun at high
velocity, possibly resulting in bodily injury or damage to the
spray gun. Before removing any components from the spray
gun, shut off the air and material pressure.
PROP 65 WARNING
CA PROP
65
WARNING: This product contains chemicals known to the
State of California to cause cancer and birth defects or
other reproductive harm.
