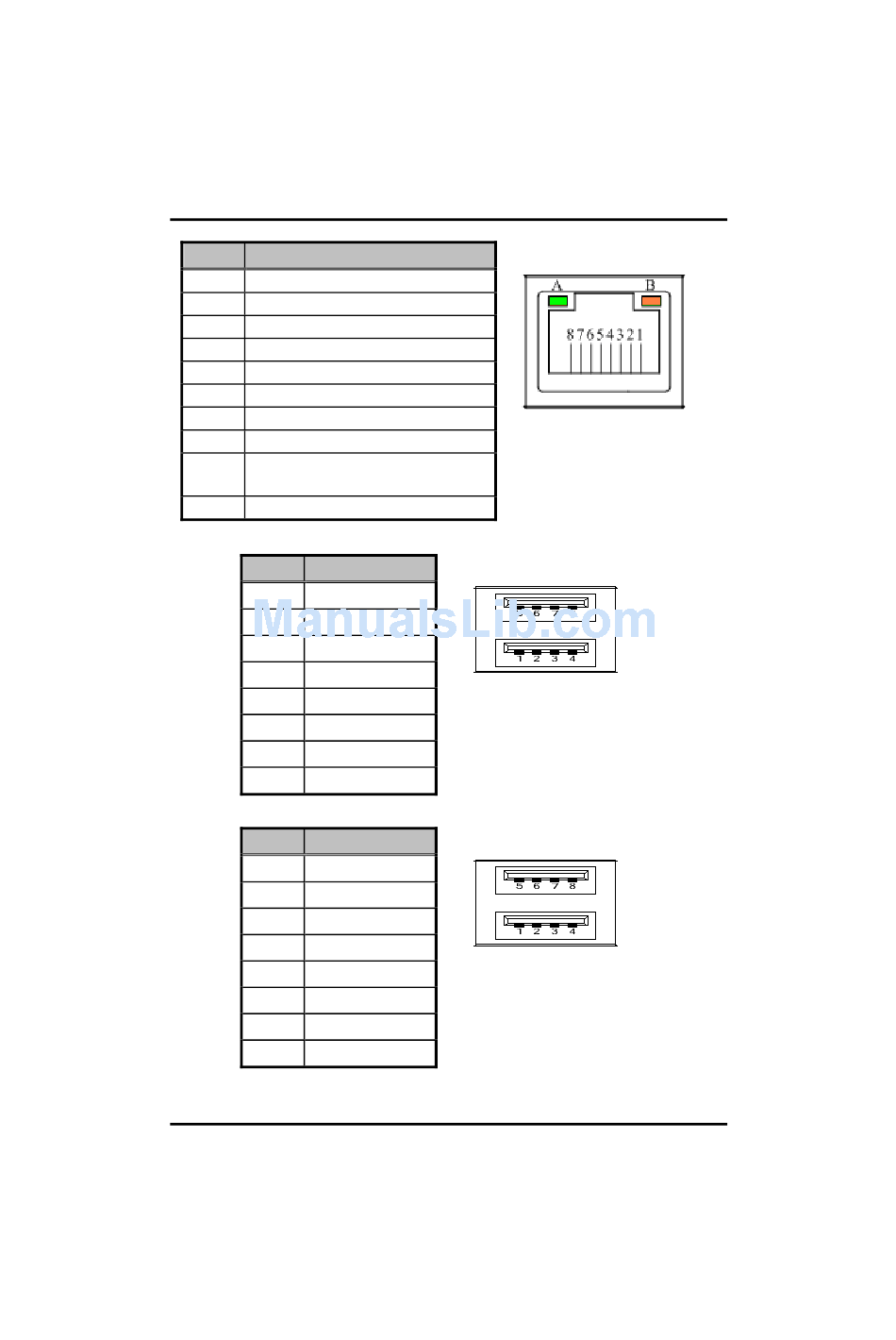

SBC86822 Series All-In-One Mini ITX Board User's Manual
Pin
MDI0+
1
2 MDI0-
MDI1+
3
MDI1-
4
5 MDI2+
MDI2-
6
MDI3+
7
8 MDI3-
100 LAN LED (Green)/ 1000 LAN
A
LED (Orange)
B Active LED (Orange)
Pin
1 +5V
2 USB D4-
3 USB D4+
4 GND
5 +5V
6 USB D5-
7 USB D5+
8 GND
Pin
1 +5V
2 USB D6-
3 USB D6+
4 GND
5 +5V
6 USB D7-
7 USB D7+
8 GND
Jumpers and Connectors
Signal
Signal
Signal
CN9A/CN12A
CN9B
CN12B
31
