SBC86822 Series All-In-One Mini ITX Board User's Manual
2.3.2

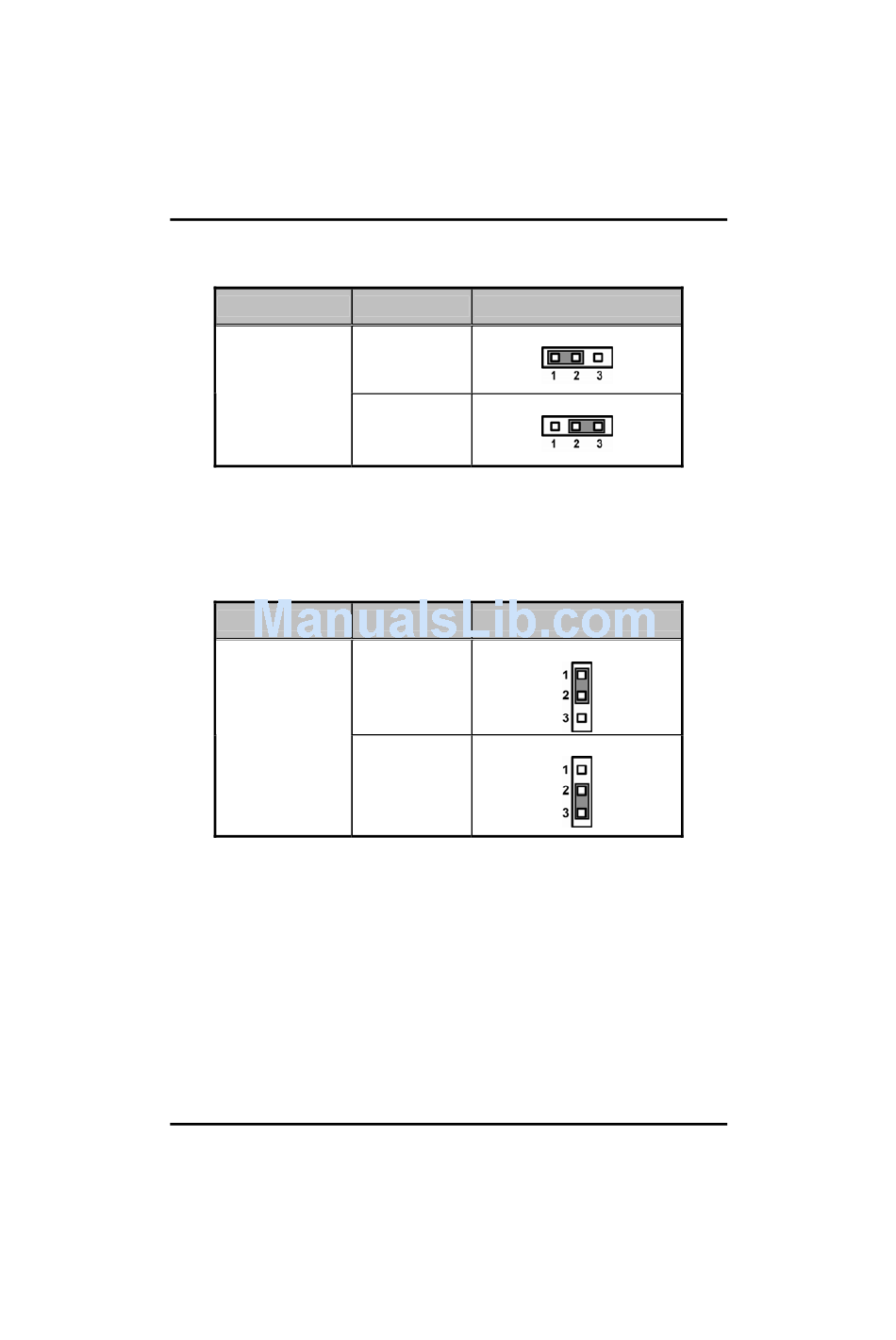

CPU Analog Voltage Select Jumper (JP4)

Use this jumper to select the CPU analog voltage.
Description
CPU Analog
Voltage Select
2.3.3 Flat Panel Connector Voltage Selection Jumper
(JP5, JP6)
The board supports +3.3V or +5V flat panel displays. Configure the
jumper JP6 to the appropriate voltage of the flat panel (LVDS1).
Description
Flat Panel
Connector
(LVDS1) Voltage
Selection
Jumpers and Connectors
Function
Dothan 1.5V
(Default)
Banias 1.8V
Function
3.3V (Default)
5V
Jumper Setting
JP4
JP4
Jumper Setting
JP6
JP6
17
