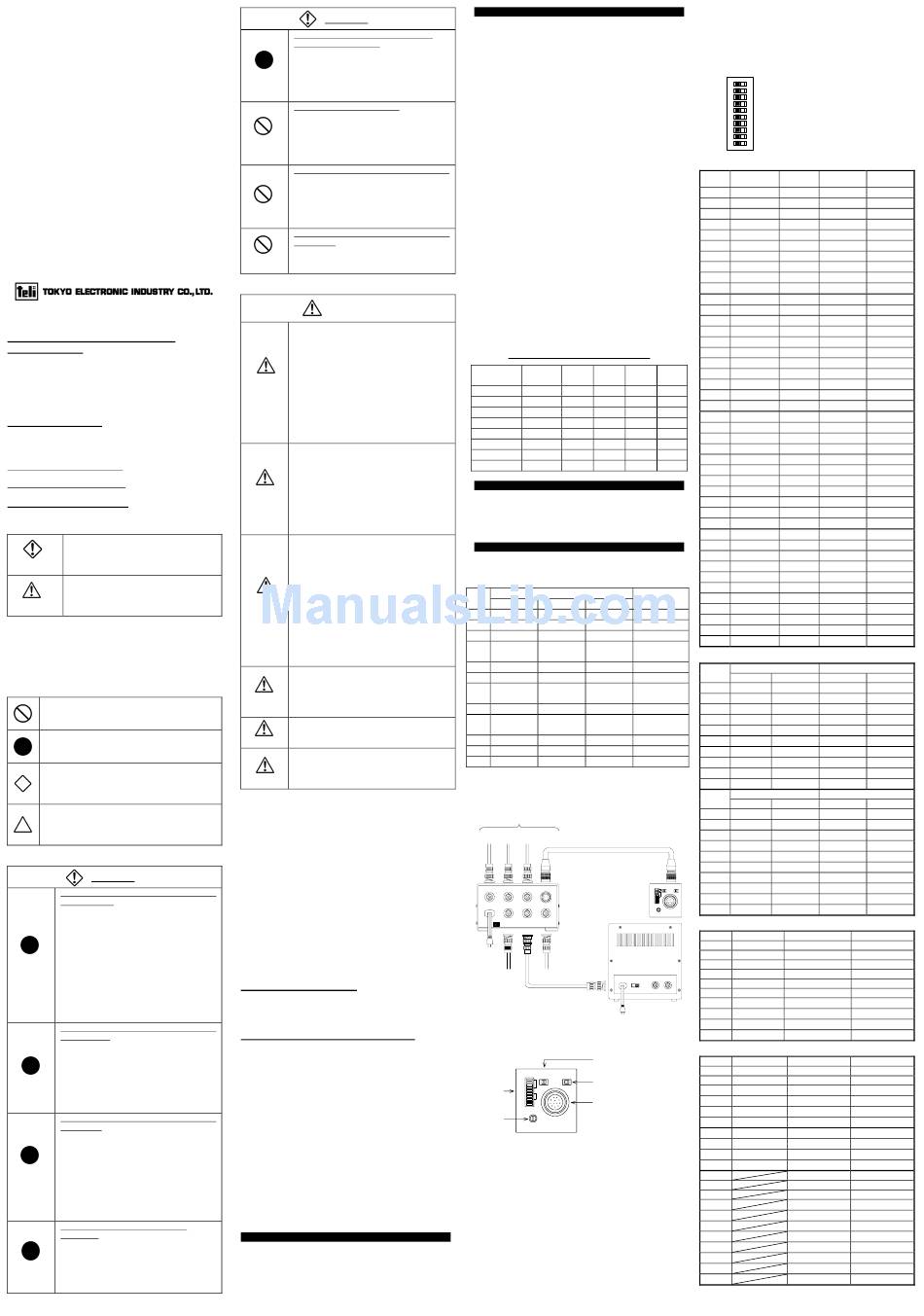

Teli CS8620i (EIA) Operation Manual

CCD Monochrome

Video Camera

Operation Manual
Model
CS8620i (EIA) CS8620Ci (CCIR)
CS8630i (EIA) CS8630Ci (CCIR)
CS8620Hi (EIA) CS8620HCi (CCIR)
CS8630H (EIA) CS8630HC (CCIR)
BEFORE USE - GENERAL SAFETY
INSTRUCTIONS
This instruction manual contains important information for the
operator (user) and/or people around him/her to avoid personal
injury, or property damage to him/her or people around him/her by
using this product correctly. Prior to use, read this operation
manual carefully to fully understand its instructions for correct
use.
OWNER'S RECORD
Please fill in the blank below the model name and product serial
number, which is found on bottom chassis of your device. Keep
this number for your record.
Model Name
Serial No.
WARNINGS & CAUTIONS
[Definition of markings]
The meaning of each mark used in this instruction manual is given
below.
This mark warns the user that improper use,
indicated with this mark, may cause death or
severe personal injuries against the user or
DANGER
people around him/her.
This mark warns the user that improper use,
indicated with this mark, may cause personal
injuries (*1) or material damages (*2) against
CAUTION
the user or people around him/her.
Notes
*1 : Personal injuries mean wounds, burns, electric shocks,
and others for which the person injured need not to be
hospitalized nor to be cared for the long term.
*2 : Material damages mean any direct or consequential
damages related to property or material loss.
This mark indicates what the user SHOULD NOT
DO. The details of things which the user should not
do are described next to this mark.
This mark indicates what the user MUST DO. The
details of things which the user must do are described
next to this mark.
This mark indicates that the user must be alert against
a possible DANGER. The details of the danger which
the user must be aware of are described next to this
mark.
This mark indicates that the user are given a CAUTION
against possible hazards. The details of the caution
which the user must be aware of are described next to
this mark.
●Handling Precautions
DANGER
If any overheating sign is observed, discontinue
use immediately.
In the event that smoke, smell, or any other
overheating sign is observed, turn its power switch
OFF immediately, and remove its camera cable
from camera connector. Do NOT try to continue to
use your camera. To do so in spite of a clear sign of
a malfunction invites a fire, an electric shock
MUST
hazard, or any other serious damage. In such case,
after confirming that there is no risk of a fire
accident, contact us or our dealer/distributor
through which you purchased this device for repair
service. To avoid hazard, do NEVER attempt to
repair it yourself.
If any malfunctioning sign is observed, discontinue
use immediately.
Do NOT try to use this device when it is
obviously malfunctioning. (Example: No images
on the monitor) In the event of a malfunction, turn
its power switch OFF immediately, and remove its
camera cable from camera connector. In such case,
MUST
contact us or our dealer/distributor through which
you purchased this device for repair service.
If any liquid gets into the device, discontinue use
immediately.
In the event that water, or any other type of
liquid gets into the body, do NOT try to continue
to use the device. To do so invites a fire or an
electric shock hazard. In such case, turn its
power switch OFF immediately, and then
MUST
remove its camera cable from camera connector.
After that, contact us or our dealer/distributor
through which you purchased this device for
repair service/technical advice.
Connection/Disconnection only AFTER
power OFF.
When you connect/disconnect camera connector,
make sure to turn power SW OFF first. This
camera is not designed for "hot-plugging". Do
MUST
NEVER make connection/disconnection while
power ON. Doing so might cause a breakdown.
DANGER
Use manufacturer-recommended peripheral
devices (option units) only.
Make sure to use option units specified in this
operation manual only. When connected with
any other non-guaranteed peripheral devices,
MUST
your camera might fail to perform its full
capacity. In the worst case, it might cause a fire
or breakdown.
Do NOT disassemble this device.
Do NOT attempt to pull apart, repair, or modify
your camera yourself. To do so might lead to a
fire or an electric shock accident. Contact us or
the dealer/distributor from which you purchased
NEVER
the device for repair/modification.
pull apart
Do NOT supply any power other than specified.
This device is designed to work only under
specified voltage. Do NOT attempt to supply
the device with power other than specified.
Supplying the device with any unspecified
power invites a fire or an electric shock hazard.
DON'T
(CS8600 series --- DC+12V)
Do NOT use the camera in a high-humidity
environment.
Do NOT place your camera near a humidifier,
or in other high-humidity environment. To do so
DON'T
might cause a fire or an electric shock accident.
●Handling Precautions
CAUTION
If the camera is operated in the electromagnetic
field, there may be cases where beat noises
(vertical, horizontal, or oblique stripes) appear in
the video output. In that case, take preventive
measures on the electromagnetic-wave
generating source so that your camera do not
CAUTION receive the interference by the
electromagnetic-wave. Take extra precautions
against electromagnetic-wave-interference if
your camera is used with a servomotor, inverter,
or other electromagnetic-wave-generating
equipment.
Avoid giving a strong shock against the camera
body. It might cause a breakdown or damage. If
your camera is used in a system where its camera
head is subjected to strong repetitive shocks, its
camera head is possible to break down. If you
CAUTION intend to use your camera in such a situation,
make sure to use an optional camera-connector
-fixing-hardware to connect the connector-plug
to the camera body.
When the camera is not in use, put a lens or a
lens-cap onto the camera head so that the image
pickup plane of CCD is protected from dust,
foreign object, or any other flaw-causing object.
If the glass plane (image pickup plane) gets dirty,
clean it with a cotton swab. When it needs to be
cleaned with a cleaner, be sure NOT to use any
CAUTION organic solvent other than ethyl alcohol. As a
countermeasure against condensation, when the
camera is moved from a warm
condition/environment to a cold one, take
appropriate precautions to prevent condensation
from forming on the camera.
Do not pull strongly the camera
cable/camera-head nor swing it. The stress from
pulling or swinging may cause damage in the
CAUTION coating of the cable, or breaks in the inside
wires.
Avoid short-circuiting signal output. Otherwise,
it may cause a malfunction.
CAUTION
Do NEVER expose its camera head to any
intensive light (such as direct sunlight).
Otherwise, its inner image pickup device might
CAUTION get damaged.
This equipment has been tested and found to comply with the
limits for a class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in
which case the user will be require to correct the interference at
his own expense.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device accept any
interference received, including interference that may cause
undesired operation.

RESTRICTION FOR USE

In the case where a malfunction of this camera (e.g. video output
cut-off) can be expected to lead to a significant accident, avoid
using this device for such system build-in use.

DISCLAIMER (LIMITED WARRANTY)

We assume no responsibility and shall be held harmless for
damage or loss incurred by the user in the following cases.
1.In the case where damage or loss is caused by fire, earthquake,
or other acts of Gods, acts by a third party, misuse by the user
deliberately or erroneously, or use under extreme operating
conditions.
2.In the case where any indirect, additional, consequential
damages (e.g. loss of expected interest, suspension of business
activities) are incurred as results of a malfunction or
non-functioning of this device, we shall be exempted from
assuming responsibility for such damages.
3.In the case where damage or loss is caused by incorrect use
which is not in line with the instructions given in this
operation manual.
4.In the case where damage or loss is caused by a malfunction
resulting from bad connection with other equipment.
5.In the case where damage or loss is caused by repair or
modification done by the user.

PRODUCT DESCRIPTION

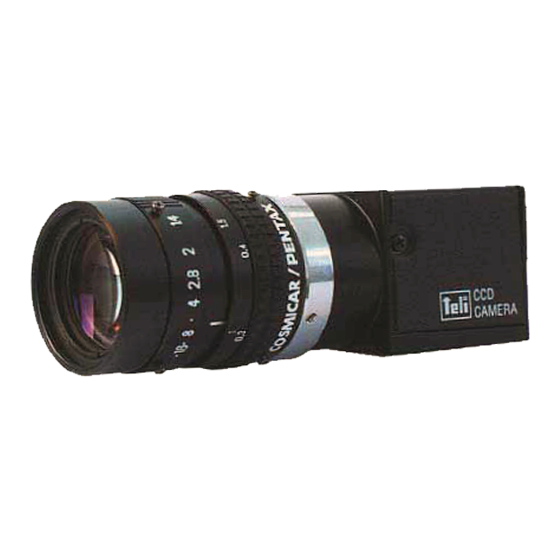

Model CS86xxi is a miniature camera series featuring its
ultra-small light-weight body. The CS86xxi camera series is
designed mainly for factory automation, machine vision, and
image measurement application.

FEATURES

(1) High resolution
The 380,000 pixel CCD realizes the horizontal resolution of
570TV lines.
High-density images with minimum moire-fringes & beatings
are obtained. (CCIR: 440,000 pixels, 560TV lines)
(2) Ultra-compact & light-weight body
The camera features its ultra-small light-weight body. Its super-
small body will free you from much of your space restriction
problem. The camera is driven by DC12V.
(3) Electronic shutter
The built-in electronic shutter allows this camera to
capture a fast-moving object clearly and sharply.
(4) AGC (Automatic Gain Control)
This series is equipped with AGC function. With the
AGC, the camera obtains optimal images constantly
even when the amount of incoming light fluctuates.
(5) Restart/Reset
When the restart/reset function set ON, the camera
captures images at any timing given by R.R. pulse
input (VD input).
Remark : CS8620Hi, CS8620HCi are possible for a restart/reset
operation only at the field integration mode.
(6) SS (Special shutter) & RTS (Random trigger shutter)
This camera is fitted with special shutter and random trigger
shutter function, which allows the camera to capture images
cued by external trigger input.
(7) Near-infrared region sensitivity
(Model -----H type only)
The CCD integrated in the model CS8620Hi,
CS8620HCi,CS8630H, and CS8630HC has a near-
infrared-region sensitivity. These models capture clear
images even under near-IR shooting condition.
CS8600i Series Spec Lookup Table
Image TV Near SS /
Model name
size format IR RTS
CS8620i 1/2 type EIA
× ○
CS8620Hi 1/2 type EIA
○ ○
CS8630i 1/3 type EIA
× ○
CS8630H 1/3 type EIA
○ ○
1/2 type
CS8620Ci CCIR
× ○
1/2 type
CS8620HCi CCIR
○ ○
1/3 type
CS8630Ci CCIR × ○
1/3 type
CS8630HC CCIR ○ ○

CONFIGURATION

(1) Camera body ････････････････････ 1
(2) Accessory
Operation Manual（English） ････ 1
Operation Manual（Japanese） ･･･ 1

CONNECTION / MODE / REAR-PANEL SWITCH

(1) Connector Pin Assignment
Compatible plug: HR10A-10P-12S
(Manufactured by HIROSE ELEC.)
Pin External sync.
Internal sync.
No. HD VD VS/SYNC R.R.
1 GND GND GND
2 +12V +12V +12V
3 GND GND GND
VIDEO VIDEO VIDEO
4 VIDEO OUT
OUT OUT OUT
5 GND GND GND
6 HD IN ----- HD IN HD OUT*
VS/SYNC
7 VD IN R.R. IN VD OUT*
IN
8 GND GND GND
CLOCK CLOCK CLOCK
9
OUT OUT OUT
10 WEN OUT WEN OUT ----- WEN OUT
11 TRIG IN TRIG IN TRIG IN TRIG IN
12 GND GND GND
* HD VD output is available via inner SW selection under internal
sync operation.
(2) Connection Example
To be connected if necessary
VD/VS/SYNC/R.R
TR IGGER HD
(Either one)
Camera Cable (option)
CCD Camera
TRIGGER HD VD CAMERA
CS86xxi Series
(Rear Panel)
AC100V IN
WEN VIDEO OUT CLOCK OUT
Camera Adapter
CA130C
SERIAL No.
TOKYO ELECTRONIC INDUSTRY CO.,LTD.
(Rear Panel)
AC100V
50/60Hz
WEN Clock Output
HIGH-75Ω
Video Cable
Video Monitor
AC100V50/60Hz
(Rear Panel)
* Make sure that video output is properly 75-ohm terminated.

(3) Rear SW, Potentiometer, Connector

③
HIGH 75Ω IN OUT
HD/VD HD/VD
④
SHUT
②
FR/FL
TRIG
⑤
γ
M/AGC CS86xxi Series
Rear View
①
VIDEO OUT/
M GAIN
DC IN/SYNC
① Gain adjustment potentiometer
This manual gain adjuster is enabled under Manual Gain
Control setting (Gain selection SW: MGC). Turned
clockwise, video amplification gain increases.
② Mode selection SW
This is the camera mode selection switch.
③ 75-ohm termination ON/OFF SW
This SW switches external-sync input terminal 75-ohm
termination ON/OFF. When set in right side, the
termination is 75-ohm. When set in left, it is 10k-ohm.
The initial factory setting is in OFF position.
④ HD VD IN/OUT selection SW
This is the HD VD sync-signal IN/OUT selection switch.
The status is HD VD IN when set in left side, HD VD OUT
when in right. The initial setting is EXT.
⑤ DC IN/SYNC
This connector is for DC power input, external sync signal
input, and video output, to be connected with a power supply,
sync-signal generator, and video monitor.
(4) DIP SW
Using the rear-panel DIP switch, you can
1
O
2 N
make various mode setting.
3
Each numbered switch is OFF in LEFT
4
5
position, and ON in RIGHT position.
6
7
8
9
0
[Shutter-speed Setting]
SHUTTER
No. 1/125
OFF
1 X X
2 X X
3 OFF ON
4 OFF OFF
5 OFF OFF
6 OFF OFF
7 X X
8 X X
9 X X
0 X X
No. 1/1,000 1/2,000
1 X X
2 X X
3 OFF ON
4 OFF OFF
5 ON ON
6 OFF OFF
R.R. 7 X X
8 X X
○
9 X X
○
0 X X
○
No. Flicker-less 1FLD
○
1 X X
○
2 X X
○
3 OFF ON
○
4 OFF OFF
○
5 OFF OFF
6 ON ON
7 X X
8 X X
9 X X
0 X X
No. 6FLD 8FLD
1 X X
2 X X
3 OFF ON
4 OFF OFF
5 ON ON
6 ON ON
7 X X
GND
8 X X
+12V
9 X X
GND
0 X X
[Mode Setting]
GND
ＧＡＩＮ
No.
MGC AGC
1
X X
2
X X
GND
3
X X
CLOCK
4
X X
OUT
5 X X
6
X X
7
X X
GND 8
X X
9
X X
0 OFF ON
Integration Mode
No.
Frame Field
1
X X
2
X X
3
X X
4
X X
5
X X
6
X X
7
X X
8 OFF ON
HIGH 75Ω IN OUT
HD/VD HD/VD
MODE
SHUT
9
X X
TRIG
FR/FL
γ
M/AGC
0
X X
VIDEO OUT/
M GAIN
DC IN/SYNC

[Restart Reset / Special Shutter]

No. Normal Restart Reset
1 OFF ON
2 OFF ON
3 OFF ON
4 OFF ON
VIDEO IN VIDEO OUT
5 OFF ON
6 OFF ON
7
X X
8
X X
9
X X
0 X X
[Random trigger shutter]
No. Normal Mode 1,2
1 OFF OFF
2 OFF OFF
3 OFF
X
4 OFF
X
5 OFF X
6 OFF
X
7
X X
8
X X
9
X X
0 X X
No. Mode 5,6
1 OFF
2 OFF
3
X
4
X
5
X
6
X
7
X
8
X
9
X
0 X
X : Don't care
1/250 1/500
X X
X X
OFF ON
ON ON
OFF OFF
OFF OFF
X X
X X
X X
X X
1/4,000 1/10,000
X X
X X
OFF ON
ON ON
ON ON
OFF OFF
X X
X X
X X
X X
2FLD 4FLD
X X
X X
OFF ON
ON ON
OFF OFF
ON ON
X X
X X
X X
X X
Pulse-width
10FLD
X X
X X
OFF ON
ON ON
ON ON
ON ON
X X
X X
X X
X X
TRIGGER Polarity
POSI NEGA
X X
X X
X X
X X
X X
X X
OFF ON
X X
X X
X X
Gamma Correction
1.0 0.45
X X
X X
X X
X X
X X
X X
X X
X X
OFF ON
X X
Special Shutter
ON
ON
ON
ON
ON
ON
X
X
X
X
Mode 3,4
OFF
ON
X
X
X
X
X
X
X
X
Mode 7,8
ON
OFF
X
X
X
X
X
X
X
X
D3002864 A
