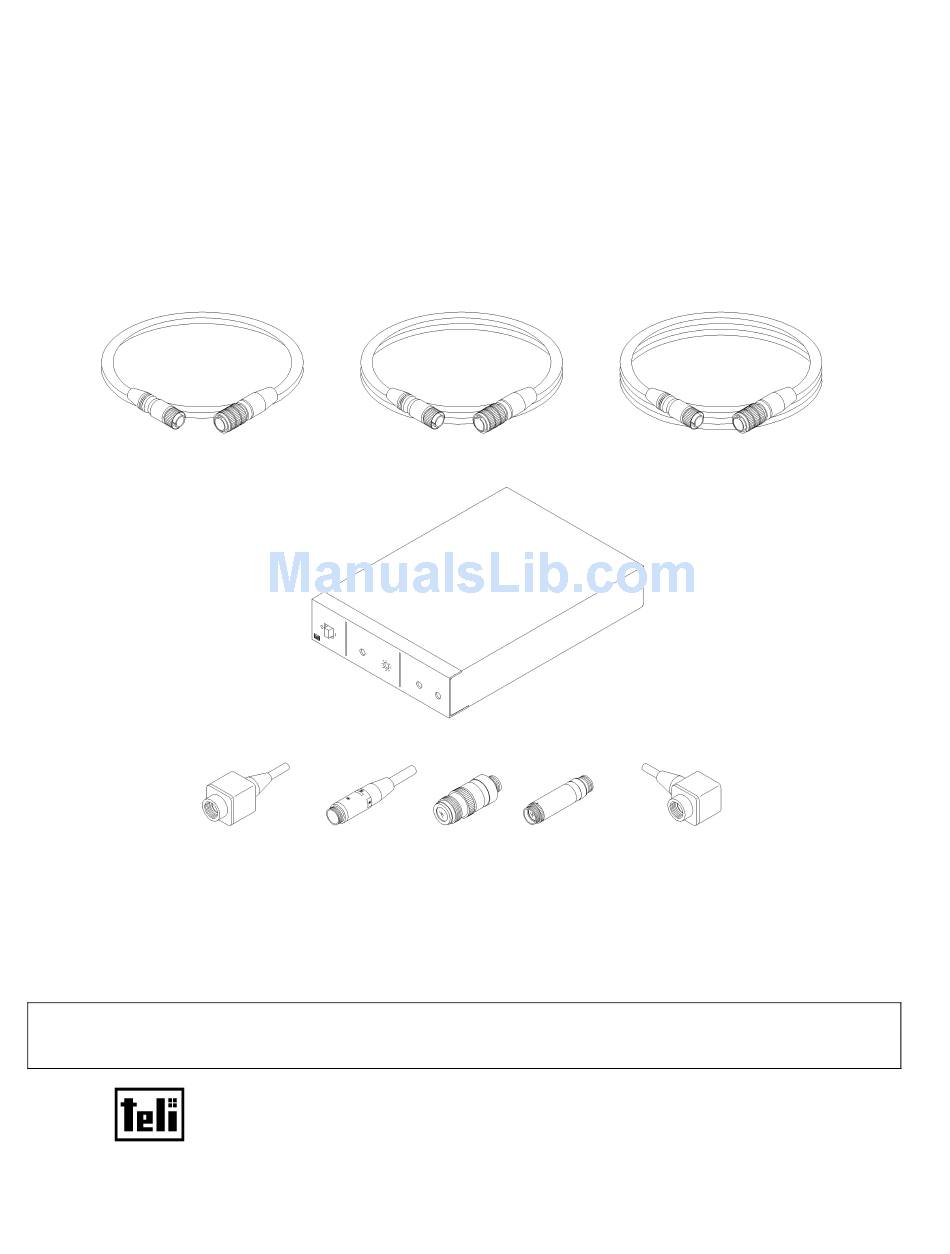

CCD B/W CAMERA
CS4000B/BC SERIES
OPERATION MANUAL
Before using your CCD camera, please read this user's manual to become familiar with the correct usage
procedures. After reading, keep this manual in a safe place for future reference.
TOKYO ELECTRONIC INDUSTRY CO.,LTD.
This user's manual is manufactured from recycled paper.
D4119853A
Advertisement
Table of Contents
Related Manuals for Teli CS400B series
Summary of Contents for Teli CS400B series
- Page 1 CCD B/W CAMERA CS4000B/BC SERIES OPERATION MANUAL Before using your CCD camera, please read this user's manual to become familiar with the correct usage procedures. After reading, keep this manual in a safe place for future reference. TOKYO ELECTRONIC INDUSTRY CO.,LTD. This user's manual is manufactured from recycled paper.
-
Page 2: Important Safety Precautions
Important Safety Precautions The main unit and the user's manual of the product provide information on important contents that will help prevent injury to those using the product and others, prevent property damage, and ensure safe use of the product. Please make yourself familiar with this information before using your CCD camera. - Page 3 ●Handling Precautions (Camera Control Unit) DANGER If any overheating sign is observed, discontinue the use immediately. In the event that smoke, smell, or any other overheating sign is observed, turn its power switch OFF immediately, and remove your plug from outlet. Do NOT try to continue to use this device.
- Page 4 Do NOT supply any power other than specified. This device is designed to work only under specified voltage. Do NOT attempt to supply the device with power other than specified. Supplying Avoid the device with unspecified power invites a fire or an electric shock hazard. ●Handling Precautions DANGER Do NOT place the device unstably.
- Page 5 ●Handling Precautions CAUTION Unplug the power-plug when the your device is not in use. For safety, make sure to unplug the power-plug before you give your device a cleanup, or when it is not used. Keeping the power-cord connected might invite Unplug a fire or an electric shock hazard.
- Page 6 ●Handling Precautions (Camera-head) DANGER Do NOT disassemble this device. Do NOT attempt to pull apart, repair, or modify the device on your own. Todo so might lead to a fire or an electric shock accident. Contact us or the NEVER pull dealer/distributor from which you purchased the device for repair/modification.
- Page 7 RESTRICTION FOR USE 1. Avoid irregular signal interface. Do not attempt irregular signal interface other than specified. Under signal interface other than recommended/specified in this instruction manual, the device might fail to exert the maximum performance. In much worse case, if you continue to use your device under incorrect signal interface, part(s) of inner circuits might burn down.
- Page 8 Avoid liquid Avoid placing the camera where it is likely to be splashed with water or any other fluids. Operating the camera with its inner parts/circuits in an wet condition might cause a damage or an electric shock accident. About camera cable The connector of the camera cable is in “screw-coupling”...
-
Page 9: Table Of Contents
CONTENTS Page 1. FEATURES 2. PRECAUTION 3. CAMERA HEAD&CAMARA CABLE 4. CONSTITUTION 5. SPECIFICATION 6. CONNECTIONS 7. OPERATION 8. TROUBLE-SHOOTING GUIDE 9. EXTERNAL VIEW SPECTRUM RESPONSE CAMERA CONTROL UNIT CAMERA HEAD CAMERA CABLE HOW TO FIXED A LENS TO SQURE TYPE CAMERA HEAD CAMERA MOUNTING KIT(OPTION) D4119853A... -
Page 10: Features
1. FEATURES (1) Compact and light weight camera head. (2) Equipped with AGC (Automatic Gain Control) which allows wide dynamic range from bright to dark subjects. (3) Equipped with RTS (Random Trigger Shutter) which allows free timing capture with stable SYNC. (4) Available external SYNC (HD/VD, VS, SYNC) operation. - Page 11 ３．CAMERA HEAD $ CAMERA CABLE The constitution (the combinations of the camera head and the camera cable) is as following Camera Head Appearance of the Camera cable Type name Lens mount Appearance Size camera head 3m(CPRC4000B-03) 5m(CPRC4000B-05) CSH4200B Type M15.5 P0.5 Round type φ17mm Extension7m...
-
Page 12: Constitution
４．CONSTITUTION Camera control unit Accessories Operation manual Option ① Each camera head ② Camera cable：CPRC4000B-03(3m),-05(5m) ③ Extension camera cable：CPC4000B-07J(7m) ④ Power adapter：CA130C-01 ⑤ Power cable（Both ends 12P connector） ：3m, 5m, 10m ⑥ Cable for power supply（VIDEO,HD,VD，SYNC，WENOUT、TRIGINPUT） ⑦ Lens ⑧ For DC INPUT CONNECTOR ⑨... - Page 13 (CSH4401B□-□□) 4.75×5.55μm ･Active image area (CSH4200B,CSH4200BC) 6.5×4.85mm(1/2Type) (CSH4301B､CSH4310B□-□□) 4.8×3.6mm(1/3Type) (CSH4301BC､CSH4310BC□-□□) (CSH4401B□- □□) 3.65×2.74mm(1/4Type) (3) Number of scanning lines (EIA)/ (CCIR) 525 lines / 625 lines (4) Scanning system 2 : 1 interlace (5) Sync .System Internal/External automatic switch-over (6) Aspect ratio 4 : 3 (7) Illumination ･Standard...
- Page 14 ･Vertical drive(V) (EIA) /(CCIR) 59.94Hz±100ppm/ 50.0Hz±100ppm (18) External sync input HD･VD/SYNC/ VS ･Input level HD･VD,SYNC 2∼6V(p-p) 1.0V(p-p) (Sync:0.3V(p-p)) ･Input impedance High/75Ω ､Selectable by rear SW setting ･Scanning system 2:1 interlace Negative ･Polarity ･Frequency (EIA) =15.734kHz±1%, f =2fH/525 (CCIR) =15.625kHz±1%, f =2fH/625 ･Scanning lines (EIA) /(CCIR)
- Page 15 ･Frequency (EIA) :15.334kHz±100ppm, f :2fH/525 (CCIR ) :15.625kHz±100ppm, f :2fH/625 ･Scanning line (EIA) /(CCIR) 525line/ 625line ② CLOCK ･Output level 2.0±0.3V(p-p)(on no-load condition) ･Frequency (EIA) 14.31818MHz±100ppm(on no-load condition) (CCIR ) 14.18750MHz±100ppm(on no-load condition) On operate random shutter mode, WEN put out from the fall time of VD ③WEN to the fall time of VD under put out video signal..
-
Page 16: Specification
(24) Restart Reset Restart Reset function available via rear DIP SW selection. (25) Lens Mount Special Mount, by each head specification. (26) Mass Camera control unit: about 350g (27) GND Circuit GND---Chassis: Electrically continuous (28) EMI Conforms to EN50081-2 (29) Connector Pin Assignment ･Power/Video connector ・Compatible plug :HR10A-10P-12S(Manufactured HIROSE ELEC) External sync... -
Page 17: Connections
6．CONNECTIONS When install the CS4000B series camera to your system, you have to connect between Equipment. (1)Typical connection(One sample) D4119853A... - Page 18 (2) Camera control unit rear panel connector ①｢CAMERA｣ connector This connector is used to connect the camera head and the camera control unit With the camera cable. When inserting the connector, make sure to set the position of the coupling-guide Properly, and screw it up tightly, If it is loose, it may cause noise.
- Page 19 ･Rotary switch (When set the toggle switch to High/OFF) ０：Ｓｈｕｔｔｅｒ ｏｆｆ １：１／１２５s ２：１／２５０s ３：１／５００s ４：１／１，０００s ５：１／２，０００s ６：１／４，０００s ７：１／１０，０００s (When set the toggle switch to ＬＯＷ／Ｆ．Ｌ) ０：ＦＬ（ｆｌｉｃｋｅｒｌｅｓｓ） １：１／６０（ＣＣＩＲ：１／５０） ２：２ＦＬＤ ３：４ＦＬＤ ４：６ＦＬＤ ５：８ＦＬＤ ６：１０ＦＬＤ ７：① setting of pulse width ② Rear panel switch SMD1:ON, SMD2:ON Restart Reset operation/ special shutter ･...
-
Page 20: Operation
(2) Rear panel ① 「ＳＥＬＥＣＴ」 ：This Switch set every kind of setting. 1：SMD１（Setting about Shutter mode） 2：SMD2（Setting about Shutter mode） 3：TRIG ON：Negative OFF：Positive 4：Ccd integration mode ON：FIELD OFF：FLAME 5：Gamma(γ) ON：0.45 OFF：1.0 ６：Open SMD1 SMD2 Operation Restart･Reset/Special shutter: Toggle switch set LOW/F.L Mode 7, Mode 8 Mode 3, Mode 4... -
Page 21: Trouble-Shooting Guide
8.TROUBLE-SHOOTING GUIDE What may initially appear to be trouble is not always a real problem. Make sure first according to the following table before requesting service. Symptoms Check points Power: No power is supplied * Have you connected power cord correctly ? *Check whether the iris ring has accidentally moved out of the Halation or black-out occurs normal position. - Page 22 CAMERA CONTROL UNIT OUTLINE DRAWING D4119853A...
- Page 23 CS4000B/BC CAMERA HEAD OUTLINE DRAWING CSH4200B, CSH4200BC CSH4300B, CSH4300BC CSH4310BW/X/Y/Z/X-□□ CSH4310BV-□□ CSH4310CW/X/Y/Z-□□ CSH4310BCV-□□ D4119853A...
- Page 24 CSH4301B, CSH4301BC CSH4410BW/X/Y/Z-□□ CPRC4000B-03/05 Connector 1 Connector 2 HR25-8TP-14S HR25-9TP-16P Cable length 3/5 m CPC4000B-07J Connector1 Connector 2 HR25-9TJ-16S HR25-9TP-16P Cable length 7m D4119853A...
- Page 25 [HOW to fix a lens to this square type head] To prevent loosing of the lens from the camera head because of some vibration or Shock, fix the lens to this camera head with tightly. The screw is provided with This camera head.
- Page 26 NOTE D4119853A...
- Page 27 D4119853A...
- Page 28 TOKYO ELECTRONIC INDUSTRY CO.,LTD. TOKYO ELECTRONIC INDUSTRY CO.,LTD. TOKYO ELECTRONIC INDUSTRY CO.,LTD. TOKYO ELECTRONIC INDUSTRY CO.,LTD. Sales Department Head Office: 7-1, Asahigaoka 4-chome, Hino city, Tokyo 191-0065, Japan. Phone:042(589)8771 Fax:042(589)8774 Kansai Office: 1-2, Sakaemachi-dori 2-chome, Chuo-ku, Kobe city 650-0023, Japan. Phone:078(321)3461 Fax:078(321)3463 Fukuoka Office:...
