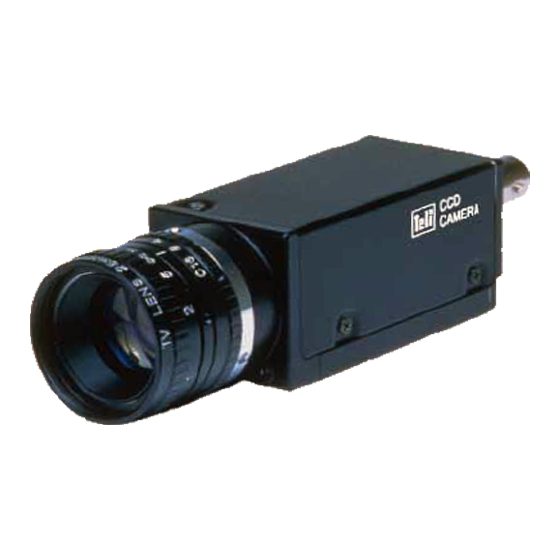

Teli CS8420Ci Operation Manual

CCD Monochrome
Video Camera
CS8420Ci(CCIR)
Operation Manual
CONTENTS
1.FEATURES
････････････････････････････
2.PRRECAUTION
･････････････････････････
3.CONTROLS AND ADJUSTMENT
4.CONNECTIONS
････････････････････････
5.OPERATION
･･･････････････････････････
6.SUPPLEMENTAL INFORMATION
7.TROUBLE-SHOOTING GUIDE
8.SPECIFICATIONS
･･････････････････････
9.CONSTITUTION
････････････････････････
10.HOW TO FIX CAMERA
11.APPEARANCES
････････････････････････
12.MAINTENANCE
････････････････････････
For customer Use:
Enter below the Serial No. which is located on bottom chassis
of the camera.
Retain this information for future reference,
Model No. CS8420Ci
Serial No.
TOKYO ELECTRONIC INDUSTRY CO. , LTD. TOKYO ELECTRONIC INDUSTRY CO. , LTD.
TOKYO ELECTRONIC INDUSTRY CO. , LTD. TOKYO ELECTRONIC INDUSTRY CO. , LTD.
2
2
3
･･････････
6
8
9
･････････
10
･･･････････
10
12
13
･･････････････････
14
15
To prevent electric shock, do not use the polarized plug of the AC
Power adapter with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade exposure.
When the camera is used within an electromagnetic field, beat
interference(vertical, horizontal or diagonal stripes) may be
created in the video output. If this occurs, take measures on the
source of the electromagnetic waves to prevent the emissions
from affecting the video output.
Such measures are particularly necessary on systems with servo
motors, inverters and other equipment that tends to generate
electromagnetic waves.
Do not subject the camera to strong shocks, as this may result in
failure or breakage.
When the camera is used on system which subject the camera
connector to strong shocks, the camera connector may suffer
damage. If the camera is used on such systems, the connector
plug should be fastened to the camera with the optional camera
connector bracket.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
This equipment should be used with DC12V only.
Do not use any other power source.
INFORMATION
This equipment generates and uses radio frequency energy and if not installed
and used properly, that is, in strict accordance with the manufacture's
instructions, may cause interference to radio and television reception. If does
so, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
･Reorient the receiving antenna;
･Relocate this equipment with respect to the receiver;
･Move this equipment away from the receiver;
CAUTION
WARNING
１
