B/W CCD Camera
Model CS8560D

Specifications

(Ver.1.0)
Contents
1. Product Description ························· 6
2. Features·············································· 6
3. Configuration ···································· 7
4. Option Unit········································ 7
5. Operation Mode································ 7
6. Specifications····································· 24
7. Timing Chart····································· 32
8. External View Drawing ··················· 40
D4130891A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS8560D and is the answer not in the manual?

Questions and answers

Related Manuals for Teli CS8560D

Summary of Contents for Teli CS8560D

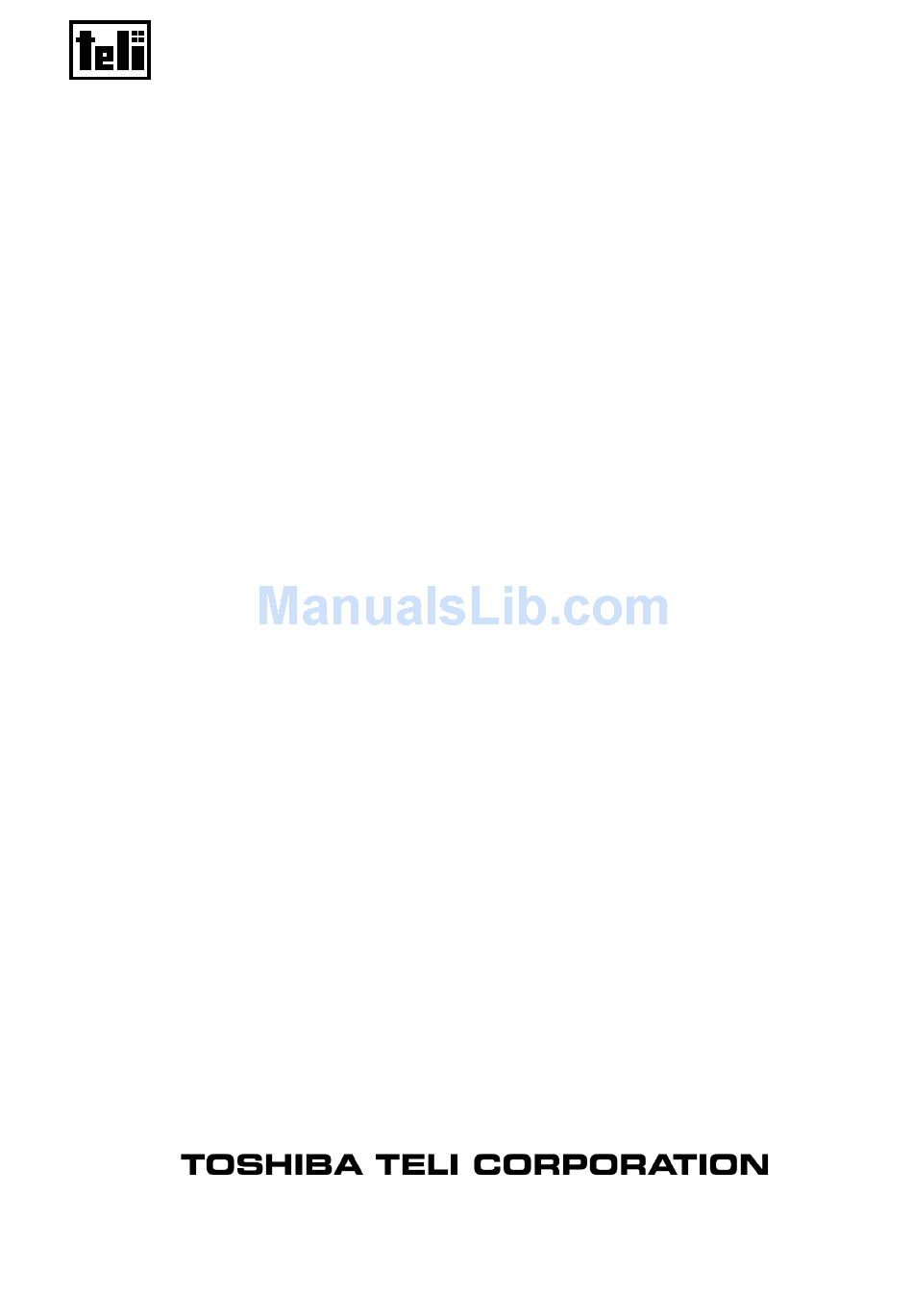

  • Page 1: Table Of Contents

    B/W CCD Camera Model CS8560D Specifications (Ver.1.0) Contents 1. Product Description ························· 6 2. Features·············································· 6 3. Configuration ···································· 7 4. Option Unit········································ 7 5. Operation Mode································ 7 6. Specifications····································· 24 7. Timing Chart····································· 32 8. External View Drawing ··················· 40...

  • Page 2: Important Safety Precautions

    Important Safety Precautions BEFORE USE - GENERAL SAFETY INSTRUCTIONS This specifications contains important information for the operator (user) and/or people in the vicinity to avoid personal injury, or property damage. • Prior to use, read this specifications carefully to fully understand its instructions for correct use. •...
  • Page 3 Don’t place things or materials on the unit. Ingress of foreign materials such as metallic things and liquid into the unit may cause a fire or an electric shock. Do not put the product in an unstable, slanting and/or vibrated place. Drop and/or fail of the product may cause injury.

  • Page 4: Restriction For Use

    DISCLAIMER (LIMITED WARRANTY) We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the user in any of the following cases; Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental;...
  • Page 5 CAUTIONS ON USE Carefully handle the units. Do not drop, or give a strong shock or vibration to the camera. This may cause problems. Treat the camera cables carefully to prevent cable problems, such as cable breakdown and loosened connections. Operating ambient temperature and humidity.

  • Page 6: Product Description

    1. PRODUCT DESCRIPTION Model CS8560D is an integrated type B/W CCD camera with a VGA format all-pixel-data readout CCD. This model has twice greater driving frequency of conventional cameras to achieve fast-speed data-processing. The model is suited for high-speed, high-resolution image processing use.

  • Page 7: Configuration

    3. CONFIGURATION (1) Camera body··································································· 1 (2) Accessory Operation Manual(Japanese) ··········································· 1 Operation Manual(English) ············································· 1 4. OPTION UNIT (1) DC SYNC IN cable ············ Model name : CPRC3700 [2m,3m,5m,10m] (2) Camera adapter ·················· Model name : CA170 (3) Camera-mounting kit ··········· Model name : CPT8560 (4) Camera-connector fixing hardware *Contact your dealer / distributor for details of option units.
  • Page 8 (4) Shutter mode selection (Camera rear-panel DIP SW or TRIG signal IN [Automatic]) Switches shutter mode (4-1) NOR mode ---------- Normal electronic shutter (4-2) RTS mode----------- Random trigger shutter (a)Non-reset mode (Under internal sync / external sync --- Consecutive VD IN) Exposure starts at the timing of TRIG signal IN.
  • Page 9 (b) Non-reset mode (Under external sync --- Single VD IN) After TRIG IN and exposure, the camera goes into standby until next ext. VD IN. □1/60s Non-interlace TRIG IN (Positive) EXT VD CCD Exposure VIDEO OUT In sync with ext.VD during standby (No video output) WEN OUT (Standard)
  • Page 10 (c)V-reset mode (Under internal sync / external sync --- No VD IN) Exposure starts at the timing of TRIG signal IN. After each exposure is completed, the camera outputs video immediately by resetting VD. (HD is not reset) □1/60s Non-interlace TRIG IN (Positive) CCD Exposure...
  • Page 11 □1/120s 2:1 Interlace Irrespective of TRIG IN phase, the camera always outputs ODD field image. TRIG IN (Positive) CCD Exposure image VIDEO OUT VD,V-SYNC pause during standby WEN OUT (Standard) WEN OUT [Option] Normal shutter (4-3) MULTIPLE SHUTTER mode Multiple shutter operation is available by providing TRIG IN more than one time before ext.
  • Page 12 RTS TRIG IN notes 1/60s Non-interlace INT VD INT HD VIDEO OUT WEN OUT (Standard) 1/120s Interlace ODD Field INT VD INT HD VIDEO OUT WEN OUT (Standard) TRIG invalid period 1/120s Interlace EVEN Field INT VD INT HD VIDEO OUT WEN OUT (Standard) TRIG invalid period...
  • Page 13 (5-4) Restart / Reset The restart / reset function is available with the ext.VD signal. You can get an arbitrary slower shutter speed than normal shutter and random trigger shutter. Here are some notes; The shutter speed (exposure time) is determined by ext. VD signal interval. This function is enabled when the rear-panel shutter speed DIP SW is OFF.
  • Page 14 (5) Partial-scan mode selection (Camera rear-panel DIP SW) Switches partial-scan mode Note: Sometimes phenomenon called as “whiteout” occurs at the top of the screen when there is strong incident light entering in the wide area of a CCD, however, this is not a malfunction.
  • Page 15 □1/120s 2:1 Interlace Under 1/120s interlace mode, only the center portion of 207H out of the total effective lines 485H (excluding BLK time) is read out. Available both under external / internal mode. ODD Field 103H 66.5H EVEN Field 72.5H 104H ■Under normal shutter (Electronic shutter OFF) Notes: * Under ext.
  • Page 16 ■Under other shutter modes VIDEO OUT V BLK (Include High-speed transfer) WEN OUT (Standard) WEN OUT [Option] VIDEO OUT 20.5H V BLK (Include High-speed WEN OUT transfer) (Standard) 8.5H WEN OUT [Option] 9.5H ODD image 103H VIDEO output High- time speed transfer EVEN image...
  • Page 17 (5-2)1/4 Partial-scan (Rear-panel SW: #8-ON, #9-ON) --- Screen center 1/4 readout □1/60s Non-interlace Under 1/60s non-interlace mode, only the center portion of 81H out of the total effective lines 494H (excluding BLK time) is read out. Available both under external / internal mode.
  • Page 18 □1/120s 2:1 Interlace Under 1/120s interlace mode, only the center portion of 61H out of the total effective lines 485H (excluding BLK time) is read out. Available both under external / internal mode. ODD Field EVEN Field ■Under normal shutter (Electronic shutter OFF) Notes: * Under ext.
  • Page 19 ■Under other shutter modes VIDEO OUT V BLK (Include High- speed transfer) WEN OUT (Standard) WEN OUT [Option] VIDEO OUT 23.5H V BLK (Include High- speed transfer) WEN OUT (Standard) 8.5H WEN OUT [Option] 9.5H ODD image Video output High time -speed transfer...
  • Page 20 (5-3) Programmable partial [Option] By designating the high-speed transfer portion with external PARTIAL signal input, the camera read out only the portion of CCD area necessary for your application. This is available under ext. sync. EXT VD EXT HD PARTIAL PULSE VIDEO OUT (Conditions) The starting point of external partial signal is [...
  • Page 21 □1/60s Non-interlace ＯＢ ２ライン The timing is as follows; EXT.VD VIDEO OUT (Normal scan) WEN OUT (Standard) Partial Pulse VIDEO OUT (Partial scan) V BLK WEN OUT (Standard) WEN OUT (Normal shutter mode) [Option] WEN OUT (Other shutter mode) [Option] High-speed transfer Normal- speed...
  • Page 22 □1/120s 2:1 Interlace, ODD field ＯＢ ２ライン The timing is as follows; ODD Feild EXT.VD VIDEO OUT (Normal scan) V BLK WEN OUT (Standard) Partial Pulse VIDEO OUT (Partil scan) V BLK WEN OUT (Standard) WEN OUT (Normal shutter mode) [Option] WEN OUT (Other shutter mode) [Option]...
  • Page 23 □1/120s 2:1 Interlace, EVEN field ＯＢ ２ライン The timing is as follows; EVEN Feild EXT.VD VIDEO OUT (Normal scan) WEN OUT (Standard) 8.5H Partial Pulse 11.5H VIDEO OUT (Partial scan) WEN OUT (Standard) 8.5H WEN OUT (Normal shutter mode) [Option] WEN OUT (Other shutter mode) [Option] 9.5H...

  • Page 24: Specifications

    6. SPECIFICATIONS [Basic spec] (1) Image sensor Total pixels Active pixel Video output pixels Scanning area Unit cell size (2) TV system (3) Scanning lines (4) Interlace (5) Sync system (6) Aspect ratio (7) Video output (8) Resolution (9) S/N (10) Illumination (11) Gain (12) Gamma correction...
  • Page 25 [External sync spec] (1) Ext. sync input signal (2) Input impedance (3) Input level (4) Interlace (5) Polarity (6) Pulse width (7) Repeating frequency (8) Phase difference [Shutter trigger spec] (1) Input level (2) Input impedance (3) Capture timing (4) Pulse width [Sync signal spec] (1) Readout signal (2) Polarity...
  • Page 26 [Electronic shutter spec] (1)Normal shutter (2)RTS (a)Operation mode Notes : * RTS mode automatically switches over through TRIG IN (b)Multiple shutter (3)Restart / Reset [Partial scan] (1)Operation mode Scan mode 1/2 partial Consecutive HD VD IN Consecutive HD (VD) IN 1/4 partial Consecutive HD VD IN Consecutive HD (VD) IN...
  • Page 27 (2) Reset mode As shown in (1) above, non-reset and V-reset is available. ([Option]: Doesn’t come as standard. Contact our dealer / distributor for details) (a) non-reset (Electronic shutter enabled) VD doesn’t get reset after video readout. The interval of VD signal is as follows. 1/60s non-interlace 1/120s interlace VIDEO OUT...
  • Page 28 [Mechanical spec] (1) External dimension (2) Weight (3) Lens mount (4) GND / insulation [Ambient condition] (1)Environment condition Performance guaranteed Temperature: From 0 through 40 °C Operation guaranteed Storage (2)EMC conditions (Electro-Magnetic Compatibility) EMI (Electro-Magnetic Interference) EMS (Electro-Magnetic Susceptibility) *Conformity of EMC conditions About the conformity of the EMC standard of this machines, it has guaranteed in the conditions combined with the option part of 4th clause.
  • Page 29 [Connector pin assignment] (1) Compatible connector (2) Pin assignment Signal (Standard) DC12V GND DC12V VIDEO GND VIDEO OUT HD GND HD IN VD IN TRIG GND WEN OUT TRIG IN VD GND Notes : *Before connecting / disconnecting the connector, make sure the camera power is OFF. **For board connection, check compatibility.

  • Page 30: Switch Setting

    [Switch setting] (1) CCU rear-panel DIP SW Function GAIN selection (GAIN) E-shutter-speed (SHUT) Video output mode (VIDEO) Shutter mode (SMODE) Partial scan (PART) RTS Exposure (EXP) Notes: * (Table 1) Electronic shutter-speed Shutter-speed No.2 No.3 1/200s 1/500s 1/1,000s 1/2,000s 1/4,000s 1/8,000s 1/20,000s Notes :...
  • Page 31 [Relative Spectrum Response] *Including lens characteristics, Excluding light source characteristics [Optical black characteristics] Device structure Total pixels : 692(H) x 504(V) Effective pixels : 659(H) x 494(V) Optical black Horizontal : 2pixels --- 31pixels Vertical : 8pixels --- 2pixels Effective Image Area D4130891A...

  • Page 32: Timing Chart

    7. TIMING CHART (1)H rate timing D4130891A...
  • Page 33 (2) 1/60s Non-interlace mode EXT VD IN 1H delay INT VD INT HD VIDEO WEN OUT (Standard) Ext. VD – Ext. HD phase difference EXT VD IN EXT HD IN INT VD OB OB OB OB OB OB OB V.Blanking OB OB TP1 : 10.0 us TP2 : 5.0 us...
  • Page 34 (3) 1/120s 2:1 Interlace mode ODD (1st field) EXT VD IN 1H delay INT VD INT HD VIDEO OUT WEN OUT (Standard) EVEN (2nd field) EXT VD IN 1H delay INT VD INT HD VIDEO OUT WEN OUT (Standard) Ext. VD – Ext. HD phase difference EXT VD IN EXT HD IN INT VD...
  • Page 35 (4) WEN timing (a)Normal shutter mode <1/60s Non interlace mode> Under normal scan mode INT VD VIDEO OUT (Normal scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] Under partial scan V-reset mode (Standard) INT VD VIDEO OUT (Partial scan) V.Blanking WEN OUT (Standard) WEN OUT...
  • Page 36 <1/120s Interlace mode ODD Field> Under normal scan mode INT VD VIDEO OUT (Normal scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] Under partial scan V-reset mode (Standard) INT VD VIDEO OUT (Partial scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] Under partial scan Non-reset mode [Option] INT VD...
  • Page 37 (b)RTS Non-reset mode (Consecutive VD) <1/60s Non interlace mode> Under normal scan mode INT VD VIDEO OUT (Normal scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] Under partial scan mode INT VD VIDEO OUT (Partial scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] <1/120s Interlace mode ODD Field>...
  • Page 38 (c)RTS Non-reset mode (Single VD) / V-reset mode / SYNC-reset mode <1/60s Non interlace mode> Under normal scan mode INT VD VIDEO OUT (Normal scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] Under partial scan mode INT VD VIDEO OUT (Partial scan) V.Blanking WEN OUT...
  • Page 39 (d)Restart / reset mode <1/60s Non interlace mode> Under normal scan mode INT VD VIDEO OUT (Normal scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] Under partial scan mode INT VD VIDEO OUT (Partial scan) V.Blanking WEN OUT (Standard) WEN OUT [Option] <1/120s Interlace mode ODD Field>...

  • Page 40: External View Drawing

    8. EXTERNAL-VIEW DRAWING D4130891A...
  • Page 41 Head Office: 7-1, 4 chome, Asahigaoka, Hino-shi, Tokyo, 191-0065, Japan (Overseas Sales Department) Phone: +81-42-589-8771 Fax: +81-42-589-8774 URL: http://www.toshiba-teli.co.jp The design and specification is subject to change without notice. D4130891A...
