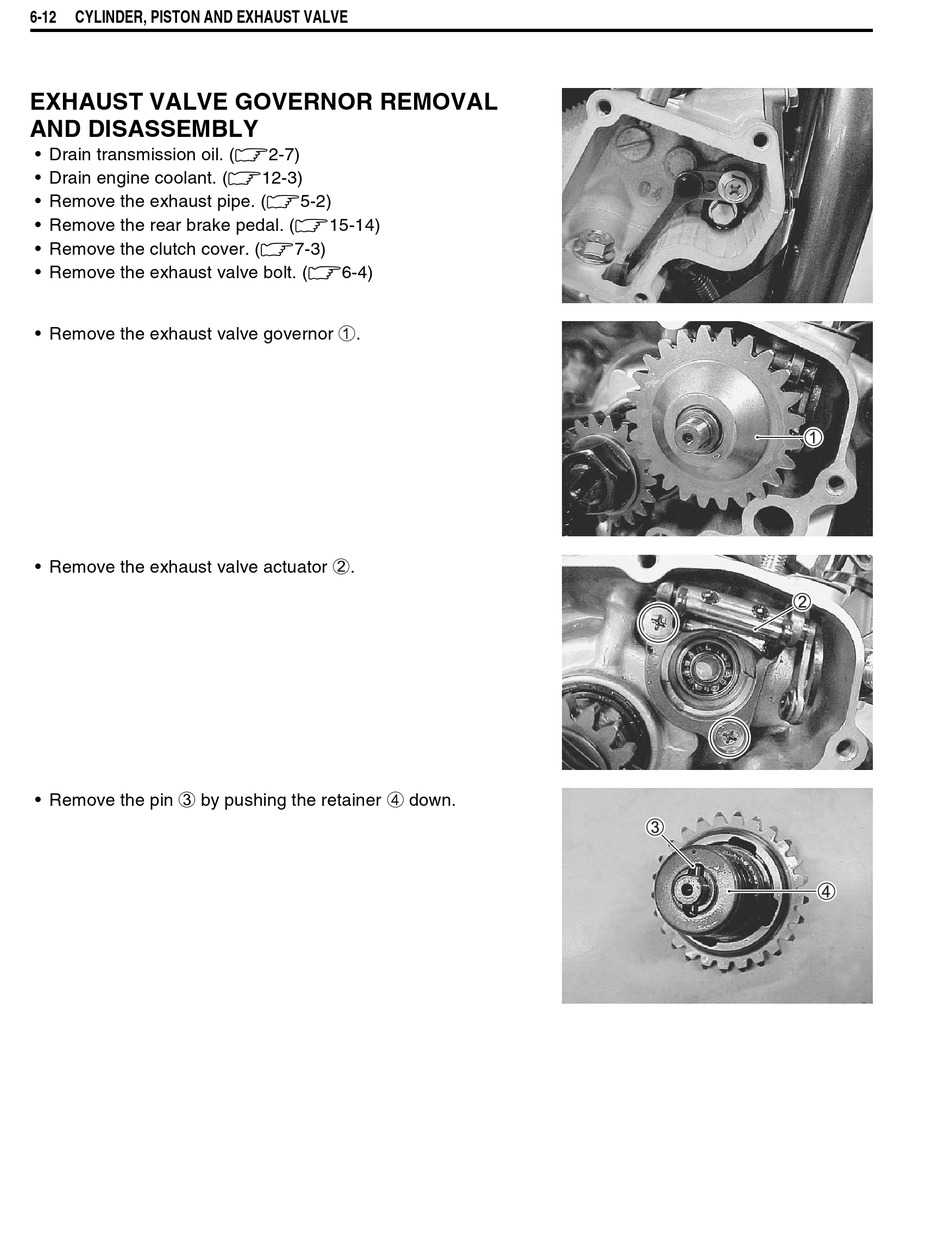

6-12 CYLINDER, PISTON AND EXHAUST VALVE
EXHAUST VALVE GOVERNOR REMOVAL
AND DISASSEMBLY
• Drain transmission oil. (2-7)
• Drain engine coolant. (12-3)
• Remove the exhaust pipe. (5-2)
• Remove the rear brake pedal. (15-14)
• Remove the clutch cover. (7-3)
• Remove the exhaust valve bolt. (6-4)
• Remove the exhaust valve governor 1.
• Remove the exhaust valve actuator 2.
• Remove the pin 3 by pushing the retainer 4 down.
