Asymtek Heli-Flow DV-8000 Series Owner's Manual page 58

Note: Applies to 4.4:1
Configuration Only
2
1
Item
1
2
3
4
5
6
7
54
Part No.
198440 Assy, Heat Sink, DV-8000-04
02-0094-00 Cover
49-3204 Screw, M3 X 0.5 X 4 mm, PH, Flat M/S, S/S (X2)
49-3206 Screw, M3 X 0.5 PH, Flat (6X)
193227 Clip, 6 oz, Upper
49-3308 Screw, M3 X 0.5 X 8 mm, Socket Cap (2X)
193226 Clip, 6 oz/2.5 oz, Lower

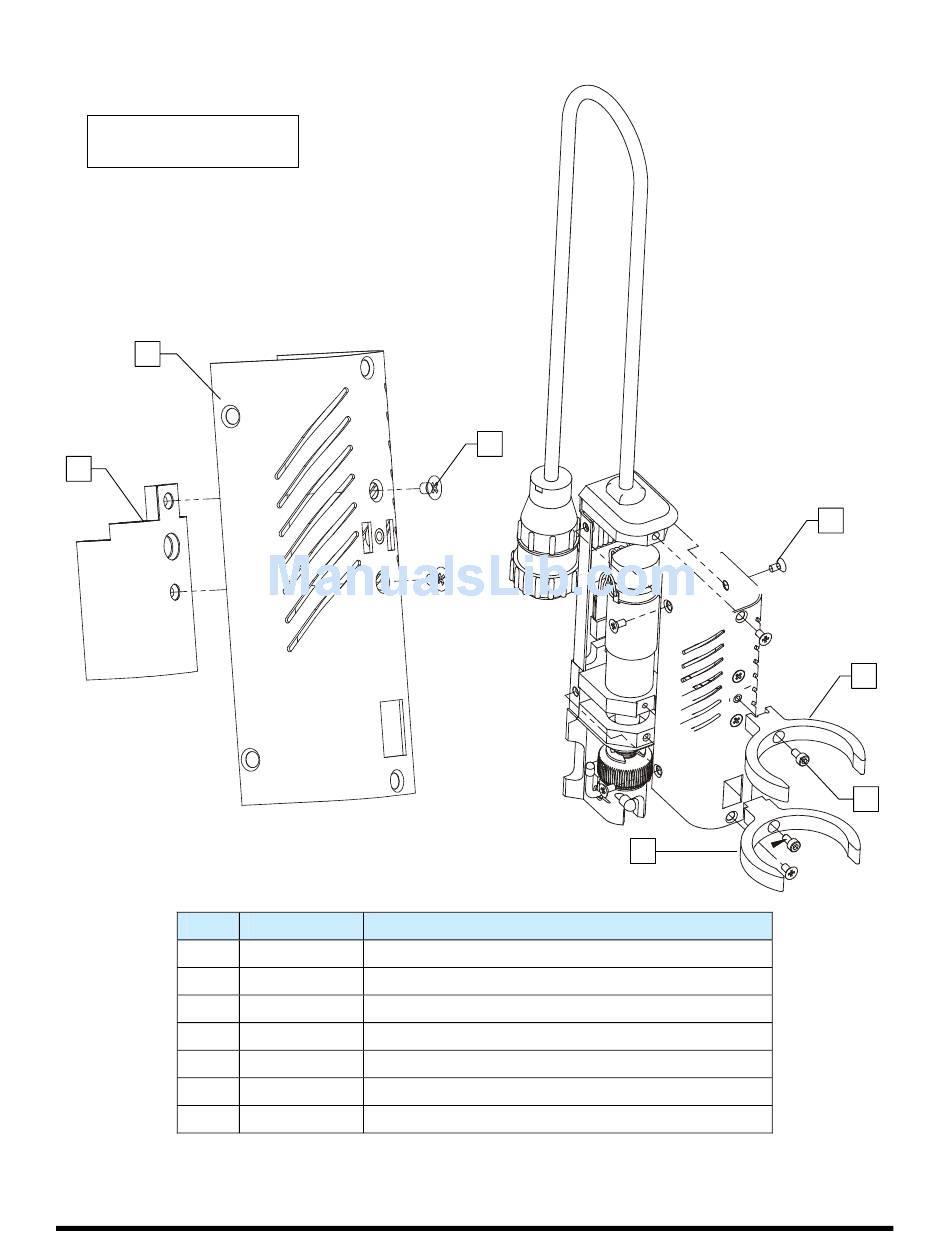

Figure 8-13 DV-8000 Exploded View (10 of 10)
3
7
Description
4
5
6
Parts Replacement
