DV-8000

CAUTION!
NOTE
This procedure is for a pump already mounted on the dispensing head.
1. Use the position controls to move the dispensing head to the front center of the dispensing area.
2. Perform a production shutdown as specified in the applicable dispensing system manual.
3. Open the dispensing system door or hatch and locate the pump on the dispensing head.
4. Obtain the appropriate cartridge assembly for your application.
5. Push in the red clutch lock release and rotate the clutch cap to the right (counterclockwise) one
complete turn (Figure 4-4).
6. Pull out the blue cartridge release lever and rotate it forward toward the front of the pump until it
is in a horizontal position.
7. Insert the cartridge into the valve body making sure to align the guide pin with the slot.
8. While holding the cartridge in place, pull out the blue cartridge release lever and rotate it upward
until it is in a vertical position.
This will lock the cartridge in place.
22
Only trained service technicians should perform this procedure.

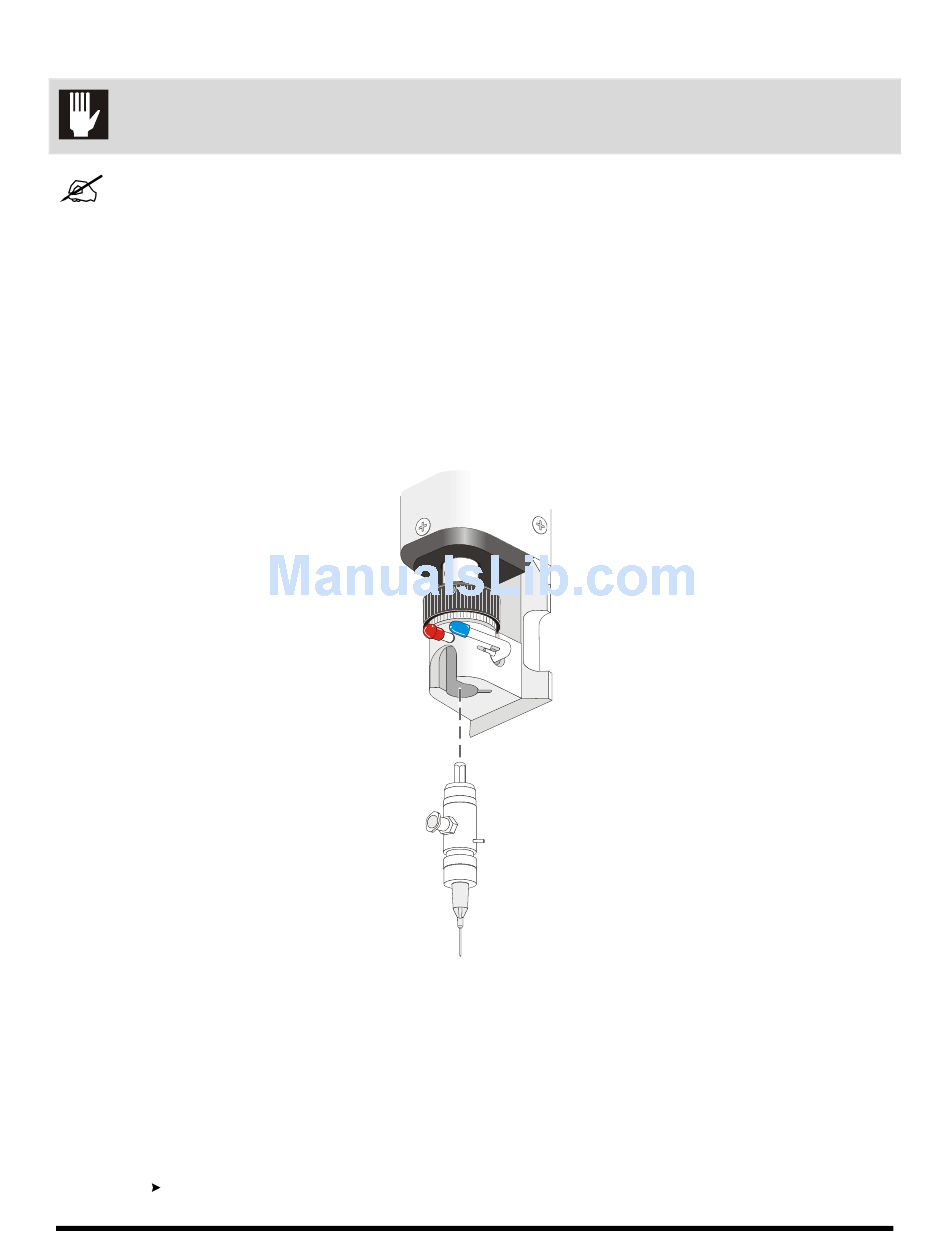

Figure 4-4 Cartridge Loading: DV-8000
Operation
