Asymtek Heli-Flow DV-8000 Series Owner's Manual page 13

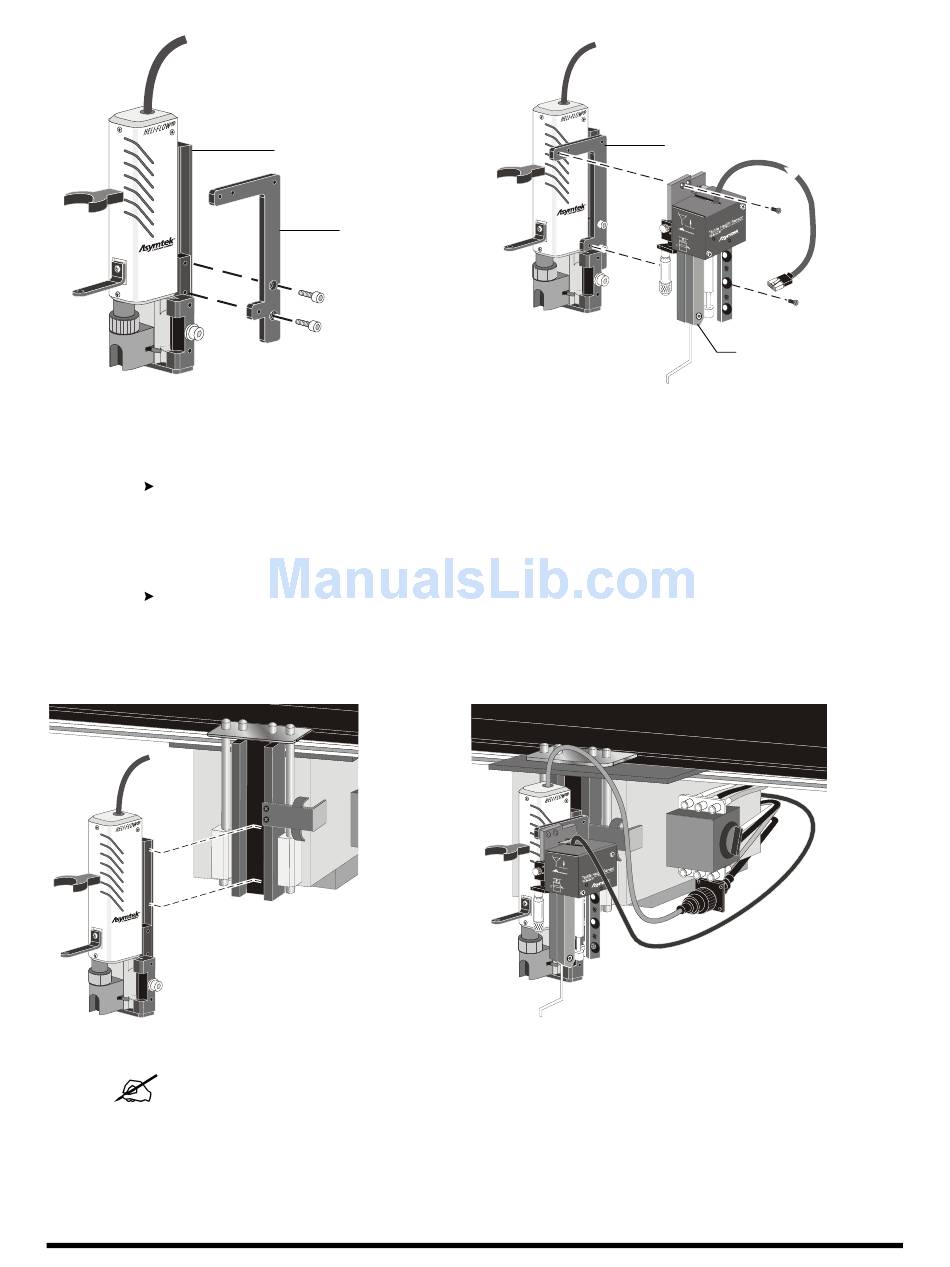

Figure 3-2 Attaching the Height Sensor Bracket
7. Slide the pump (with Height Sensor, if installed) into the valve mounting plate (Figure 3-4).
Position the valve bracket on the mounting plate so that when the pump is installed it will not
collide with components when moving around the dispensing area.
8. While holding the valve bracket in place, use a 2 mm hex key to tighten the setscrews on the side
of the valve mounting plate.
The valve bracket should be tightly held in the mounting plate.
9. Connect the pump power cord and Height Sensor power cord (if a Height Sensor is present) to
the dispensing head bulkhead.
Figure 3-4 Mounting the Valve (Century)
NOTE
10. Configure the Fluidmove software for the DV-7000/DV-8000 valve. See
Configuration" later in this section.
Installation
Valve Bracket
Height Sensor
Bracket
Figure 3-5 shows connections on a typical Century System. For systems with a
Dual-Action Dispensing Head, refer to the applicable manual.
Figure 3-3 Attaching the Height Sensor (Century)
Figure 3-5 Valve Electrical Connections (Century)
Height Sensor
Bracket
Height Sensor
"Software
9
