Installation Verification Test

Once you have installed the pump on your dispensing system and configured the software, it is
recommended that you perform this test to ensure that the pump accepts commands from your operating
system and responds by moving the feedscrew in the correct direction.
WARNING!
1. Start Fluidmove.
2. In the Main Window, click on Tools.
3. In the Tools Window, click on I/O Test and then click on Dispenser.
4. In the Dispenser I/O Test dialog box, locate the Valve Forward output. See Figure 3-18.
The output name may be different on your system, but it should be similar enough to be
easily identified.
On systems with Dual-Action Dispensing Heads, you will have to select Valve 1 (V1) or
Valve 2 (V2) for I/O testing, as applicable.
5. Toggle the output ON and check the direction of the ball coupling (Figure 3-19). It should be
turning in a clockwise direction if viewed from above.
If the ball coupling is not turning, make sure that the pump power cord is
properly connected. Then repeat this step.
16
Only trained service technicians should perform this procedure.

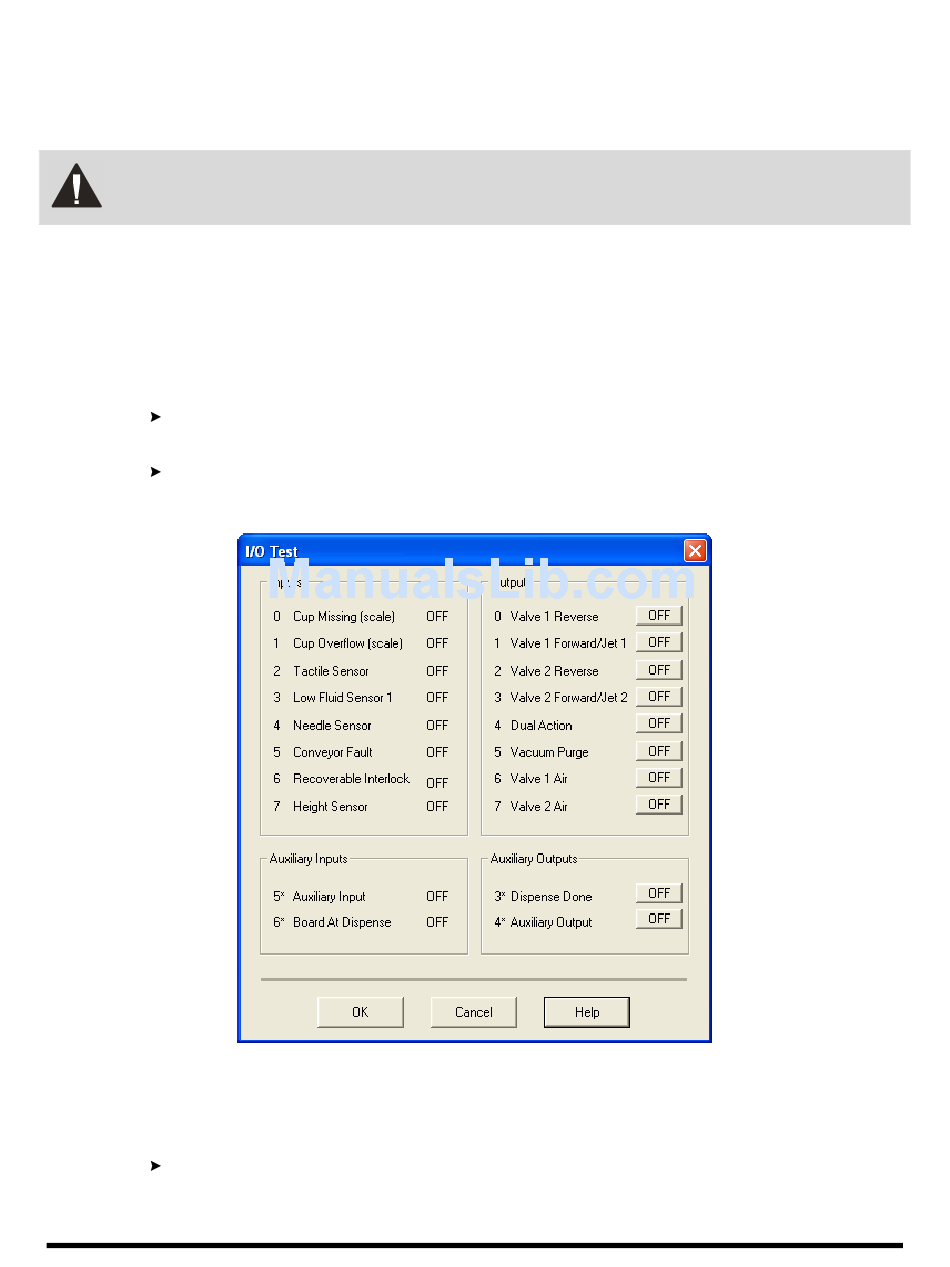

Figure 3-18 FmNT I/O Test Dialog Box (typical)
