Asymtek Heli-Flow DV-8000 Series Owner's Manual page 15

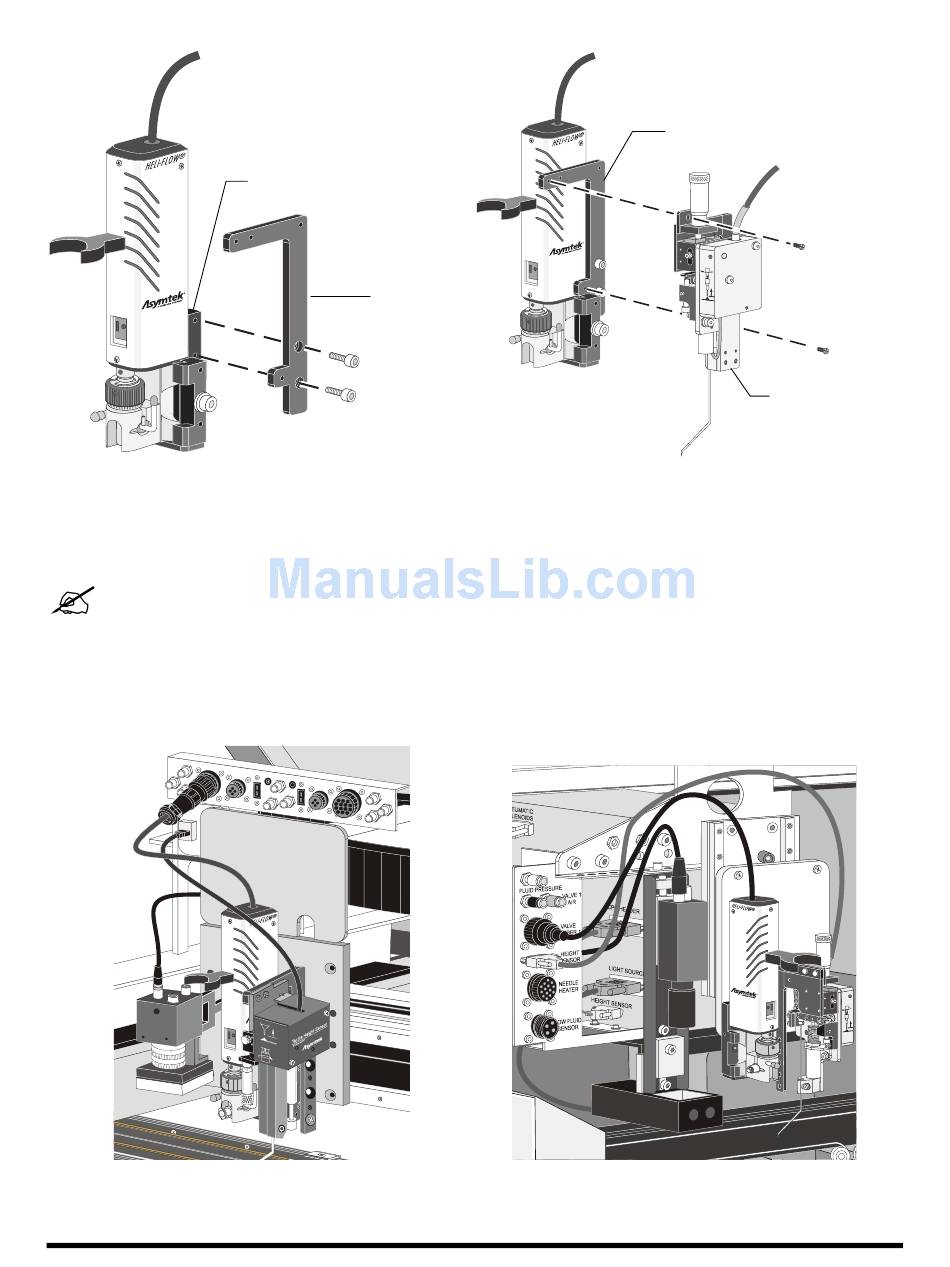

Figure 3-8 Attaching the Height Sensor Bracket
(M-2000, X-1000 Systems)
8. Connect the pump power cord and height sensor power cord (if a height sensor is present) to the
dispensing head bulkhead.
NOTE
Location of the power connections depends on the dispensing system. Figure 3-10 and
Figure 3-11 show typical connections on M-2000 and X-1000 dispensing systems. For
systems with a Dual-Action Dispensing Head, refer to the applicable manual.
9. Configure the Fluidmove software for the DV-7000/DV-8000 valve. See
Configuration" later in this section.
Figure 3-10 Valve Connections (M-2000)
Installation
Valve Bracket
Height Sensor
Bracket
Figure 3-9 Attaching the Height Sensor
(M-2000, X-1000 Systems)
Figure 3-11 Valve Connections (X-1000)
Height Sensor
Bracket
Height Sensor
"Software
