Installation on M-2000 Series or X-1000 Series Systems

NOTE
Illustrations in this subsection show the DV-8000, but installation instructions also apply to
DV-7000 Series Pumps.
1. Use the position controls to move the dispensing head to the front center of the dispensing area.
2. Perform a service shutdown and lock out/tag out power to the dispensing system as specified in
the applicable dispensing system manual.
3. Use a 3 mm hex key to attach the valve bracket to the valve mounting plate (Figure 3-6).
Position the valve bracket on the mounting plate so that when the pump is installed it will not
collide with components when moving around the dispensing area.
Valve
Mounting
Plate
Bracket Mounting
Screws

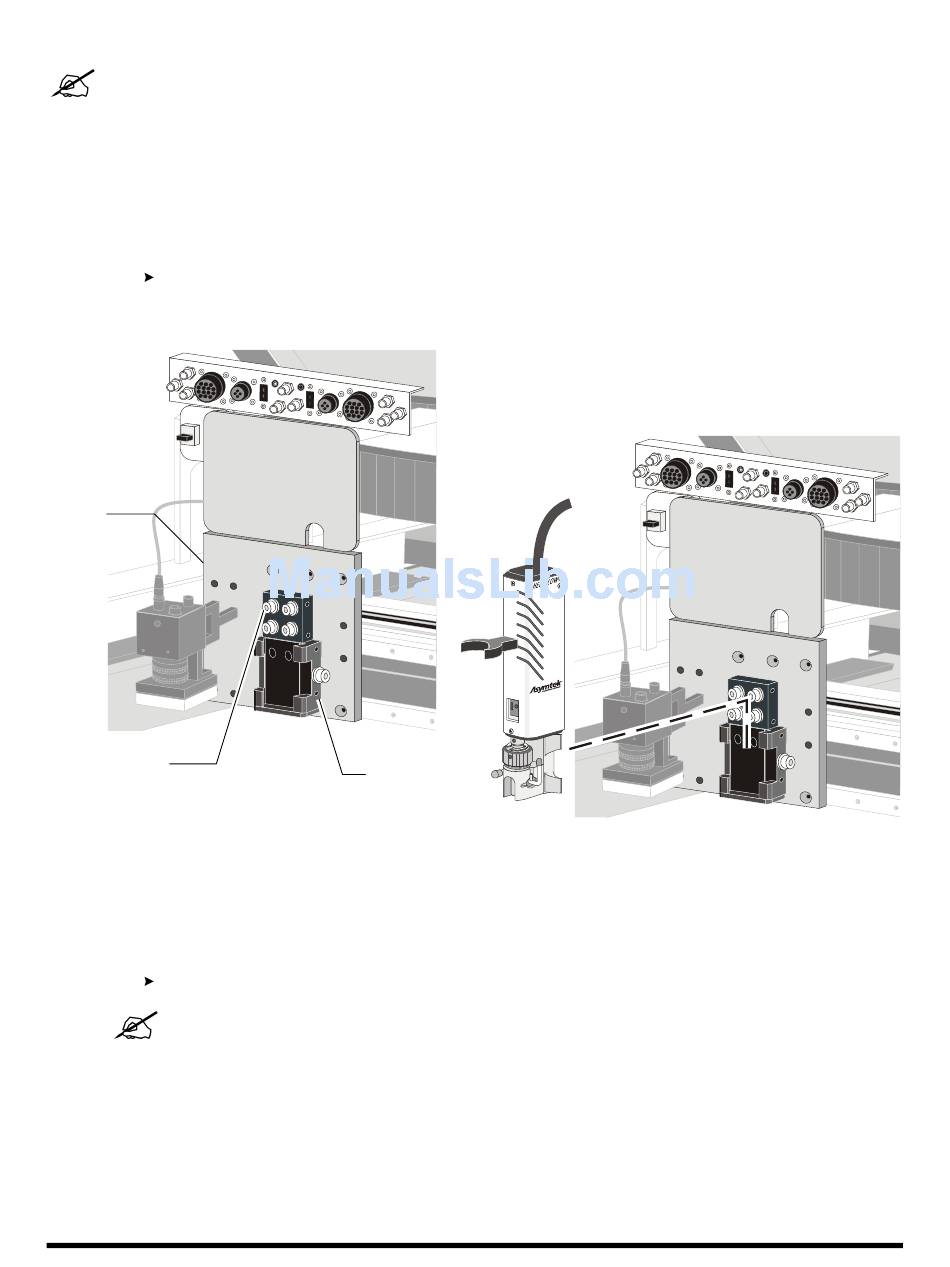

Figure 3-6 Attaching the Valve Bracket
(M-2000 shown)
4. Slide the pump into the valve bracket (Figure 3-7).
5. Use a 4 mm hex key to tighten the locking screw on the side of the valve bracket.
The pump should be tightly held by the bracket.
NOTE
6. Use a 3 mm hex key to attach the height sensor bracket to the valve bracket (Figure 3-8).
7. Use a Phillips head screwdriver to attach the height sensor to the height sensor bracket
(Figure 3-9).
10
Valve Bracket
If you will be using a height sensor, proceed with Step 6. If not, skip to Step 8.
Figure 3-7 Mounting the Valve (M-2000 shown)
