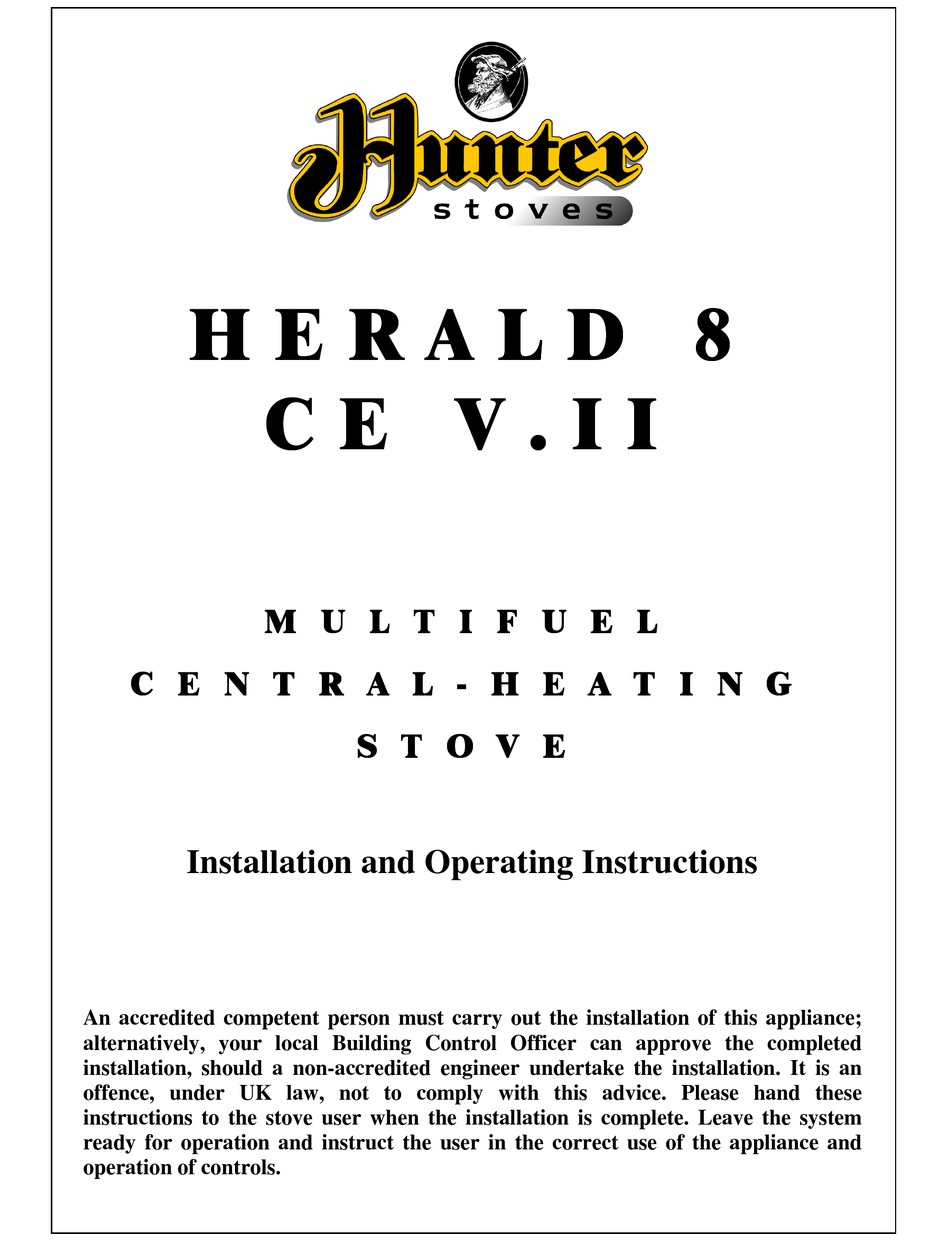

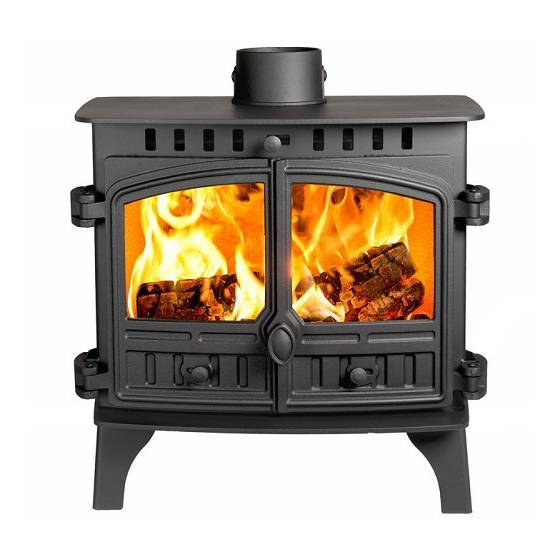

Herald 8 CE V.II Central-Heating Technical Specification Stove Mass 133 kg Wood Total Efficiency 73.4% Nominal Heat Output 8.0 KW Output to Water 6.0 KW Output to Room 2.0 KW Mean CO Emission (at 13% O2) 0.52 % Mean Flue Gas Temperature 283 °C Flue Gas Mass Flow 8.9 g/s...
Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.
Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws, European and national standards and other specifications or regulations as they affect the installation of the stove.
Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method.
Page 6
Material Clearances In all instances the hearth should be made of non-combustible material. Allow an apron of a least 300mm at the front of the stove and 150mm on either side. The hearth on which the stove is to be placed should not be less than 125mm thick and should be in accordance with the current building regulations.
Page 7
We strongly recommend that a knowledgeable, experienced and qualified plumbing and heating engineer is responsible for the design and installation of the heating and hot water system. Hunter Stoves Ltd cannot accept responsibility for any consequential loss, however caused, due to under or over specification of the appliance in any installation.
Page 8
Four Tapping System Time Switch Room Thermostat High Limit Thermostat 90° C Circulating Pump Low Limit Thermostat (45° C) Drain Cock Two Tapping System Time Switch Room Thermostat High Limit Thermostat 90° C Circulating Pump Drain Cock Low Limit Thermostat (45° C) Injector Tee Wiring Diagram for general guidance only All electrical work must be carried out by a competent...
Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere.
Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.
Your Hunter Stove is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.
HETAS approved list (www.hetas.co.uk). Hunter Stoves Ltd recommend only wood logs, and smokeless fuels approved by HETAS, as suitable for use in this appliance.
Should any difficulties arise over fuel quality or suitability, consult your local approved coal merchant or: HETAS Ltd.– Telephone 01242 673257 – www.hetas.co.uk Solid Fuel Association – Telephone 0800 600 000 – www.solidfuel.co.uk Warning! - Petroleum coke fuels or household waste must not be burnt on this appliance. This appliance should not be used as an incinerator.
Rope Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter...
Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle will need to be removed from its supports in order to sweep the chimney (see assembly instructions).
STOVE SPARES Only Hunter Stoves authorised spares should be used with this appliance RIGHT HAND DOOR Right Hand Door (HHR08/084) Door Glass (HHR08/082) Glass Gasket (HHR08/081) Glass Clip (HHR08/046) Glass Clip Screw (FSJM05008SS) Door Knob (HCR06/059) M8 Full Nut (FNFM08)
Page 17
STOVE BODY ASSEMBLY - PART SECTION - MULTIFUEL Flue Collar (HHR08/023) Flue Cover (HHR08/024) Baffle (HHR08/163) Riddling Support (HHR08/009) Primary Air Deflector Multifuel (HHR08/088) Riddling Bar – Lower Catch Bar – Drop in (HHR08/029) (HHR08/083) Riddling Bar – Upper (HHR08/030) Cam Bar Ashpan (HHR08/008)
