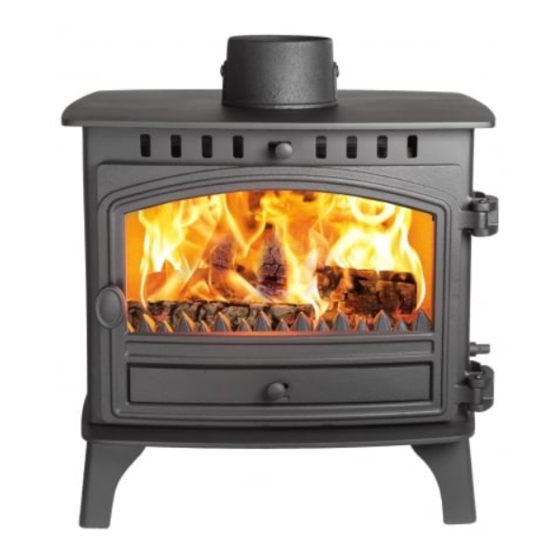

Hunter Stoves Herald 5 Installation And Operating Instructions Manual
Hide thumbs
Also See for Herald 5:
- Installation and operating instructions manual (19 pages) ,
- Installation, operating and maintenance manual (40 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hunter Stoves Herald 5
Summary of Contents for Hunter Stoves Herald 5
- Page 1 H E R A L D 5 & 7 INSTALLATION AND OPERATING INSTRUCTIONS Please hand these instructions to the stove user when the installation is complete. Leave the system ready for operation and instruct the user in the correct use of the appliance and operation of controls. H u n t e r H e r a l d 5 &...
- Page 2 PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Hunter Stoves Limited cannot accept responsibility for any fault arising through incorrect installation. HERALD 5 & 7 STOVE ASSEMBLY OLLAR Place the flue collar on the top or rear outlet as required and secure to the four locating tabs inside the flue outlet using the 6mm nuts &...
- Page 3 FIREBRICKS ULTIFUEL The rear brick is factory fitted. The side bricks rest on/behind the multifuel side plate which themselves are held in position by the static grate. OODBURNER The woodburning version only has rear firebricks, which are held at the back of the firebox by the upper brick-retaining bar.
-
Page 4: Installation
150mm and not more than 230mm for Herald 7, 125mm and not more than 230mm for Herald 5. If any of these requirements are not met, the chimney should be lined by a suitable method. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS AIR CONTROLS This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove. If used correctly this stove will burn far more efficiently than normal with the obvious notable feature CLEAN GLASS. However, for this product to work properly it must be used correctly. -
Page 6: Lighting The Stove
OTES ON SOLID FUEL BURNING Always de-ash before refuelling and do not let the ash build up to the underside of the static grate. Solid fuel produces ash, which if allowed to build up will stifle the airflow through the grate and eventually cause the fire to die. -
Page 7: Safety Notes For Your Guidance
SOLID FUELS Anthracite is an approved natural smokeless fuel (not processed) and therefore can vary greatly in quality and performance. It generally requires excellent air supply and above average fire-bed temperatures to maintain maximum performance and with experience we would suggest that it is used in conjunction with other approved manufactured smokeless fuels as per the Solid Fuel Associations’... -
Page 8: General Maintenance
GENERAL MAINTENANCE HROAT LATE This should be removed a least once a month to prevent any build up of soot or fly ash which could lead to blocked flueways and dangerous fume emission. If the throat plate is removed the chimney/flue way can be swept through the appliance. TOVE The stove is finished with a heat resistant paint and this can be cleaned with a soft brush. - Page 9 Description Herald 5 Order Herald 7 Order No. 12mm Sealing Rope 12SR 12SR 6mm Sealing Rope Door - Left Hand HHR06004 HHR06004 Door - Right Hand HHR06005 HHR06005 Door Knob - Cast HFR07028C HFR07028C Door Knob - Brass HFR07028B HFR07028B...
