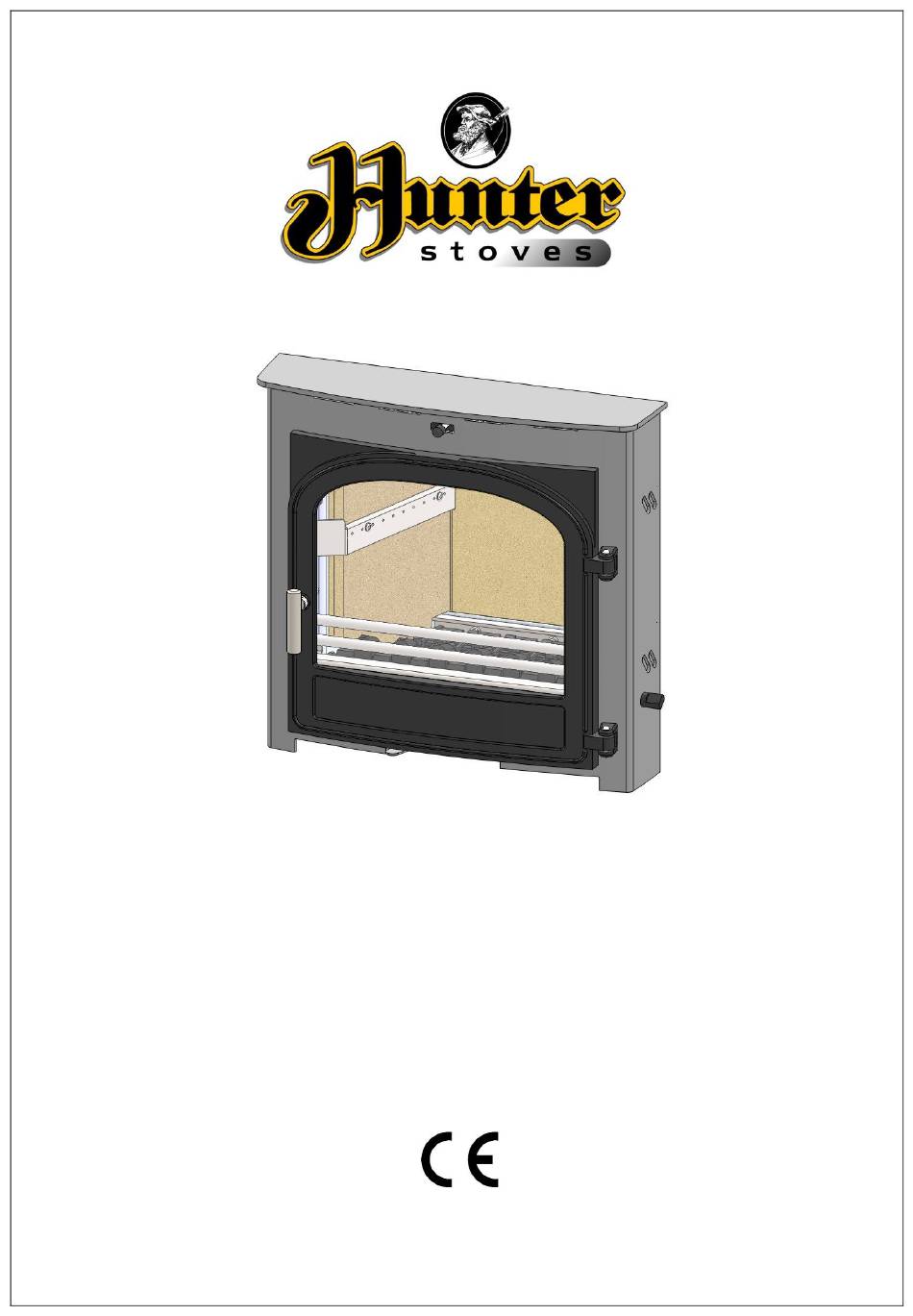

- Page 1 Telford Inset 5 MKII Models: CVSTI05FM/CVTI05FM Instructions for: Installation/Operation/Maintenance/Servicing JINTDI05 Rev E 20/04/15...
-
Page 2: Table Of Contents
Building Regulations and/or Local By- Laws and serviced within 12 months of installation. Hunter Stoves will also support an extended 5 year warranty on external Cast Iron components such as Doors, Flue Collars and Covers. -
Page 3: Technical Specification
Telford Inset 5 MKII TECHNICAL SPECIFICATION TELFORD INSET 5 MKII Hunter Stoves, Emperor Way, Exeter Business Park, Exeter, Devon. EX1 3QS BS/EN 13229 UKAS# 0692 Stove Mass: 100 kg NOMINAL OUTPUT: 4.9 KW CO Emission at 13% O : 0.19% Mean Flue Gas Temperature: 292°C... -
Page 4: Important Information
KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERANCE AND SERVICING. THIS APPLIANCE WILL BECOME HOT WHEN USED IN ACCORDANCE WITH THESE INSTRUCTIONS, HUNTER STOVES RECOMMEND THAT AN APPROVED GUARD IS USED TO PROTECT THE YOUNG, ELDERLY OR INFIRM FROM HARM. - Page 5 ARBON ONOXIDE ETECTOR Hunter Stoves recommend a Carbon Monoxide EROSOLS Detector that conforms to the latest issue of BS Do not use an aerosol spray on or near the stove EN 50292 is placed in the same room as the when it is alight.
-
Page 6: Flue Adaptor Instructions
Replace the Flue Infill Plate with the Flue Adaptor. NSTRUCTIONS FOR FITTING THE OPTIONAL FLUE ADAPTOR Apply fire cement to the mating surfaces of the adaptor and stove flue outlet. This product is designed to fit into a standard 16 inch fireback. -
Page 7: Direct Air Adaptor Instructions
in the current issues of British Standards BS 8303 NSTRUCTIONS FOR FITTING THE and BS EN 15287-1. OPTIONAL IRECT Competent Persons Scheme An optional Direct Air Adaptor (Part No: HCN05079) Hunter recommend that this Direct Air Adaptor is is supplied with this appliance. installed by a member of an accredited competent persons scheme e.g. - Page 8 Clearances to Combustible materials ducting and any insulation is suitably sized and In extreme circumstances it may be possible for positioned. Carry out any necessary remedial the flow of flue gasses in the stove to become work. reversed. In this condition the duct will become heated by the hot flue gas and consideration must Measure and cut the duct as necessary, allowing therefore be given to preventing the risk of fire.
-
Page 9: Pre Installation Requirments
Both the chimney and flue pipe must be PRE-INSTALLATION REQUIREMENTS accessible for cleaning and if ANY part of the chimney cannot be reached through the LEASE CHECK THE FOLLOWING Any existing chimney/flue system must be stove (with baffle removed), a soot door confirmed as suitable for this appliance as defined must be fitted in a suitable position. - Page 10 EGAL EQUIREMENTS Hunter Stoves requests that before installation Scheme Web address Telephone and/or use of this appliance that you read these APHC (Association instructions carefully to ensure that all the of Plumbing and relevant requirements are fully understood. Heating 0121 711 www.aphc.co.uk...
- Page 11 the chimney and any flue pipe must be accessible IREPLACE IMENSIONS for cleaning and if ANY parts of the chimney (Fire surround and side wall shown are cannot be reached through the stove (with baffle combustible and all dimensions stated are removed), a soot door must be fitted in a suitable minimum).
-
Page 12: Removing Internal Components
EMOVING NTERNAL OMPONENTS All internal components must be removed prior to fitting the stove. This will make handling the stove easier; allow access to fixings and the flue outlet; well protect internal components from damage during the installation process. Open the door(s) and remove the ashpan. 5. - Page 13 9. Unscrew the two M6 screws and remove the Turbo Bars. N.B. When re-installing, the side bars need to be installed first, followed by the singular 10. Remove the lower side bricks by tilting the bars. The final two grate bars should be top edge of the Bricks into the firebox and installed at the same time for ease of fit.
-
Page 14: Installation Instructions
16. Remove the ash barrier by sliding out of the INSTALLING THE STOVE stove. 1. Unpack the stove. 2. Remove internal components. 3. Move the stove into position inside the fireplace opening being careful not to damage the hearth or paintwork on the stove and making sure that the 12mm rope seal is compressed forming a tight seal between the stove and fireplace. -
Page 15: Commissioning And Handover
Extractor Fan fitted, open the adjoining door to ensure that the chimney/flue system is not Hunter Stoves also recommend that a CO alarm is compromised when the fan is operating. fitted into the room where the appliance is If there is a ceiling fan fitted in the room please located. -
Page 16: User Instructions
Primary Air USER INSTRUCTIONS The slider at the bottom of the stove controls the primary air. This provides a conventional air Please Read the ‘General Guidance’ Section at draught to the bed of the fire. The control is open the start of these instructions before operating when the slider is fully to the right. - Page 17 ECOMMENDED UELS IMPORTANT! Hunter Stoves recommend that wood logs are We cannot stress firmly enough how important it burnt in this appliance. is to empty the ashpan regularly. Air passing through the fire bed cools the grate bars.
- Page 18 Find out if you are in a Smoke Control Area by moisture content of less than 20%. contacting your Local Authority. Maximum The Telford Inset 5 MKII has been fitted with a Length: permanent bypass that prevents closure of the 235mm (9 3/4”) secondary air slider.
-
Page 19: Maintenance & Servicing
Check the 12mm rope around the door. If rope is appliance. becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a TOVE replacement rope kit may be ordered from the The stove is finished with a heat resistant paint Hunter Stoves spares range. - Page 20 NNUAL ERVICE Hunter Stoves recommend that this appliance is Excessive Flue Draught can cause Poor burning serviced annually, preferably prior to the start of control, excessive fuel consumption and even the heating season, thus avoiding any delay in noise from the Air Controls.
-
Page 21: Spares Information
Spares Information Single Door Spares Single Door (HCE09008) Double Door Glass Door Handle Assembly (HCE09031) (TDI05ARRT011MB) Double Door Gasket (HCE09030) Rope Sealing Kit (SCPCB900DDRSK) Glass Clip (HHR08164) Glass Clip Screw (FSJM05008SS) JINTDI05 Rev E 20/04/54... - Page 22 Double Doors Spares Left Hand Door Left Hand Door (TDI05008) Double Door Glass (HCE09031) Double Door Gasket (HCE09030) Door Handle (AVA08020MB) Rope Sealing Kit (SCPCB900SDRSK-REVC) Right Hand Door Right Hand Door (HCE09009) Double Door Glass (HCE09031) Double Door Gasket (HCE09030) Door Handle Assembly (TDI05ARRT012MB) JINTDI05 Rev E 20/04/54...
- Page 23 Body Assembly Spares Slider Knob HCE06059MB UPPER SIDE BRICK HCN05073 BAFFLE TURBO BARS HCN05022 HCN05068 A&B HINGE HH06/050 UPPER REAR BRICK HCN05072 LOWER REAR BRICK HINGE PIN HCN05070 FRRE08-1.75 REAR GRATE SUPPORT LOWER SIDE BRICK HCN05069 HCN05071 A&B FUEL RETAINER GRATE BARS HCN05/ARRT/030 SIDE: CNN05004 A&B...
-
Page 24: Commissioning & Installation Checklist
COMMISSIONING & INSTALLATION CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 25: Service Records
SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer...
