4-2-5 APC CIRCUIT (MAIN UNIT)
The APC circuit stabilizes transmit output power.
The RF output signal from the power amplifier (IC4) is
detected at the power detector circuit (D21, D22, L31) and
is then applied to one of the differential amplifier inputs (Q21,
pin 3) via the High/Low control circuit (Q22, R137). The

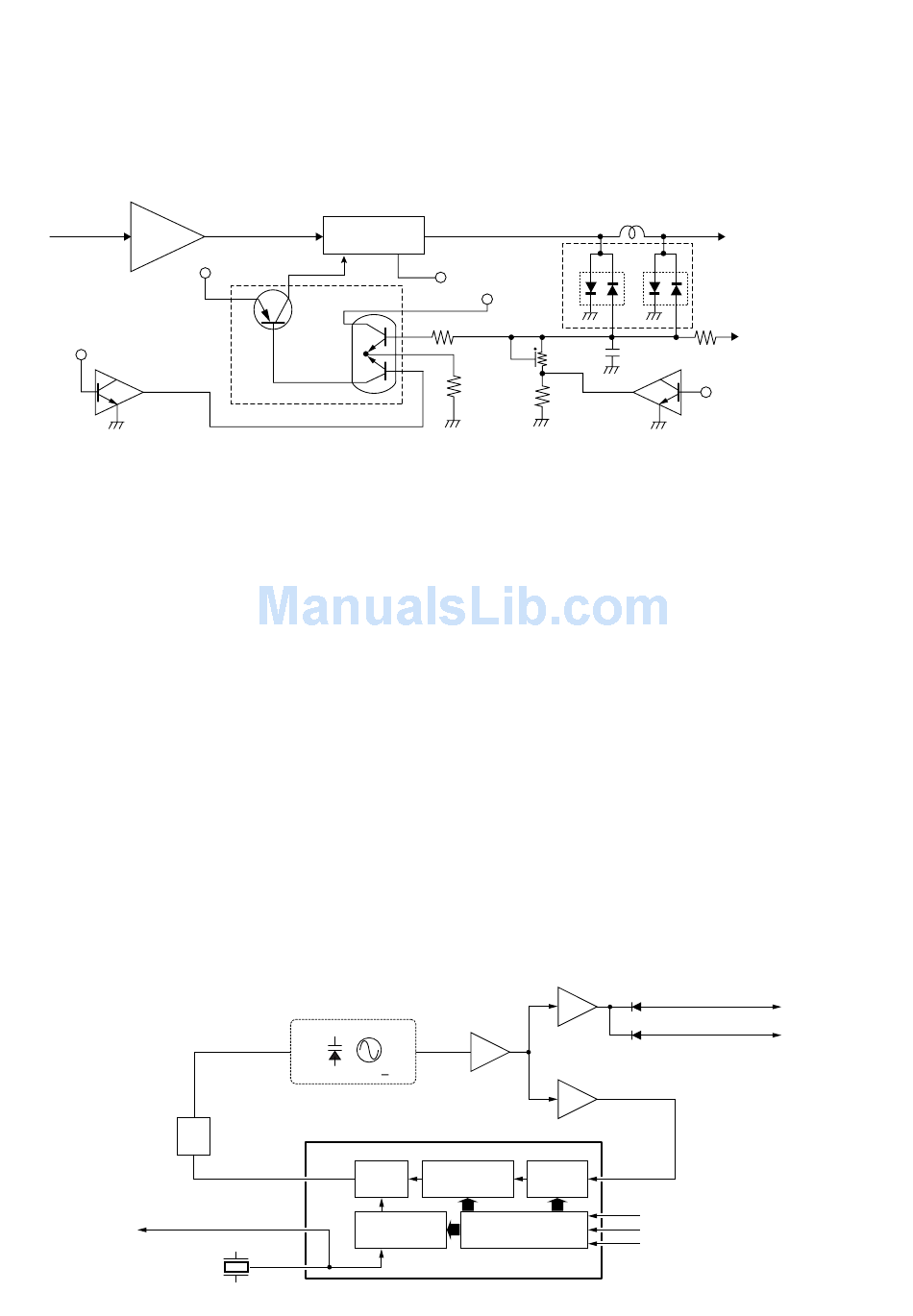

• APC CIRCUIT
RF signal
Q18
from PLL
YGR
amp.
5V
TMUT signal from the CPU
(LOGIC board; IC1, pin 51)
Q2

4-3 PLL CIRCUITS

4-3-1 GENERAL (MAIN UNIT)
The PLL circuit provides stable oscillation of the transmit
frequency and receive 1st LO frequency. The PLL circuit
compares the phase of the divided VCO frequency to
the reference frequency. The PLL output frequency is
controlled by a crystal oscillator and the divided ratio of the
programmable divider.
IC8 on the MAIN unit is a dual PLL IC which controls both
VCO circuits for Tx and Rx, and contains a prescaler,
programmable counter, programmable divider, phase
detector, charge pump, etc.
The PLL circuit , using a one chip PLL IC (MAIN unit; IC8),
directly generates the transmit frequency and receive 1st IF
frequency with VCO. The PLL sets the divided ratio based
on serial data from the CPU on the LOGIC BOARD and
compares the phases of VCO signals with the reference
oscillator frequency. The PLL IC detects the out-of-step
phase and output from pins 8 for Tx and Rx. The reference
frequency (21.25 MHz) is oscillated at X2 (MAIN unit).
• PLL CIRCUITS
Loop
filter
21.25 MHz signal to the
FM IF IC (IC1, pin 2)
X2
21.25 MHz
1
Power module
IC4
2 3
Q23
Q21
APC control circuit
VCO
Q13, Q14, D11 D14
8
Phase
detector
Programmable
17
divider
16
applied voltage controls the differential amplifier output (Q21,
pin 1) and the bias voltage control (Q23). Thus the APC
circuit maintains a constant output power.
4
RF detector
D21
circuit
HV
T5
R138
R135
R13
R136
4-3-2 TX AND RX LOOP (MAIN UNIT)
The generated signal at the VCO (Q13, Q14, D11–
D14) enters the PLL IC (IC8, pin 2) and is divided at the
programmable divider section and is then applied to the
phase detector section.
The phase detector compares the input signal with a
reference frequency, and then outputs the out-of-phase
signal (pulse-type signal) from pin 8.
The pulse-type signal is converted into DC voltage (lock
voltage) at the loop filter (R211–R213, C252, C254), and is
then applied to varactor diodes (D13, D14) of the VCO to
stabilize the oscillated frequency.
4-3-4 VCO CIRCUIT (MAIN UNIT)
The VCO outputs from Q13, Q14 are buffer-amplified at
the buffer amplifiers (Q15 and Q16), and are then sent to
the Tx/Rx switch (D16 and D17). The receive LO signal is
applied to the 1st mixer circuit (Q2) through a low-pass filter,
and the transmit signal is applied to the YGR amplifier (Q17).
A portion of the VCO output is reapplied to the PLL IC (IC8,
pin 2) via the buffer amplifier (Q26).
Buffer
Q16
Buffer
Q15
Buffer
Q26
IC (PLL IC)
Programmable
Prescaler
counter
hift register
4 - 3
L31
to the antenna
D22
TXD T signal to the CPU
(LOGIC board; IC1, pin 2)
C177
R133
H/L
Q22
D17
to transmitter circuit
to 1st mixer circuit
D16
2
3
P TB
4
PC
5
PDATA
