4-1 RECEIVER CIRCUITS

4-1-1 ANTENNA SWITCHING CIRCUIT
(MAIN UNIT)
The antenna switching circuit functions as a low-pass filter
while receiving and as resonator circuit while transmitting.
The circuit does not allow transmit signals to enter receiver
circuits.
Received signals enter the MAIN unit from the antenna
connector and pass through the low-pass filter (L1, L2, C3
–C5). The signals are then applied to the RF circuit via the
antenna switching circuit (D2).
4-1-2 RF CIRCUIT (MAIN UNIT)
The RF circuit amplifies signals within the range of
frequency coverage and filters out-of-band signals.
The signals from the antenna switching circuit pass through
a tunable bandpass filter (D4, L6, C12–C16) where the
object signals are led to the RF amplifier circuit (Q1).
The amplified signals at Q1, L7–L9 are applied to other
tunable bandpass filter (D5–D7, C22–C26, C29–C34) to
suppress unwanted signals and improve the selectivity. The
signals are then applied to the 1st mixer circuit.
4-1-3 1ST MIXER AND 1ST IF CIRCUITS
(MAIN UNIT)
The 1st mixer circuit converts the received signal to a fixed
frequency of the 1st IF signal with a 1st LO (VCO output)
frequency. By changing the 1st LO frequency, only the
desired frequency will be passed through two crystal filters
at the next stage of the mixer.
The signals from the RF circuit are mixed with the VCO
signals at the 1st mixer circuit (Q2) to produce a 21.7 MHz
1st IF signal.
The 1st IF signal is applied to two crystal filters (FI1, FI2)
to suppress out-of-band signals and is then amplified at the
IF amplifier (Q4). The amplified signal is applied to the 2nd
mixer circuit (IC1).

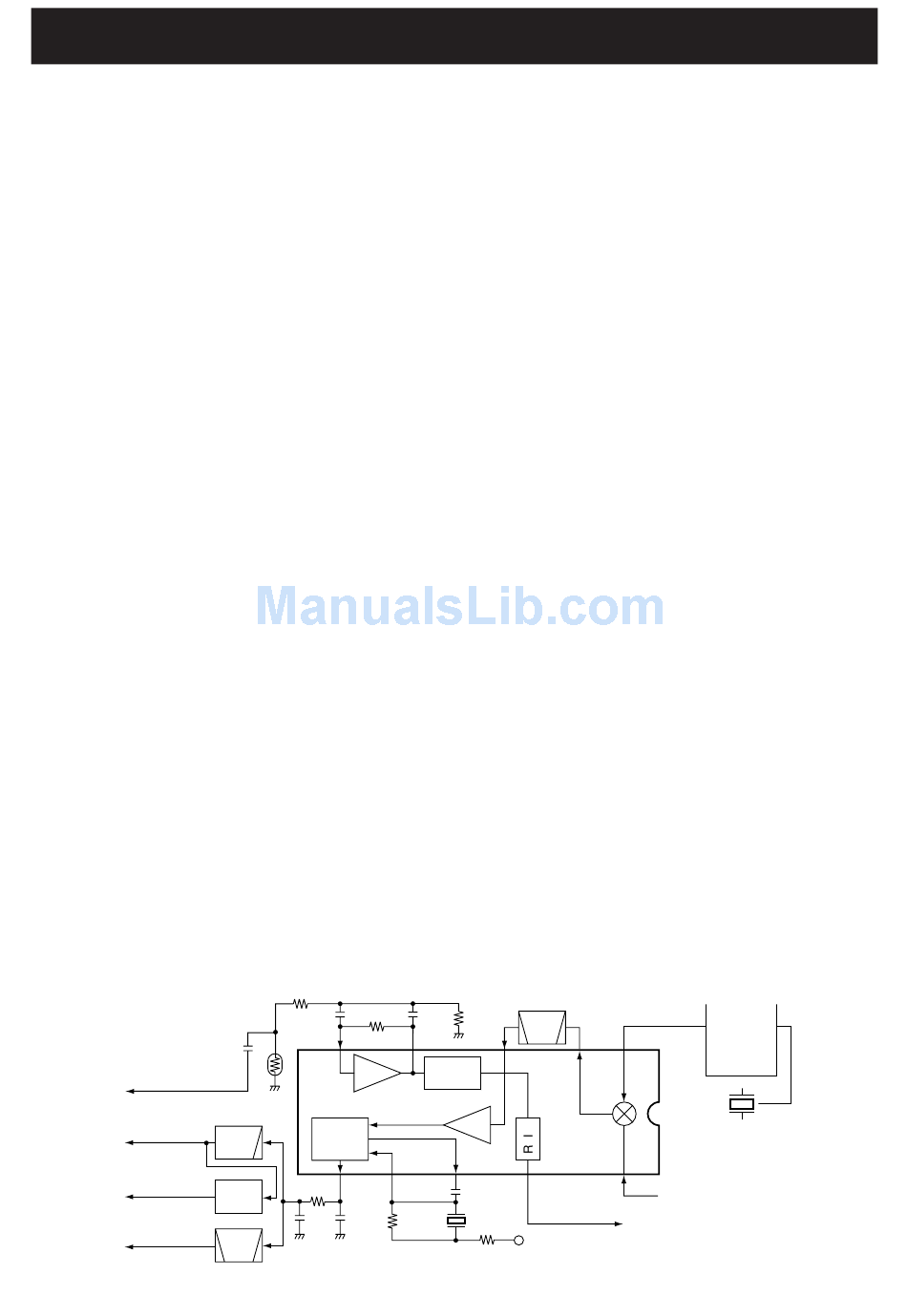

• 2ND IF CIRCUITS
QLV signal to the R1
on the QL board
WXDEC signal to the
CPU (LOGIC board; IC1)
D CDEC signal to the
CPU (LOGIC board; IC1)
DETO signal to the
AF mute switch (IC7)
CIRCUIT DESCRIPTION
C73 C74
R48
R50
8
C75
Active
filter
R47
FM
LPF
detector
9
R42
D C
DEC.
C65 C64
BPF
4-1-4 2ND IF AND DEMODULATOR CIRCUITS
(MAIN UNIT)
The 2nd mixer circuit converts the 1st IF signal to a 2nd IF
signal. A double superheterodyne system (which converts
receive signals twice) improves the image rejection ratio
and obtains stable receiver gain.
The FM IF IC (IC1) contains the 2nd local oscillator, 2nd
mixer, limiter amplifier, quadrature detector, and noise
detector circuits, etc.
The 1st IF signal from Q4 is applied to the 2nd mixer
section of IC1 (pin 16), and is mixed with a 21.25 MHz 2nd
LO signal generated at the PLL circuit using the reference
frequency (21.25 MHz) to produce a 450 kHz 2nd IF signal.
The 2nd IF signal from IC1 (pin 3) is passed through the
ceramic filter (FI3), where unwanted signals are suppressed,
and is then applied to the 2nd IF (limiter) amplifier in IC1 (pin
5). The signal is applied to the FM detector section in IC1
for demodulation into AF signals.
The FM detector circuit employs a quadrature detection
method (linear phase detection), which uses a ceramic
discriminator (X1) for phase delay to obtain a non-adjusting
circuit. The detected signal from IC1 (pin 9) is applied to the
AF circuit.
4-1-7 WEATHER ALERT DECODER CIRCUIT
(MAIN UNIT AND LOGIC BOARD)
When the weather alert function is activated and a 1050
Hz alert tone from an NOAA weather radio broadcast is
received, the IC-M304 emits beep tones and indicates
flashing "ALT" on the display to inform of an emergency
weather report on the air.
AF signals from the FM IF IC (IC1, pin 9) pass through
the low-pass filter (Q5, R52–R58, C83–C86) via the
"DET" signal, and are then applied to A/D port of the CPU
(LOGIC board; IC1, pin 8) as "WXDEC" signal. The CPU
has the tone decoder function. When a 1050 Hz signal is
detected by software decode, the CPU (LOGIC BOARD;
IC1) controls beep tones and the "ALT" indicator.
2nd IF filter
450 kHz
R49
FI3
7 5
Noise
detector
Limiter
amp.
10 11 13
C67
X1
R43
R5
R44
4 - 1
(21.25 MHz)
17
3 2
PLL IC
IC8
Mixer
X2
21.25 MHz
IC1 TA3113 F
16
1st IF (21.7 MHz)
from the IF amplifier (Q4)
QL signal to the CPU
(LOGIC board; IC1)
16
