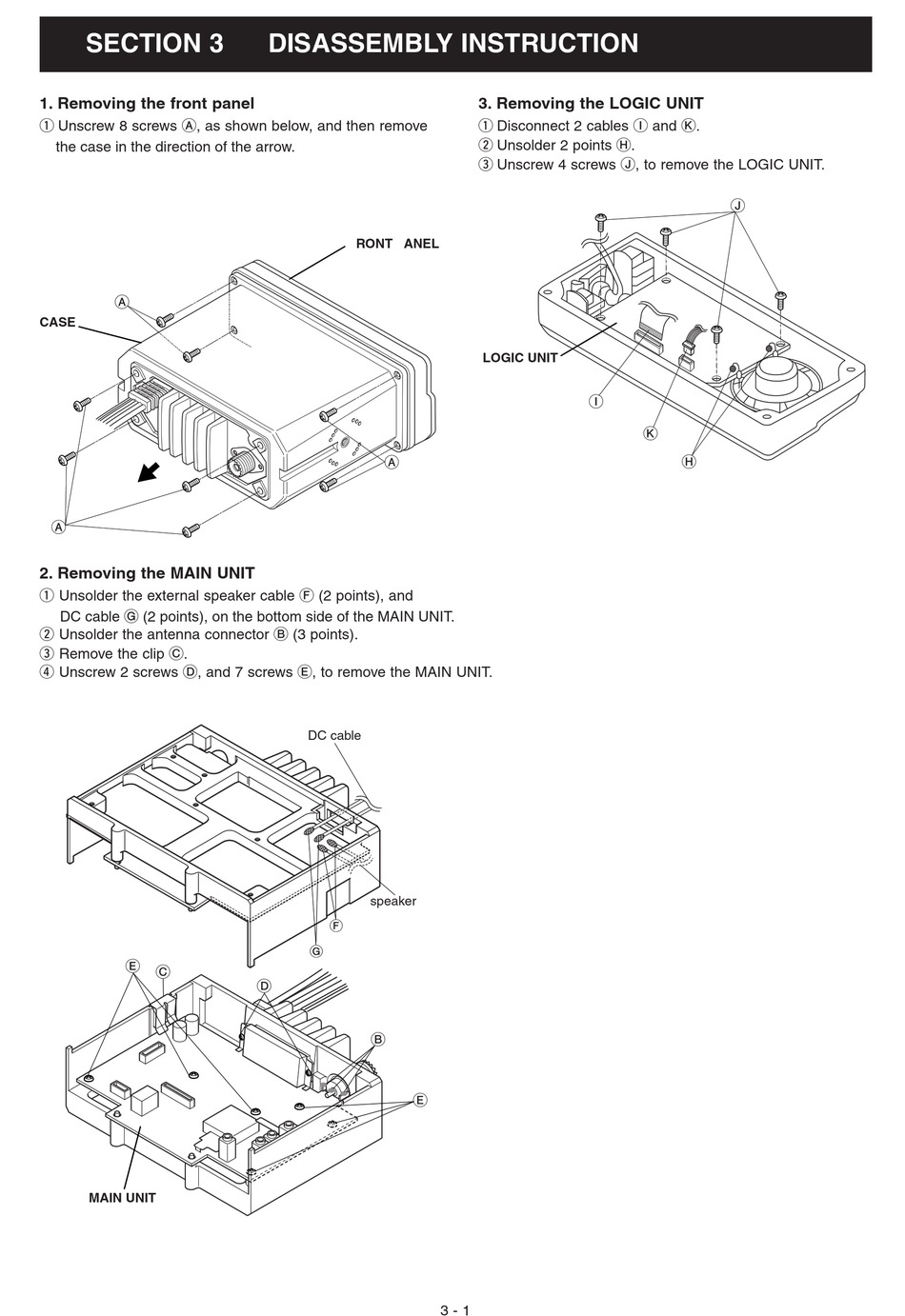

Icom IC-M304 Service Manual page 7

SECTION 3
1. Removing the front panel
q Unscrew 8 screws A, as shown below, and then remove
the case in the direction of the arrow.
A
CASE
A
2. Removing the MAIN UNIT
q Unsolder the external speaker cable F (2 points), and
DC cable G (2 points), on the bottom side of the MAIN UNIT.
w Unsolder the antenna connector B (3 points).
e Remove the clip C.
r Unscrew 2 screws D, and 7 screws E, to remove the MAIN UNIT.
E
C
MAIN UNIT
DISASSEMBLY INSTRUCTION
RONT ANEL
A
DC cable
speaker
F
G
D
B
E
3. Removing the LOGIC UNIT
q Disconnect 2 cables I and K.
w Unsolder 2 points H.
e Unscrew 4 screws J, to remove the LOGIC UNIT.
LOGIC UNIT
I
3 - 1
J
K
H
