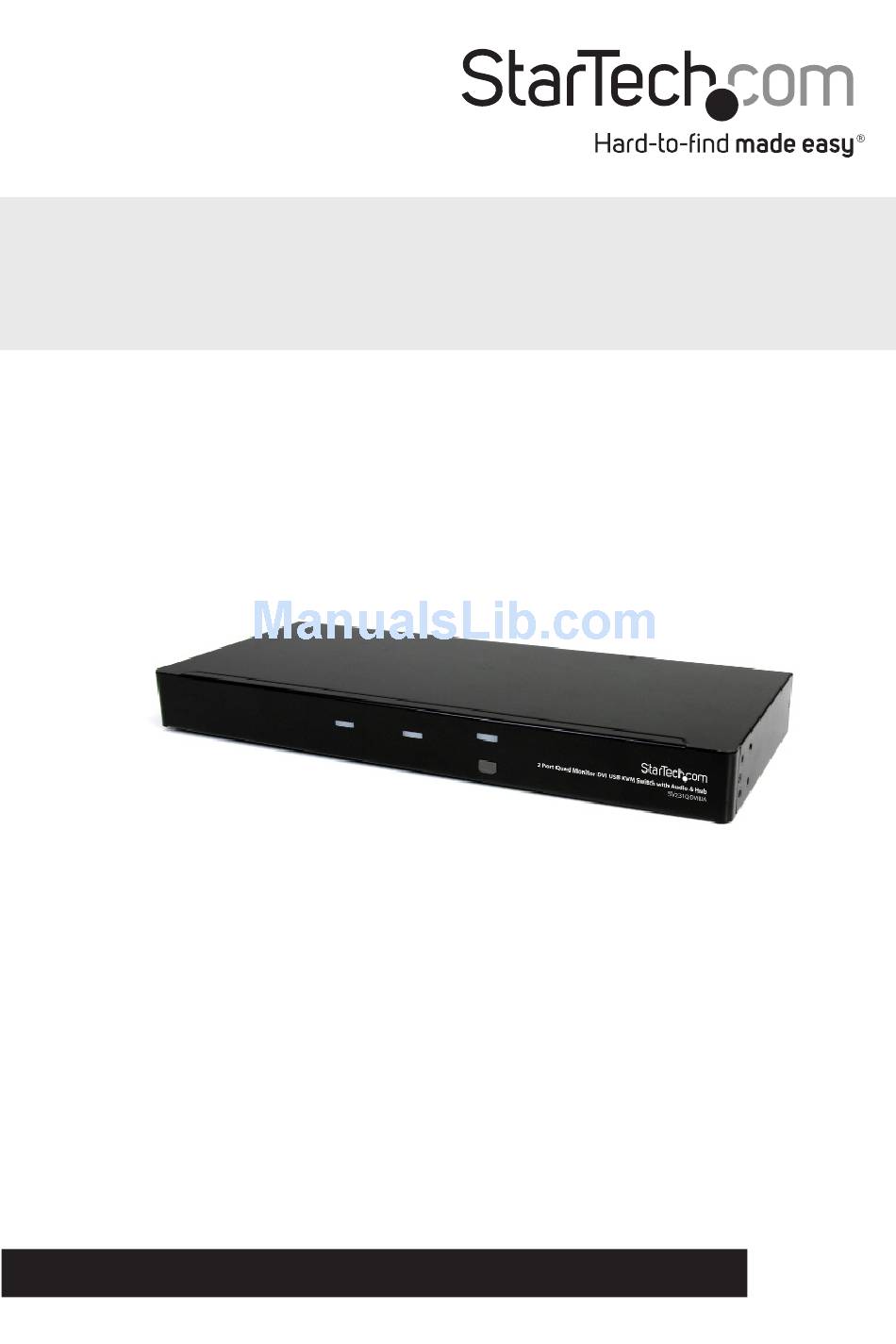

2 Port USB Quad Monitor Dual-Link
DVI KVM Switch with Audio & Hub
SV231QDVIUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/20/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com SV231QDVIUA
Summary of Contents for StarTech.com SV231QDVIUA
- Page 1 2 Port USB Quad Monitor Dual-Link DVI KVM Switch with Audio & Hub SV231QDVIUA DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
- Page 2 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ................................2 Installation................................3 Hardware Installation ..........................3 Driver Installation ............................4 Operation ................................5 Front Panel ..............................5 Hotkey Control ............................5 Alternative Hotkey Commands ......................8 Change Leading Hotkey ........................8 Specifications ..............................9 Technical Support ............................10 Warranty Information ............................10... -
Page 4: Introduction
Introduction The StarTech.com SV231QDVIUA 2 Port Quad Monitor DVI USB KVM Switch with Audio & USB Hub allows two PCs, each with up to four dual-link DVI video outputs, to share monitors, a microphone and set of stereo speakers, one keyboard and one mouse as well as one additional USB peripheral. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Installation
Installation NOTE: Prior to the installation, please power off all devices that will be connected to this system. Ensure that all devices you will connect are properly grounded. Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise. -
Page 7: Driver Installation
NOTE: DVI + USB + Audio KVM combo cables are also available which can be used in place of separate individual cables (e.g. StarTech.com ID: DVI4N1USB6) *Computer Setup 4. Repeat Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM. -
Page 8: Operation
Operation Front Panel Port Selection/Link LED The LED turns green when the connected computer is powered-on. The corresponding LED will also illuminate red when that PC port is currently selected. Port Selection Button Each push of the Selection Button on the front of the KVM switch will immediately switch between the two ports on the KVM switch. - Page 9 Auto Scan The KVM automatically scans through the powered-on computers in sequence on a fixed time interval (see Scan Time below). Note: The keyboard and mouse are not operable during Auto Scan. To start Auto Scan: Left <CTRL> + Left <CTRL> + <F1> To abort the Auto Scan mode, press the left <CTRL>...
- Page 10 Audio Lock There are two options for Audio Lock: ON and OFF. When ON, audio selection follows computer selection. When OFF, audio selection stops following computer selection. It is useful if you want to listen to a particular computer’s audio signal while operating other computers. Left <CTRL>...
-
Page 11: Alternative Hotkey Commands
For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock> + <ScrollLock> + <1> (Example: Select the computer at port 1.) <ScrollLock> + <ScrollLock> + <2> (Example: Select the computer at port 2.) NOTE: Do not use the keypad at the right of the keyboard. -
Page 12: Specifications
Specficiations Number of Ports 4 x 25-pin DVI-D female (dual-link) Computer Connectors (per port) 1 x USB type B female 2 x 3.5mm mini-jack Audio 4 x 25-pin DVI-D female (dual-link) Console Connectors 3 x USB type A female 2 x 3.5mm mini-jack Audio Maximum Video Resolution 2560x1600 DDC2B Support... -
Page 13: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our commit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/ support and access our comprehensive selection of online tools, documentation, and downloads. Warranty Information This product is backed by a three year warranty. - Page 14 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions. We make it easy to locate the parts, and we quickly deliver them wherever they need to go.
