StarTech.com DisplayPort SV231QDPU34K Quick Start Manual

2-Port Triple/Quad Monitor KVM Switch - DisplayPort™ - 4K 60Hz

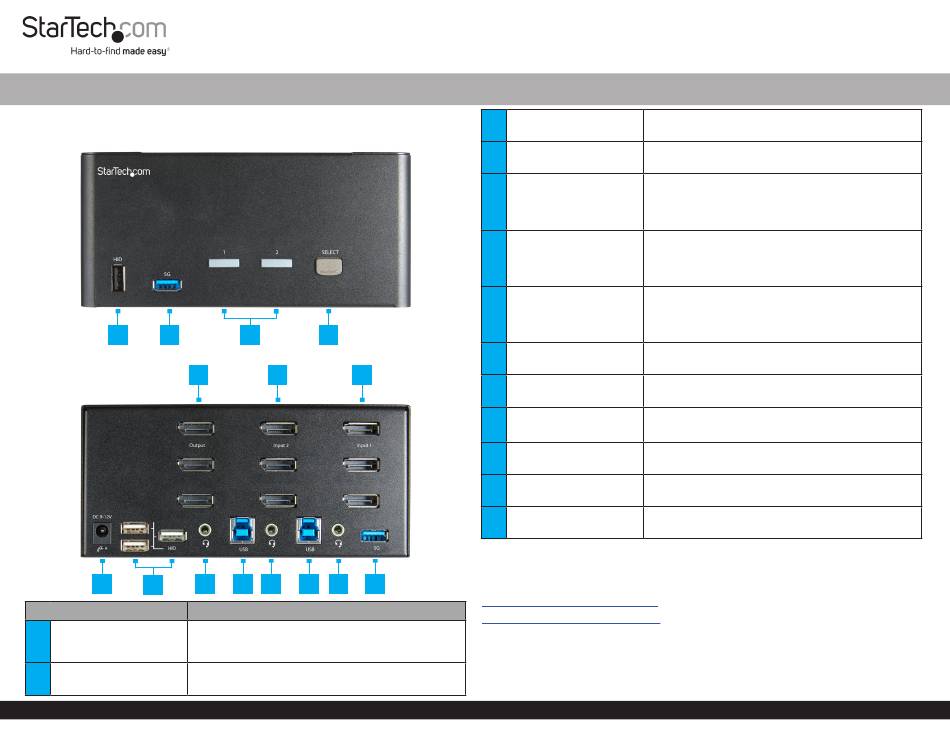

Product Diagram (SV231TDPU34K/SV231QDPU34K)

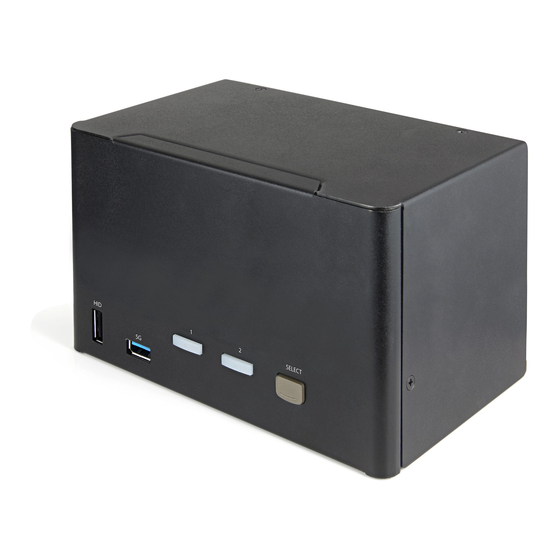

Front View
1 2
Rear View
5
8 9
1
Port
• Connect up to 4 USB Human Interface Devices
1 Console USB HID Ports (HID) (e.g. Keyboard, Mouse, Trackpad, Number
Keypad, Drawing Tablet)
• Connect up to 2 SuperSpeed USB 5Gbps (USB 3.2
2
Console USB Hub Ports
Gen 1) Peripheral Devices
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
*SV231TDPU34K
3 4
6 7
*SV231TDPU34K
10 11 12 13 2
Function
Port Selection LED • Green: PC 1 and/or PC 2 connected (power on)
3
• Red: PC 1 or PC 2 selected (power on)
Indicators
4 Port Selection Button • Press the Port Selection Button to select PC 1 or 2
• (SV231TDPU34K) Connect to three Console
DisplayPort Displays
Console DisplayPort
5
Output Ports • (SV231QDPU34K) Connect to four Console
DisplayPort Displays
• (SV231TDPU34K) Connect to three DisplayPort
PC 2 DisplayPort Input Ports on PC 2
6
Ports • (SV231QDPU34K) Connect to four DisplayPort
Ports on PC 2
• (SV231TDPU34K) Connect to three DisplayPort
Ports on PC 1
PC 1 DisplayPort Input
7
Ports • (SV231QDPU34K) Connect to four DisplayPort
Ports on PC 1
• Connect a DC 12V Power Source to power the
8 Power Input Port
KVM Switch
• Connect an Audio Device (Stereo Speakers or
9
Console Audio Port
Microphone)
• Connect to a SuperSpeed USB 5Gbps (USB 3.2
10 PC 2 USB Port
Gen 1) Port on PC 2
• Connect to an Audio Port (for Stereo Speakers or a
11 PC 2 Audio Port
Microphone) on PC 2
• Connect to a SuperSpeed USB 5Gbps (USB 3.2
12 PC 1 USB Port
Gen 1) Port on PC 1
• Connect to an Audio Port (for Stereo Speakers or a
13
PC 1 Audio Port
Microphone) on PC 2
Requirements
For the latest requirements and to view detailed instructions on all product functionality
in a full user manual, please visit:
www.startech.com/SV231TDPU34K
www.startech.com/SV231QDPU34K
Source PCs
• Computers (DisplayPort enabled) x 2
• DisplayPort Cables x 6 (SV231TDPU34K), 8 (SV231QDPU34K)
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Cables (Type-A Male to Type-B Male) x 2
Quick-Start Guide
Manual Revision: October 15, 2020
