Alto-Shaam 4-20 ESi Technical & Service Manual
  1. Manuals
  2. Brands
  3. Alto-Shaam Manuals
  4. Oven
  5. 4-20 ESi
  6. Technical & service manual

Alto-Shaam 4-20 ESi Technical & Service Manual

Combination oven / steamer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

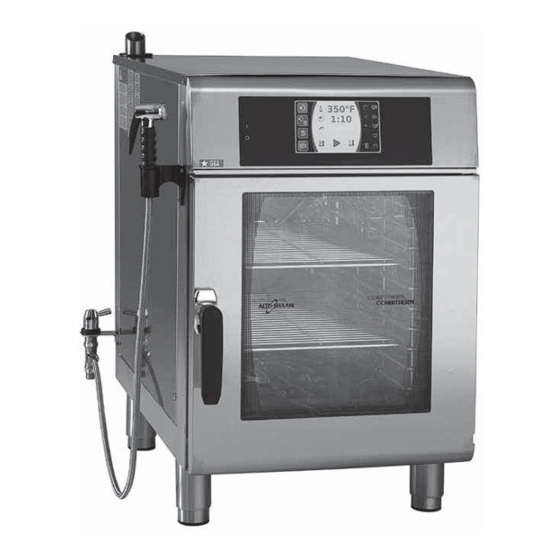

Shown with ExpressTouch control
