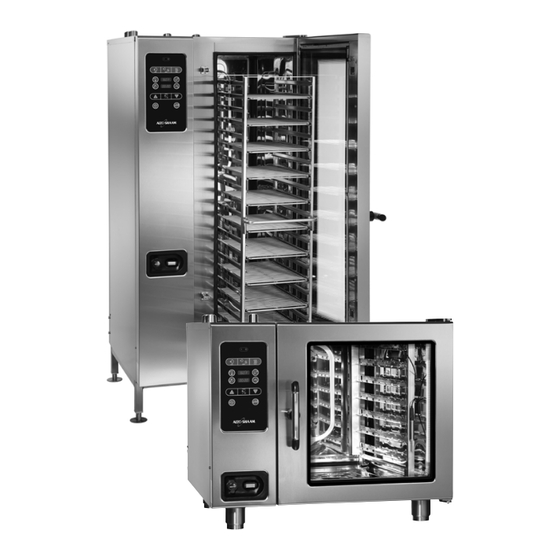

Alto-Shaam COMBITHERM CT PROFORMANCE CTP7-20E Installation Manual

Hide thumbs Also See for COMBITHERM CT PROFORMANCE CTP7-20E:

Service manual (101 pages)

Installation manual (88 pages)

Operator's manual (84 pages)

Table Of Contents

Quick Links

Download this manual

Ct ProformanCe™

WARNINg

To prevent personal injury, death or

property damage:

Do not store or use gasoline or other

flammable vapors or liquids in the vicinity

of this or any other appliance.

WARNINg

Improper installation, alteration,

adjustment, service, cleaning, or

maintenance could result in property

damage, severe injury, or death.

Read and understand the installation,

operating and maintenance instructions

thoroughly before installing, servicing, or

operating this equipment.

Combination oven/Steamer

Ct ClaSSiC™

inStallation manual

CTP6-10E

CTP10-10E

CTP7-20E

CTP10-20E

CTP20-10E

CTP20-20E

CTC6-10E

CTC10-10E

CTC7-20E

CTC10-20E

CTC20-10E

CTC20-20E

CTP6-10G

CTP10-10G

CTP7-20G

CTP10-20G

CTP20-10G

CTP20-20G

CTC6-10G

CTC10-10G

CTC7-20G

CTC10-20G

CTC20-10G

CTC20-20G

mn-35947 rev 15

06/17

Table of Contents

Need help?

Do you have a question about the COMBITHERM CT PROFORMANCE CTP7-20E and is the answer not in the manual?

Questions and answers

Summary of Contents for Alto-Shaam COMBITHERM CT PROFORMANCE CTP7-20E

Page 1 Combination oven/Steamer inStallation manual Ct ProformanCe™ CTP6-10E CTP6-10G CTP10-10E CTP10-10G CTP7-20E CTP7-20G CTP10-20E CTP10-20G CTP20-10E CTP20-10G CTP20-20E CTP20-20G CTC6-10E Ct ClaSSiC™ CTC6-10G CTC10-10E CTC10-10G CTC7-20E CTC7-20G CTC10-20E CTC10-20G CTC20-10E CTC20-10G CTC20-20E CTC20-20G WARNINg To prevent personal injury, death or property damage: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
Page 2: Transporation Damage And Claims
Alto-Shaam will continue our policy of assisting our receiving area. do not wait until aft er the appliance is customers in collecting claims which have been properly moved to a storage area.
Page 3: Delivery
Contact the Alto-Shaam Tech Team Service the guarantee and relieving Alto-Shaam of all department if you have any questions concerning liability. installation, operation, or maintenance.
Page 4 This manual covers the following CTC and CTP series models: Control Type Boiler-Free Models Steam Generator Models CT PROformance™ with 6-10E, 6-10G 6-10EB PROtouch™ control 10-10E, 10-10G 10-10EB 7-20E, 7-20G 7-20EB CT Classic with Classic 10-20E, 10-20G 10-20EB manual control 20-10E, 20-10G 20-10EB 20-20E, 20-20G...
Page 5: Table Of Contents
Table of Contents Transportation Damage and Claims . . . . . . . . . . . . .2 Ventilation Requirements for Gas Models . . . . . . . . . . . . 45 Gas Supply &...
Page 6: Safety Procedures And Precautions
Safety Procedures and Precautions • This appliance is intended to cook, hold or process foods Knowledge of proper procedures is essential to the for the purpose of human consumption. No other use for safe operation of electrically and/or gas energized this appliance is authorized and is therefore considered equipment.
Page 7 • do not allow objects to block or obstruct the area warranty and relieve Alto-Shaam of all liability. below the oven base. This may result in fi re, damage • When working on this appliance, observe precautions in to the equipment or serious injury.
Page 8: Installation
Installation SITE INSTALLATION WARNINg Improper installation, alteration, adjustment, service, cleaning, or maintenance could result in property damage, severe injury, or death. Read and understand the installation, operating and maintenance instructions thoroughly before installing, servicing, or operating this equipment. INSTALLATION CODES & STANDARDS VENTILATION REQuIREmENTS The following codes and standards are required for A steam ventilation hood is mandatory for the operation...
Page 9: Installation Duties And Responsibilities
Perform mechanical startup. Complete post installation check sheet. Pictures of the install’s electrical connections, water, drain, and clearances should be taken and sent to: installation_program@alto-shaam.com rSP/Dealer: Aft er Install Confirm installation is correct. Provide operational training and demonstration, and contact information for post installation support.
Page 10: Retrofit/Existing Kitchen
Perform mechanical startup. Complete post installation check sheet. Pictures of the install’s electrical connections, water, drain, and clearances should be taken and sent to: installation_program@alto-shaam.com rSP/Dealer: Aft er Install Confirm installation is correct. Provide operational training and demonstration, and contact information for post installation support.
Page 11: Pre-Installation Checklist
Pre-Installation Checklist Pre-Installation Checklist Location Information Location Name: __________________________________________________________ Site Contact Name: ____________________________________________________________ Location Street Address: __________________________________________________________ Site Contact Phone No.: ____________________________________________________________ Location City: __________________________________________________________ Site Contact Email: ____________________________________________________________ Location State: _____________________ Zip: ___________________________ Pre-Installation Company Information Company Name: __________________________________________________________ Technician Name: ____________________________________________________________ Mailing Address: __________________________________________________________ Technician Phone No.: ____________________________________________________________...
Page 12 Pre-Installation Checklist Pre-Installation Checklist Electrical What is the rated voltage and phase of the oven(s) to be supplied? VOLTAGE PHASE What is the measured voltage at site? L1-N L2-N L3-N L1-L2 L2-3 L1-L3 PASS FAIL What is the current draw of the oven(s) to be supplied? AMP RATING What is the on-site breaker size supplying power to the oven(s)? SIZE...
Page 13 On-site manager should make the necessary contacts to move forward with theses changes as soon as possible. If there are any questions, please contact Alto-Shaam Technical Service Department at 800-558-8744 ext. 6702. Or, review documentation regarding the equipment www.alto-shaam.com/en/resource-library.
Page 14: Water Requirements
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 15: Gas Boiler
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure ® [www.optipurewater.com] CLEARANCE REQUIREMENTS products to properly treat your water.
Page 16: Ctp10-10G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 17: Ctc10-10G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure ® [www.optipurewater.com] CLEARANCE REQUIREMENTS products to properly treat your water.
Page 18: Ctp7-20G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 19: Ctc7-20G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 20: Ctp10-20G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 21: Ctc10-20G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 22: Ctp20-10G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure ® [www.optipurewater.com] CLEARANCE REQUIREMENTS products to properly treat your water.
Page 23: Ctc20-10G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 24: Ctp20-20G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 25: Ctc20-20G Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 26: Ctp6-10E Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 27: Ctc6-10E Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 28: Ctp10-10E Spec Sheet
VERTICAL VENT TO EXTEND ABOVE THE EXHAUST equipment and/or components and void the original equipment manufacturer’s 200°F (93°C). MATERIALS MUST WITHSTAND TEMPERATURES UP TO VENT ® warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] cLearaNce reQUiremeNtS products to properly treat your water. LEFT: 0" (0mm) 18" (457mm)
Page 29: Ctc10-10E Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 30: Ctp7-20E Spec Sheet
VERTICAL VENT TO EXTEND ABOVE THE EXHAUST VENT equipment and/or components and void the original equipment manufacturer’s 200°F (93°C). MATERIALS MUST WITHSTAND TEMPERATURES UP TO ® warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] cLeArANce reQUIremeNtS products to properly treat your water. LEFT: 0" (0mm) 18"...
Page 31: Ctc7-20E Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 32: Ctp10-20E Spec Sheet
VERTICAL VENT TO EXTEND ABOVE THE EXHAUST VENT equipment and/or components and void the original equipment manufacturer’s 200°F (93°C). MATERIALS MUST WITHSTAND TEMPERATURES UP TO ® warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] cLearaNce reQUiremeNtS products to properly treat your water. LEFT: 0" (0mm) 18"...
Page 33: Ctc10-20E Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] ® CLEARANCE REQUIREMENTS products to properly treat your water.
Page 34: Ctp20-10E Spec Sheet
VERTICAL VENT TO EXTEND ABOVE THE EXHAUST equipment and/or components and void the original equipment manufacturer’s 200°F (93°C). MATERIALS MUST WITHSTAND TEMPERATURES UP TO VENT ® warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] cLearance reQuirements products to properly treat your water. LEFT: 0" (0mm) 18" (457mm)
Page 35: Ctc20-10E Spec Sheet
Non-compliance with these minimum standards will potentially damage this WATER DRAIN: - / " (40mm) equipment and/or components and void the original equipment manufacturer’s °F ( °C). warranty. Alto-Shaam recommends using OptiPure ® [www.optipurewater.com] CLEARANCE REQUIREMENTS products to properly treat your water.
Page 36: Ctp20-20E Spec Sheet
VERTICAL VENT TO EXTEND ABOVE THE EXHAUST equipment and/or components and void the original equipment manufacturer’s 200°F (93°C). MATERIALS MUST WITHSTAND TEMPERATURES UP TO VENT ® warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] cLearance reQuirements products to properly treat your water. LEFT: 0" (0mm) 18" (457mm)
Page 37: Ctc20-20E Spec Sheet
VERTICAL VENT TO EXTEND ABOVE THE EXHAUST equipment and/or components and void the original equipment manufacturer’s 200°F (93°C). MATERIALS MUST WITHSTAND TEMPERATURES UP TO VENT ® warranty. Alto-Shaam recommends using OptiPure [www.optipurewater.com] cLearaNce reQUiremeNtS products to properly treat your water. LEFT: 0" (0mm) 18" (457mm)
Page 38: Installation
Installation SITE INSTALLATION WARNINg To prevent serious injury, death, or property damage: • Always keep appliance on top of a pallet when using a fork lift or a pallet lift truck to move appliance. • Always use a suﬀ icient number of trained and experienced workers to place the appliance on floor, stand, or counter.
Page 39: Minimum Clearance Requirements
Installation SITE INSTALLATION 4" (102mm) for plumbing mINImum CLEARANCE REQuIREmENTS 4-5/16" (109mm) with optional plumbing kit left side 0" (0mm) minimum 18" (457mm) recommended service access right side 0" (0mm) from non combustible surfaces 2" (51mm) from combustible surfaces 2" (51mm) for door swing back 4"...
Page 40: Positioning On Site - 20-10 & 20-20 Models
Installation SITE INSTALLATION pOSITIONINg ON SITE — 20-10 & 20-20 mODELS Place the oven on a stable, non-combustible level horizontal surface. Use the adjustable feet to overcome an uneven floor and ensure that the unit is level. 1. Once the unit has been positioned properly beneath a ventilation hood system, adjust the four outside feet located on the outside corners of the base frame.
Page 41: Electrical Safety Regulations
Installation SITE INSTALLATION CAuTION WARNINg Power source must match voltage identified Appliances without a cord provided by the on appliance rating tag. The rating tag factory must be equipped with a cord of provides essential technical information suﬀ icient length to permit the appliance to required for any appliance installation, be moved for cleaning.
Page 42: Electrical Connection For Gas Models
Installation ELECTRICAL CONNECTION ELECTRICAL CONNECTION fOR gAS mODELS ELECTRICAL CONNECTION fOR ELECTRIC mODELS 1. An electrical wiring diagram is located behind NOTICE: All models must be equipped with a country certified external allpole disconnection switch the control panel on the left side of the oven. This with sufficient contact separation.
Page 43: Electrical Kit Installation - 50 Hz
Installation ELECTRICAL KIT INSTALLATION – 50 Hz International Cut threads into nut before installing fitting. To do so, apply a light lubricant and thread Applications nut on and off fitting. Appliance side * For 1-phase appliances remove red wire and orange wire. Cut threads into nut before installing fitting.To do so, apply a light lubricant and thread nut on and off fitting.
Page 44: Electrical Kit Installation - 60 Hz
Installation ELECTRICAL KIT INSTALLATION – 60 Hz Appliance side Applications for the Americas Discard the cover plate if applicable. Position and attach the support plate (x). Note: Cabling and connectors must be supplied for 120V configurations. Power supply side Remove enough cable covering so that wires reach the terminal strip. Depending on the application, install the straight or elbow fitting to the cable.
Page 45: Ventilation Requirements For Gas Models
Installation VENTILATION REQuIREmENTS fOR gAS mODELS W A R N I N g An adequate ventilation system is required for commercial cooking equipment. The minimum ventilation system shall comply with local regulations To prevent SERIOUS INJURY, DEATH, or and relevant codes. In the absence of local codes, the PROPERTY DAMAGE: ventilation system shall comply with: Installation, air adjustment and/or service...
Page 46: Gas Supply & Installation
• EU: European Standard EN203 gas be desired, conversion parts must be ordered from Alto-Shaam. Conversions must be peformed by an • Australia/New Zealand: AS 5601 Alto‑Shaam authorized service provider only.
Page 47: Installation Requirements
HOOd INSTALLATION IS REQUIREd or your distributor for information or After installation, burner and gas valve should be checked and adjusted by a qualified and trained Alto-Shaam technician for assistance. The qualified and trained proper operation and validate CO2 levels. GAS VALVE MAy installer or agency must use only factory-...
Page 48 Installation GAS SUPPLY AND INSTALLATION WARNING W A R N I N G To prevent personal injury, death or To prevent SERIOUS INJURY, DEATH, or property damage: PROPERTY DAMAGE: Do not store or use gasoline or other Installation, air adjustment and/or service flammable vapors or liquids in the vicinity work must be in accordance with all local of this or any other appliance.
Page 49 Installation gAS SuppLY AND INSTALLATION The other end of the cable should be permanently W A R N I N g attached to the rear frame of the oven. The cable should be of sufficient length so that no strain is ever placed To prevent SERIOUS INJURY, DEATH, or on the flexible gas connector in the event of accidental PROPERTY DAMAGE:...
Page 50: Gas Leak Testing
Installation gAS SuppLY AND INSTALLATION gAS LEAK TESTINg If a pressure leak test above 1/2 psi (34.5 mbar) is to The use of an electronic combustible gas leak detector be performed on the building supply gas piping, the is helpful, however, this type of detector can be shut-off gas valve and oven inlet gas supply line must oversensitive.
Page 51: Water Quality Requirements
OptiPure® [www.optipurewater.com] producing equipment. Since water quality is an important products to properly treat your water. issue, Alto-Shaam is committed to provide as much Alto-Shaam will continue our efforts to provide viable information as possible to help protect the investment solutions to ease the impact of water quality as it relates to made in this equipment.
Page 52: Water Supply & Installation
Installation WATER SuppLY AND INSTALLATION WARNINg notICe: To prevent SERIOUS INJURY or PROPERTY Significant damage to the appliance cavity, elements, or DAMAGE: heat exchanger could result from improper water quality. Two water supplies are required for proper Failure to meet the water quality requirements and operation of the oven.
Page 53: Water Drainage - For Single Oven
Installation WATER DRAINAgE – fOR SINgLE OVEN A union is required. Install a 1-1/2-inch (40mm) diameter connection, drain line and clamp into place. The drain line must always be a positive gradient away from the Combitherm oven. An end of drain run air gap may be required by local code.
Page 54: Water Drainage - For Stacked Ovena
Installation WATER DRAINAgE – fOR STACKED OVEN A union is required. Install a 1-1/2-inch (41mm) diameter connection, drain line and clamp into place. The drain line must always be a positive gradient away from the Combitherm oven. An end of drain run air gap may be required by local code.
Page 55: Mobile Equipment Restraint
Installation mOBILE EQuIpmENT RESTRAINT For Gas Models: 1. Install a manual gas shut-off valve along with an The gas Combitherm must use a connector that approved disconnect device. complies with The Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 CSA 6.16 and 2.
Page 56: Combihood Plus™ Ventless Hood Option
The 1/2" barbed connection is The CombiHood PLUS option is factory installed directly found at the back of the hood. on the top of the Alto-Shaam Combitherm CTP or CTC The drain line must always be a series oven. positive gradient away from the •...
Page 57: Grease Collection Installation (If Equipped With This Option)
Installation gREASE COLLECTION INSTALLATION (If EQuIppED WITH THIS OpTION) Hose guide Thumb Hose hanger bracket with film Hose hanger bracket bracket screw Grease Collection Hose • Grease Collection Hose Assembly is attached to the oven in the back. • The hose guide bracket can be attached on either the left side or the right side toward the back.
Page 58: Liquid Cleaner Hook-Up (If Equipped With This Option)
Failure to clean the appliance properly an empty liquid cleaner container. Failure invalidates the warranty and relieves to do so may result in poor oven cleaning, Alto-Shaam of all liability. grease and/or carbon accumulating inside the oven cavity and increased risk of fire. MN-35947...
Page 59: Ct Proformance™ Start-Up Procedures
If the controller software has not been updated to the current version (11/16 update), the calibration stops when this step is complete. download the current controller software from the Alto-Shaam website and install it. 2. The verification screen displays. Touch all five target icons .
Page 60: How To Run A Cycle Test Of The Appliance
CT PROformance™ Start-Up Procedures How To Run a Cycle Test of the Appliance Run the cycle test in combination cook mode 1. Touch the professional cooking mode icon in the home screen. The cooking screen displays. 2. Touch the icon for the combination cook mode 3.
Page 61: Ct Classic™ Start-Up Procedures
CT Classic™ Start-Up Procedures DANgER How To Turn On the Appliance Prerequisites Before starting the appliance, make certain you do 1. Turn on the exhaust hood. not detect the odor of gas. 2. Make sure that the water supply to the appliance is turned If you smell gas: •...
Page 62: Post-Installation Checklist
Post-Installation Checklist Post-Installation Checklist Location Information Location Name: __________________________________________________________ Site Contact Name: ____________________________________________________________ Location Street Address: __________________________________________________________ Site Contact Phone No.: ____________________________________________________________ Location City: __________________________________________________________ Site Contact Email: ____________________________________________________________ Location State: ______________________ Zip: ___________________________ Post-Installation Company Information Company Name: __________________________________________________________ Technician Name: ____________________________________________________________ Mailing Address: __________________________________________________________ Technician Phone No.: ____________________________________________________________...
Page 63 Post-Installation Checklist Post-Installation Checklist Electrical What is the rated voltage and phase of the appliance(s) installed? VOLTAGE PHASE Is the wire size for the main incoming power to the appliance(s) in accordance with the minimum size listed in the speciﬁ cation sheet PASS FAIL for this speciﬁ...
Page 64: Function Test Checklist
Function Test Checklist Function Test Checklist Wire Connections Behind the left side panel, check and tighten all electrical connections, and tighten all electrical screws. Behind the left side panel, check and tighten all electrical screws. Behind the control panel, check and tighten all connections on the control board. Behind the control panel, check and tighten all connections on the options board.
Page 65: Installation Complete
Function Test Checklist Function Test Checklist Installation Complete Cleanup job site Wipe down and clean exterior of combi appliance Picture of screen displaying current software versions Picture(s) of complete drain run Picture of water connections at combi appliance Picture of gas line and connections at combi appliance Picture of appliance in place with surrounding equipment Are water supply lines 3/4"...
Page 66: Daily Inspection Checklist
Inspection Checklist Daily Inspection unit information business name: _______________________________________ Serial number: __________________________________ model number: _______________________________________ Daily inspection Start Date: __________________________________ Daily inspection Checklist Inspect and clean: Product probe (thermometer) Door gasket (inner door seal) Inner door glass Front drip tray Screen and overlay (inspect for cracks, peeling, moisture, etc.) Execute automatic wash cycle...
Page 67: Weekly Inspection Checklist
Inspection Checklist Weekly Inspection unit information business name: ________________________________________ Serial number: _________________________________ model number: ________________________________________ Weekly inspection Start Date: _________________________________ Weekly inspection Checklist Inspect - Oven cavity lamp Inspect - Oven cavity for signs of grease/carbon buildup Inspect - Loosen thumb screws to inspect behind the fan panel inside the oven cavity for signs of grease/carbon buildup Inspect - Loosen thumb screws to inspect behind the fan panel inside the oven cavity for signs of scale buildup Inspect - The heat exchanger for any signs of major deformation.
Page 68: Monthly Inspection Checklist
Inspection Checklist Monthly Inspection unit information business name: ______________________________________ Serial number: _______________________________ model number: ______________________________________ monthly inspection Start Date: _______________________________ monthly inspection Checklist Inspect/Test - Proper draining of the oven cavity Inspect - All drain lines for leaks or clogs EB Descale the steam generator Inspect - Oven cavity for any signs of scale buildup Descale the oven interior...
Page 69: Yearly Inspection
Inspection Checklist Yearly Inspection unit information business name: _______________________________________ Serial number: ______________________________ model number: _______________________________________ 12-month inspection Start Date: ______________________________ 12-month inspection Checklist Replace - Steam bypass hose Inspect - Cleaning pump hose Inspect/Test - Proper draining of the oven cavity Inspect - All drain lines for leaks or clogs Inspect - All solenoid hoses (both ends) Inspect - Upper browning valve hose...
Page 70 Inspection Checklist unit information business name: _______________________________________ Serial number: ______________________________ model number: _______________________________________ 12-month inspection Start Date: ______________________________ 12-month inspection Checklist Inspect - The heat exchanger for any signs of major deformation. If yes, immediately remove from service and take corrective action steps.
Page 71 Inspection Checklist unit information business name: _______________________________________ Serial number: ______________________________ model number: _______________________________________ 12-month inspection Start Date: ______________________________ 12-month inspection Checklist Inspect and Tighten - Door hinges and lower hinge pin bolt Inspect and Tighten - Door handle If there is a smoker, inspect the smoke element for visual signs of deformation, cracks or breaks (replace as needed) Review - Error code history Note the soft ware version (update if not current) Record - Water pressure (static &...
Page 72: Troubleshooting
Do not attempt to repair or service the oven beyond this point. Contact Alto-Shaam for the nearest authorized service agent. Repairs made by any other service agents without prior authorization by Alto-Shaam will void the warranty.
Page 73 Troubleshooting Error Codes Error Error Call Out in Display Description of Error possible Cause(s) Code Lower VFD Comm Failure When VFD does not respond to a — Loss of power to VFD. — VFD malfunction. query on the CAN interface. —...
Page 74 Troubleshooting Error Codes Error Error Call Out in Display Description of Error possible Cause(s) Code B10 - Point 3 - Core Temperature Multipoint core temperature probe — B10 Multipoint Core Temperature probe defective. — B10 Multipoint Core Temperature probe wires Probe Multipoint Fault defective or disconnected.
Page 75 — Faulty ignition control. appears a third time, remove the oven from service and immediately contact an Alto-Shaam authorized service provider. Upper Gas Ignition Failure Reset output from Ignition — Hot surface ignitor not functioning.
Page 76 — Improperly connected drain. investigated by an authorized — Condensate pan clean out not closed. Alto-Shaam service provider. — Improperly wired high limit switch at the switch or at the — Defective high limit switch. continued on next page...
Page 77 Troubleshooting Error Codes Error Error Call Out in Display Description of Error possible Cause(s) Code E200 The SD card has been detected The SD card inserted is larger — SD card is larger than 2GB in size. Contact service to order replacement SD card.
Page 78: Touch Motor Control Error Codes
Troubleshooting Touch Motor Control Error Codes The LEd is located on the variable frequency drive (VFd) of the oven. Type of Error Indication Release of Error undervoltage LED flashing sequence, with 1 flash per period. Voltage of intermediate circuit is less than 250V Overvoltage LED flashing sequence, with 2 flashes per period.
Page 79: Original Equipment Limited Warranty
No person except an offi cer of Alto-Shaam, Inc. is authorized to modify this warranty or to incur on behalf of Alto-Shaam any other obligation or liability in connection with Alto-Shaam equipment.
Page 80: Operation
Operation...
