Section B - Electronic Controls

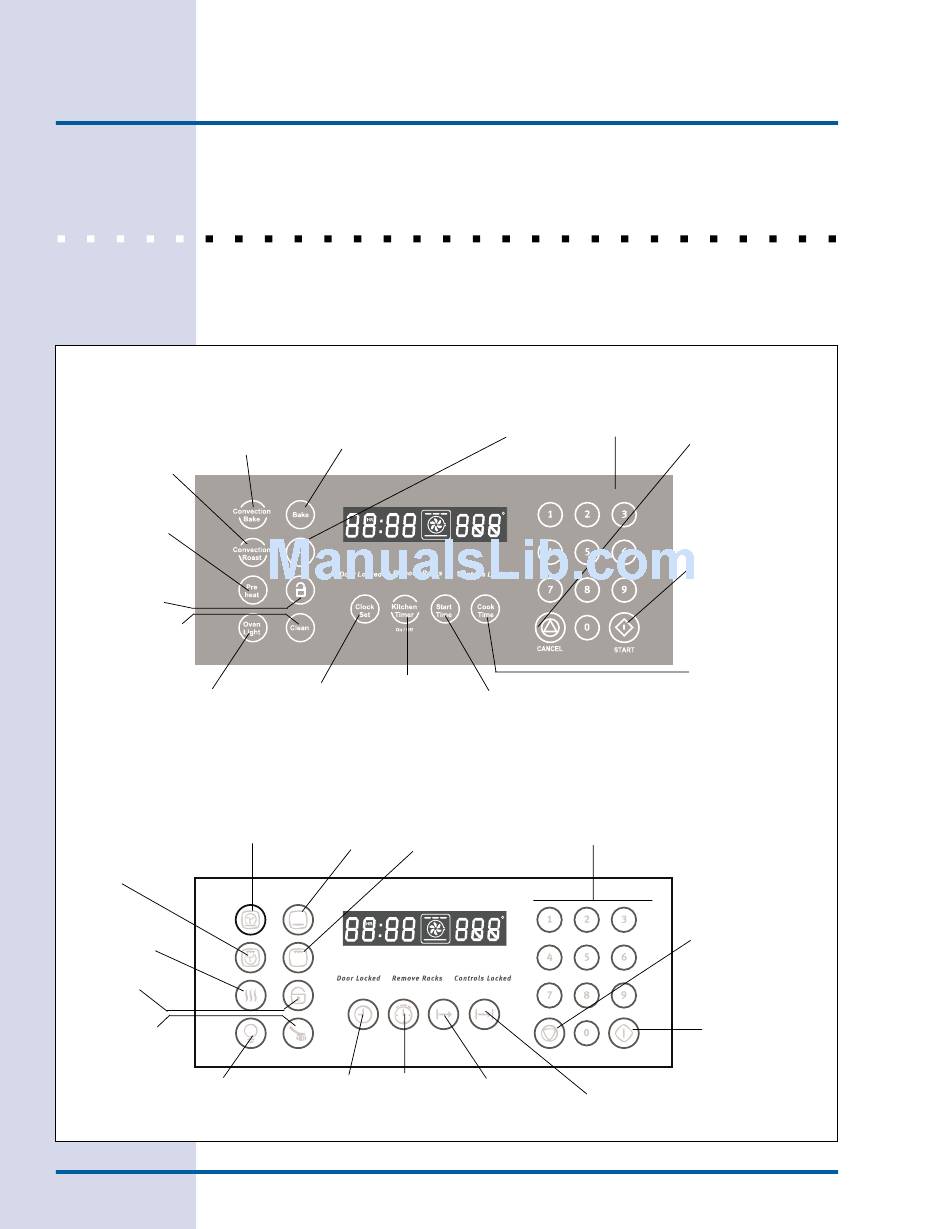

CONTROL PAD FUNCTIONS

Read the instructions carefully before using the oven. For satisfactory use of your
oven, become familiar with the various functions of the oven as described below. Note: The
graphics on your timer may look like one of those shown. Both are operating the same way.
Bake Convection
Roast
Pad- Used to
Convection
select the
Pad- Used to
convection baking
select the
mode.
convection
roasting mode.
Preheat Pad-
Used to select
the preheat
mode.
Lock Pad- Used
to disable all
oven function.
Clean Pad- Used
to select the self-
cleaning mode.
Clock Pad-
Oven Light- Used
Used to set
to turn the oven
the time of
light on and off.
day.
Note: See illustration above for pad description.
Bake Convection Pad
Roast
Convection
Pad
Preheat Pad
Lock Pad
Clean Pad
Oven Light
Bake Pad- Used
to enter the
normal baking
mode
temperature.
Kitchen Timer ON/
OFF Pad- Used to
set or cancel the
minute timer. The
minute timer does not
start or stop cooking.
Bake Pad Broil Pad
Clock Pad
Kitchen Timer
ON/OFF Pad
Broil Pad- Used 0 Thru 9 number
to select the pads- Used to
variable broil enter temperature
mode. and times.
Start Time Pad- Used to set
the desired start time for
baking or cleaning. Can be
used with BAKE or CLEAN
cycles to program a delayed
bake cycle.
0 Thru 9 number pads
Start
Cook
Time Pad Time Pad
Cancel- Used to
cancel any function
previously entered
except the time of day
and minute timer.
Push Cancel pad to
stop cooking.
Start- Used to start
all oven functions.
Not used with Oven
Light.
Cook Time Pad-
Used to enter the
length of the cooking
time.
Cancel pad
Start pad
