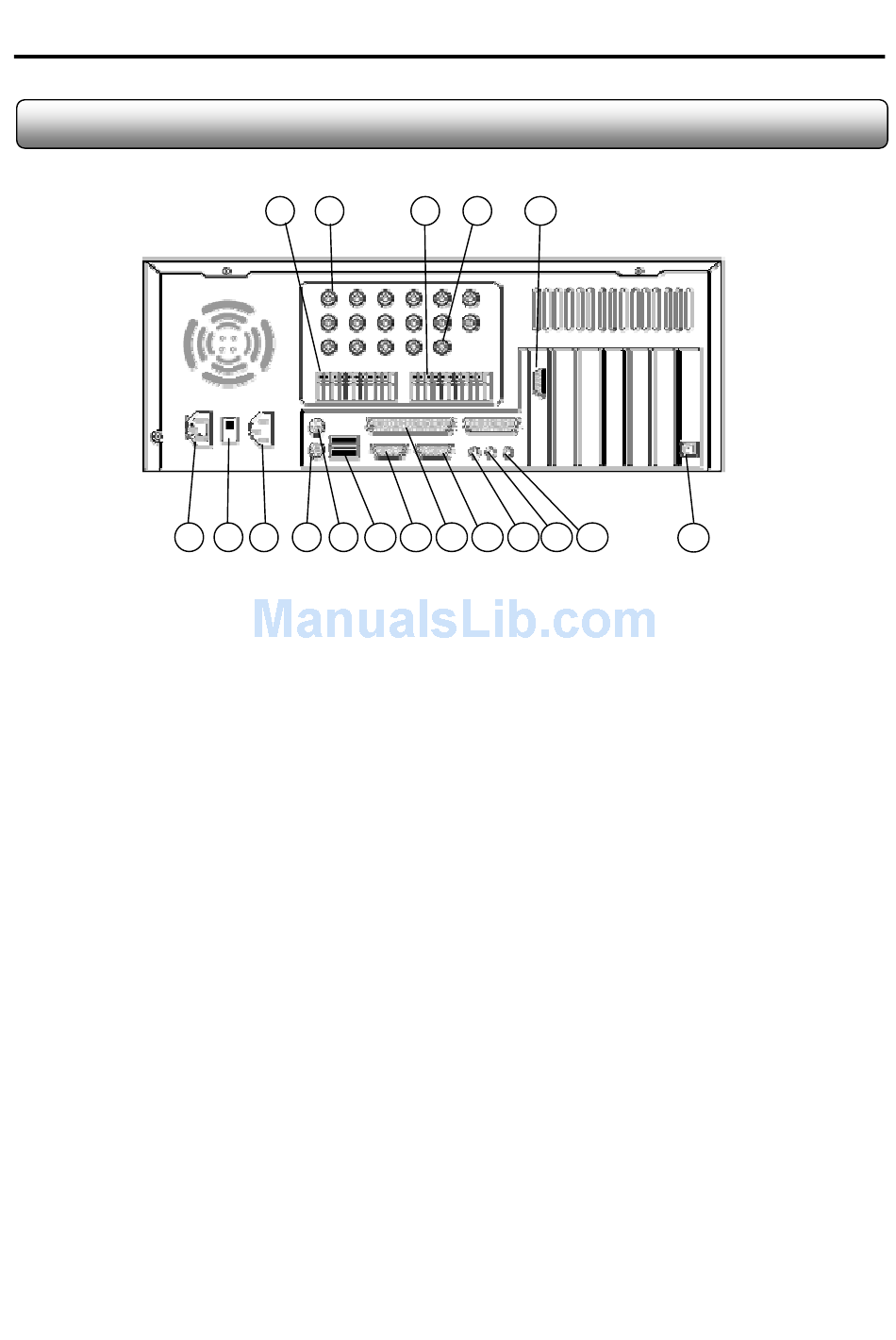

2.3 Rear View of X-Vision DVR
5
1. Sensor Input (8 Input Ports)
2. Camera Input (Ch1 ~ Ch16)
3. Alarm Output (5 Output Ports)
4. TV Out Port
5. AC Power Socket (Power In)
6. AC Power VAC Switch
(DIP Switch for 110/240 VAC)
7. AC Power Socket (Power Out)
8. PS2 Socket (Keyboard)
9. PS2 Socket (Mouse)
1 2
6 7 8 9 10 11 12 13
3 4 17
14 15 16
10. USB Port
11. COM1 Connector
(For PTZ device)
12. Print Connector
13. COM2 Connector
14. Line-out Connector
15. Line-in Connector
16. Mic Connector
17. Monitor Connector
18 Lan Connection Port
