4.7 Object Search

This function allows user to search the movement of object in the particular area selected on the date/time selected.
1. Press "Object Search Button" from Search Option Menu.
2. Select the channel and date/time to search object.
3. Press "Add" and draw regions on preview screen. To delete regions, press "Delete" and just draw rectangular regions on
the current regions drawn. To delete all regions, simply press "Delete All".

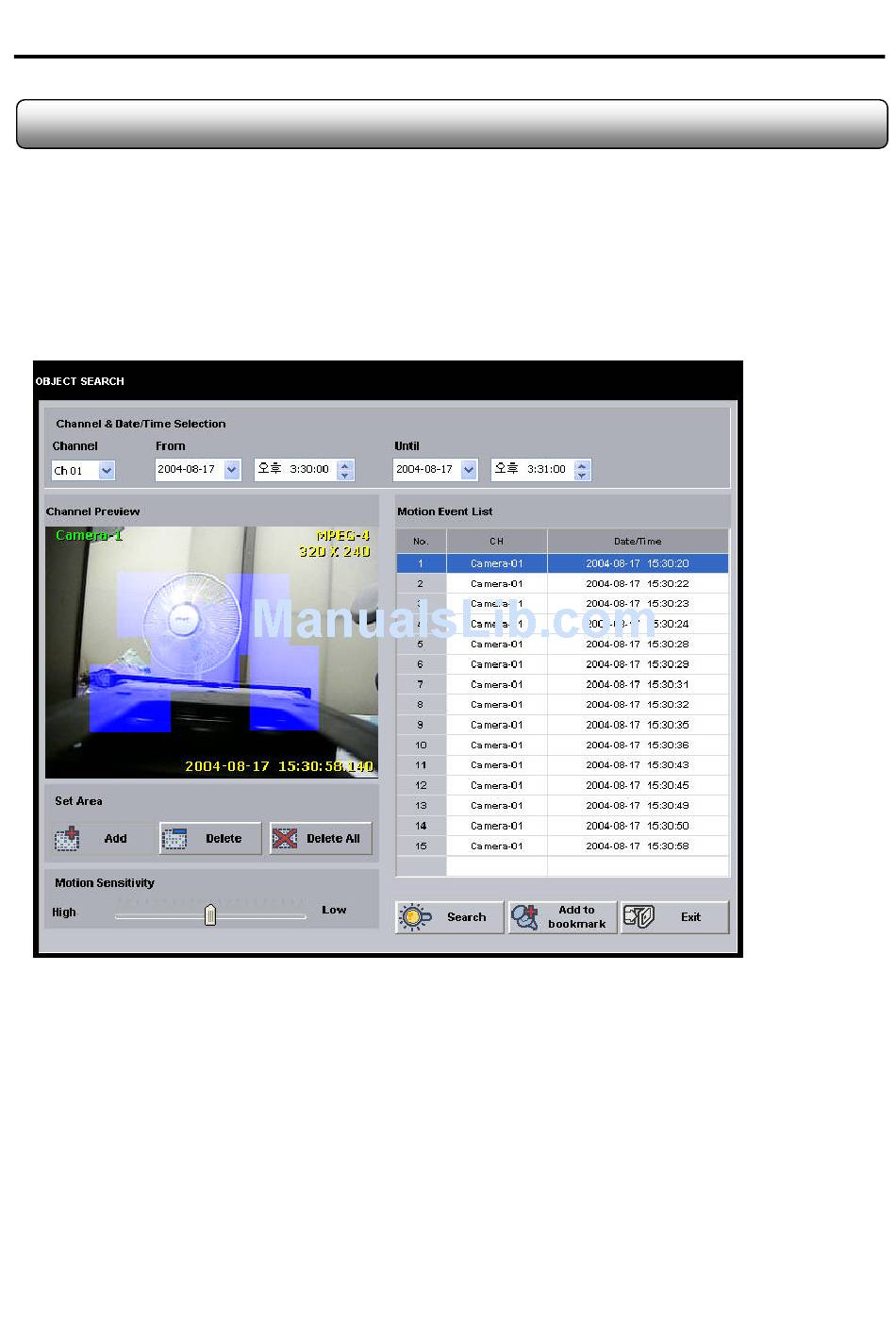

4. Press "Search". Then search result will be shown on Motion Event List as shown below.
Selecting one event from the list will show the image on preview screen.
To add one event to book, select one and press "Add To Bookmark".
