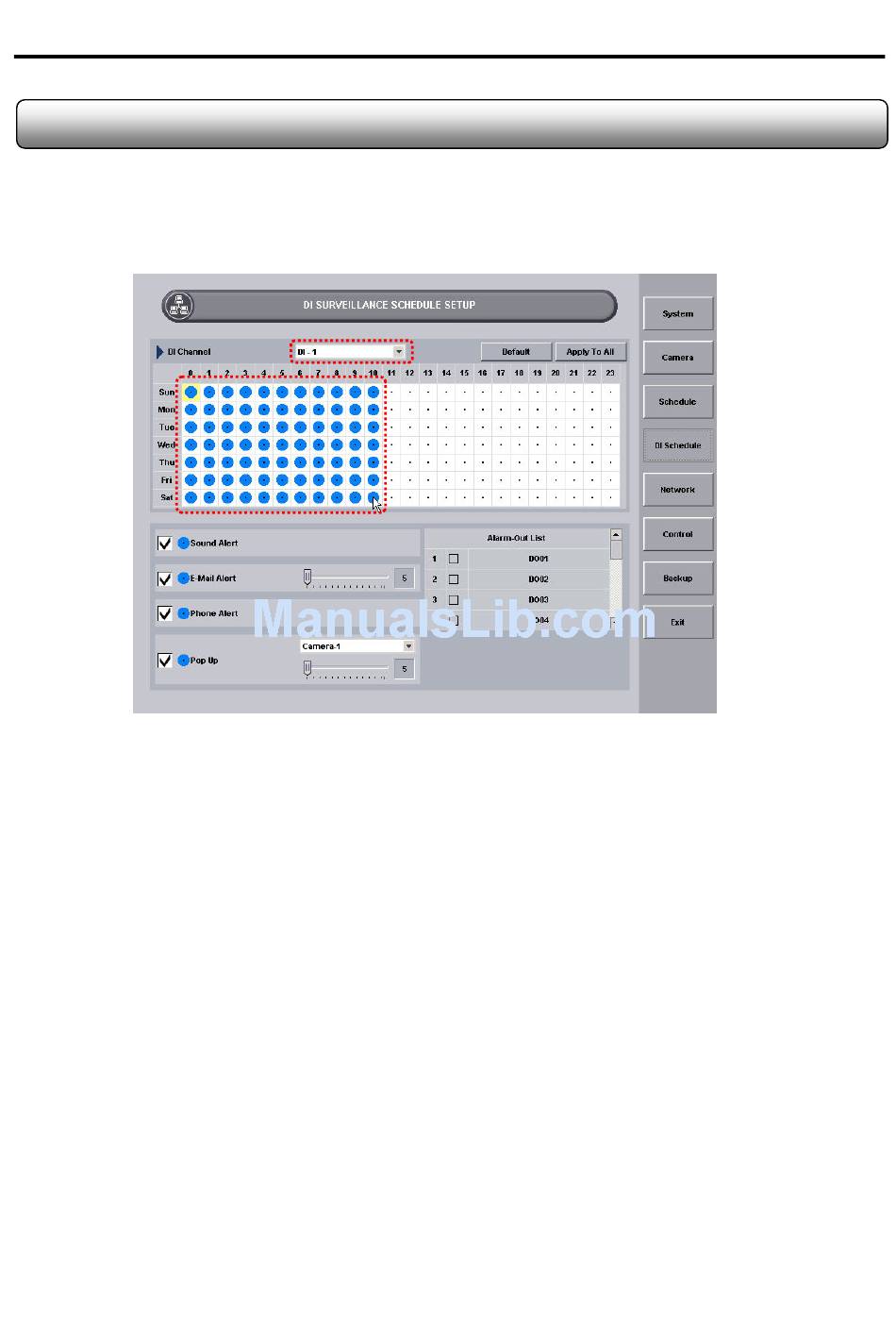

5.5 DI Surveillance
DI Surveillance Setup mode allows you to set DI surveillance schedule for each DI.
1. Select DI no. to set schedule. And drag and drop the mouse on the specific DAY and TIME zone to set schedule.
2. Check on alert option in order to send alert upon motion event.
- Sound Alert : makes beep sound through PC speaker
- E-mail : sends e-mail to registered address (Refer to E-mail Setup)
Alert delay time setting is 5 to 30 sec
- Phone Alert : calls to registered no. upon motion event (Refer to Dial-up Setup)
- Pop-up : displays one full screen of the camera view with motion event
Pop-up time can be set for 5 to 30 sec
- Alarm-Out : sends digital outputs (alarm, lamp and so on) checked upon DI event
3. Click Exit button to save and exit.
You can repeat the above steps in order to set schedule on multiple DAY and TIME zones.
