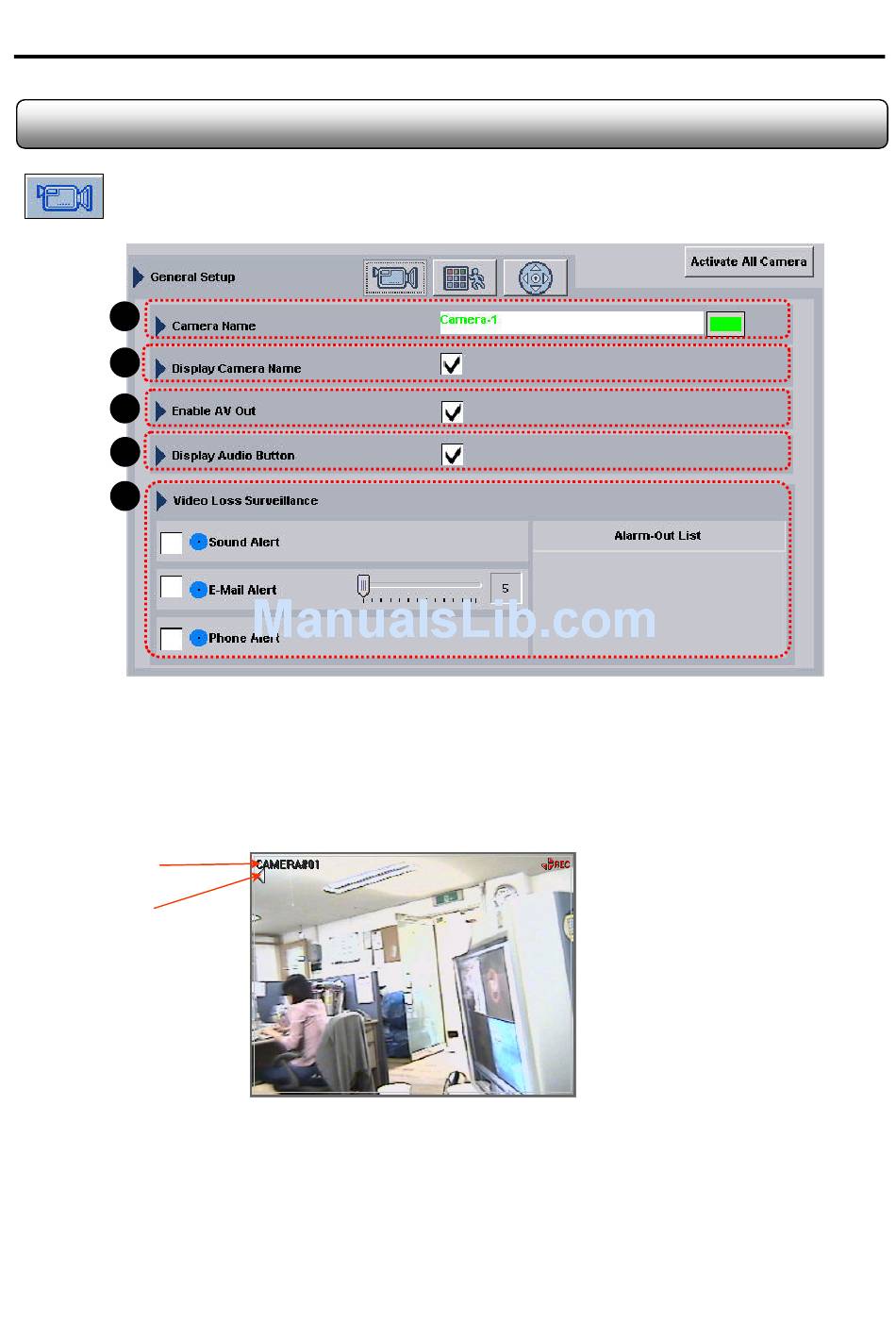

5.3.1 Setting General Camera Property
In order to set general camera properties, click GENERAL SETUP button and select each camera icon on
the above.
1
2
3
4
5
1. Camer Name : enter the camer name desired to be displayed on the image. The font color can be change by clicking
color button on the right end.
2. Display Camera Name : check on the box to display the camera name.
3. Enable AV Out : check on the box to allow the camera to be viewed through TV monitor.
4. Display Audio Button : check on the box to display audio icon on camera view as the below picture.
Camera Name
Audio Button
5. Video Loss Surveillance : check on each option to enable sending alert when there is no video signal
- Sound Alert : makes beep sound through PC speaker
- E-mail : sends e-mail upon video loss (Refer to E-mail Setup)
- Phone Alert : calls to registered no. upon motion event (Refer to Dial-up Setup)
- Alarm-Out : sends digital outputs (alarm, lamp and so on) checked upon video loss
