7.5 Connecting To Server

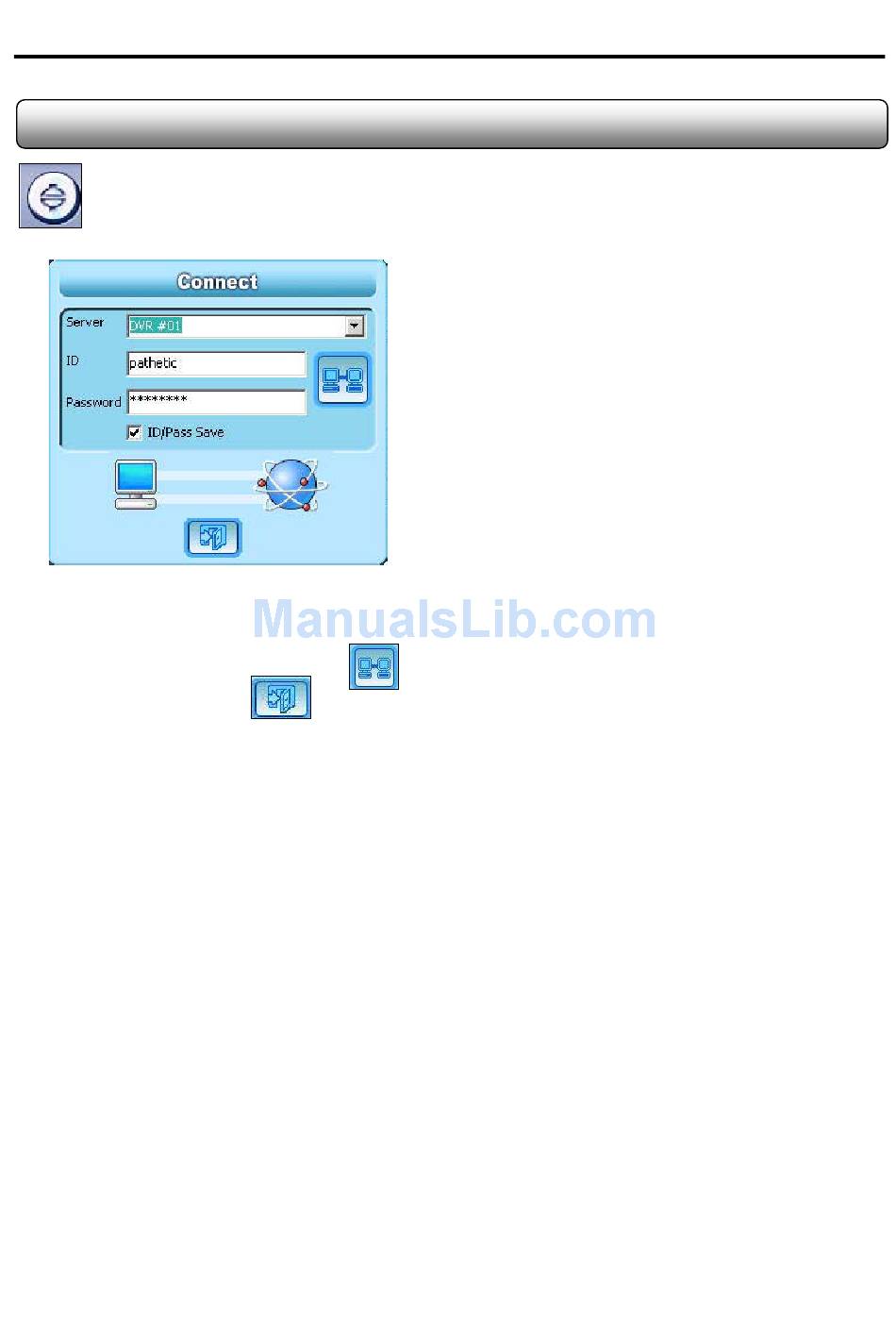

In order to server, just click CONNECTION BUTTON. Then the below dialog box will come out.
1. Select Server Name from the list.
2. Enter ID and Password, which should be registered on User Registeration Setup from server side.
3. Click connection button in order to connect.
4. Click cancel button to cancel.
LAN check box from Network Setup on server side should be checked on to allow remote access.
Please make sure that video 8100 (if not changed from server side) is forwared to the DVR if there is router or
firewall.
