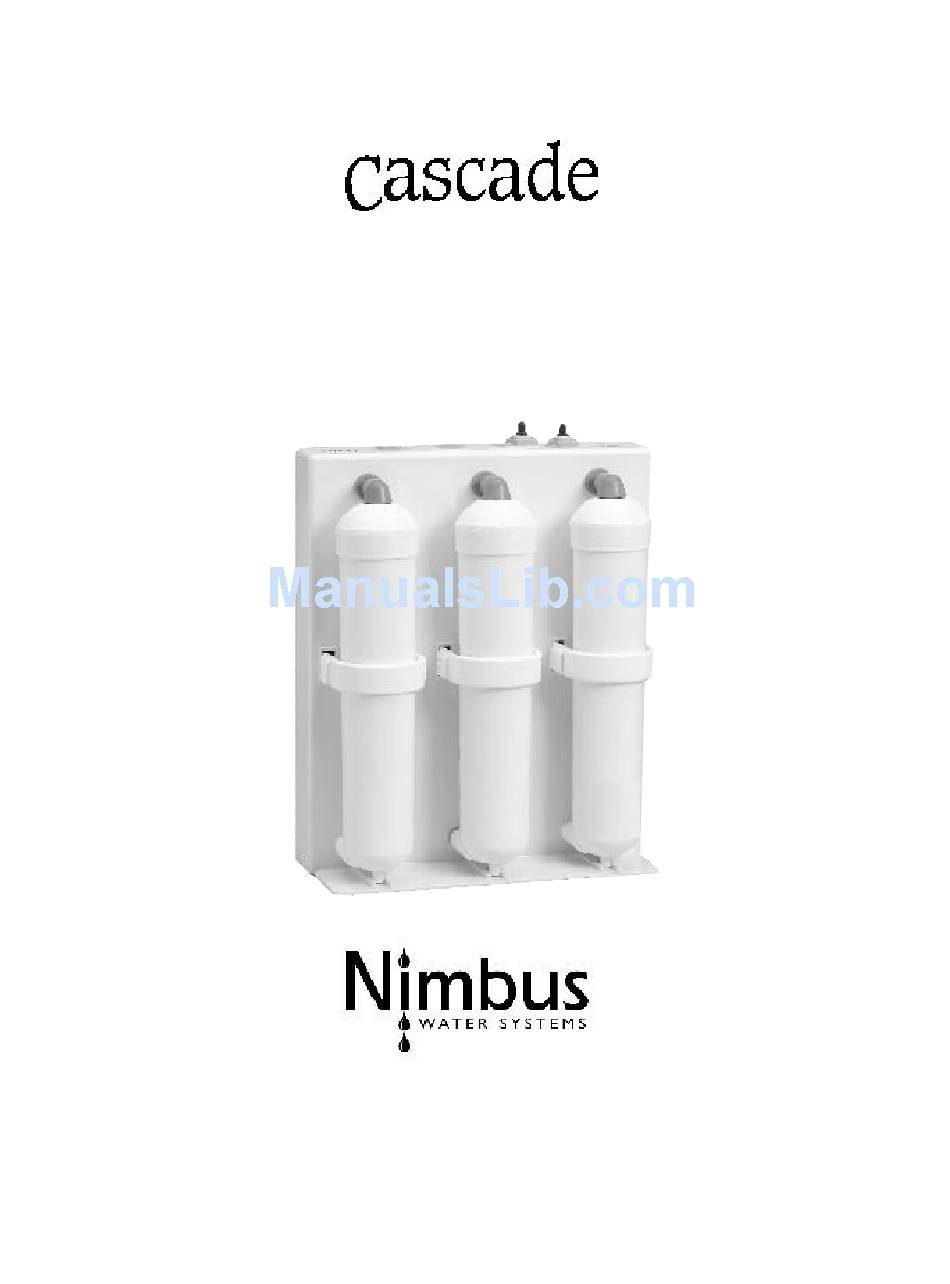

Page 1: Installation Guide
DRINKING WATER FILTRATION SYSTEM Owner's Manual & Installation Guide 41840 McAlby Ct, Ste.A, Murrieta, CA 92562 800-451-9343 Email: cascade@nimbuswater.com... -
Page 2: About This System
OWNER'S MANUAL About This System Congratulations on your purchase of the Cascade Drinking Water Filtration System. When properly maintained, this system will provide you with years of trouble-free service. The next three sections contain important information on the proper care and maintenance of your system, please take a few minutes to read through this information. -
Page 3: System Specifications
OWNER'S MANUAL System Specifications System Capability 2000 gpd Feed water Potable water Sediment Filter 25 micron Minimum feed pressure 40 psi Carbon Block Filters (2) 5 micron Maximum feed pressure 100 psi Manifold dimensions 12.5"W x 15"H x 4.5"D Minimum feed temp. 32°F Manifold weight (dry) 6.25 lbs. -
Page 4: Installation
INSTALLATION Before You Begin The following instructions outline a typical water treatment system installation. Consult local plumb- ing codes and building regulations as they may pose different or additional requirements for the installation. The installer is responsible for ensuring that the installation is in compliance with all applicable state and local regulations. - Page 5 INSTALLATION Parts Cascade Manifold Unit Sediment Pre-filter Carbon Block Filter Carbon Block Filter Cartridge Retainer clips (3) Faucet Kit (Fig E Push H a n d l e )* Main faucet body Polished faucet base Faucet base Gasket Large slotted washer White plastic spacer 3/8"...
- Page 6 INSTALLATION Feed Connection 1. Locate and turn off the angle stop valve on the cold water line feeding the sink where the Sierra unit is to be installed. This valve will usually be located under the sink on the pipe coming out of the wall.
- Page 7 INSTALLATION Push Handle Faucet For easier installation, attach tubing prior to mounting the faucet as described below. Refer to Figure 3 for the following instructions. 1. Insert polished faucet base (2) and gasket (3) onto base of faucet (1). 2. Slide white plastic spacer (5) open-end-up onto the threaded faucet stem.
- Page 8 INSTALLATION The Manifold Unit Determine the most practical under-the-sink location for placement of the Cas- cade manifold unit. Ensure that the specific location allows adequate access to the manifold unit for cartridge replacement. 1. Place the manifold in the selected location. If desired, the #6 self tapping screws may be used to secure the manifold unit in position by means of the top rear and bottom lip mounting holes.
- Page 9 INSTALLATION Activation/Flushing System Activation and Inspection 1. Check all tubing connections to ensure they are firmly seated. CHECK TO SEE THAT THE CAR- TRIDGE RETAINER CLIPS ARE PROPERLY INSTALLED WITH SLIDE LOCKS FULLY ENGAGED IN FRAME SLOTS. The retainer clips must be in place during long term, unattended operation of the system. Failure to keep the retaining clips in place could result in accidental leaks and flooding.
-
Page 10: Maintenance
MAINTENANCE Replacements To order replacement parts, please contact your Cascade dealer. Use of non-Cascade replacement parts will invalidate the Warranty as set forth in Section E of the Owner's Manual. Description Part No. Pre-Filter, Sediment 104380 Carbon Block Filter 104851 2 / 3 Cartridge Retainer Clip 102131... - Page 11 © Nimbus Water Systems 2003 P/N 102863...
