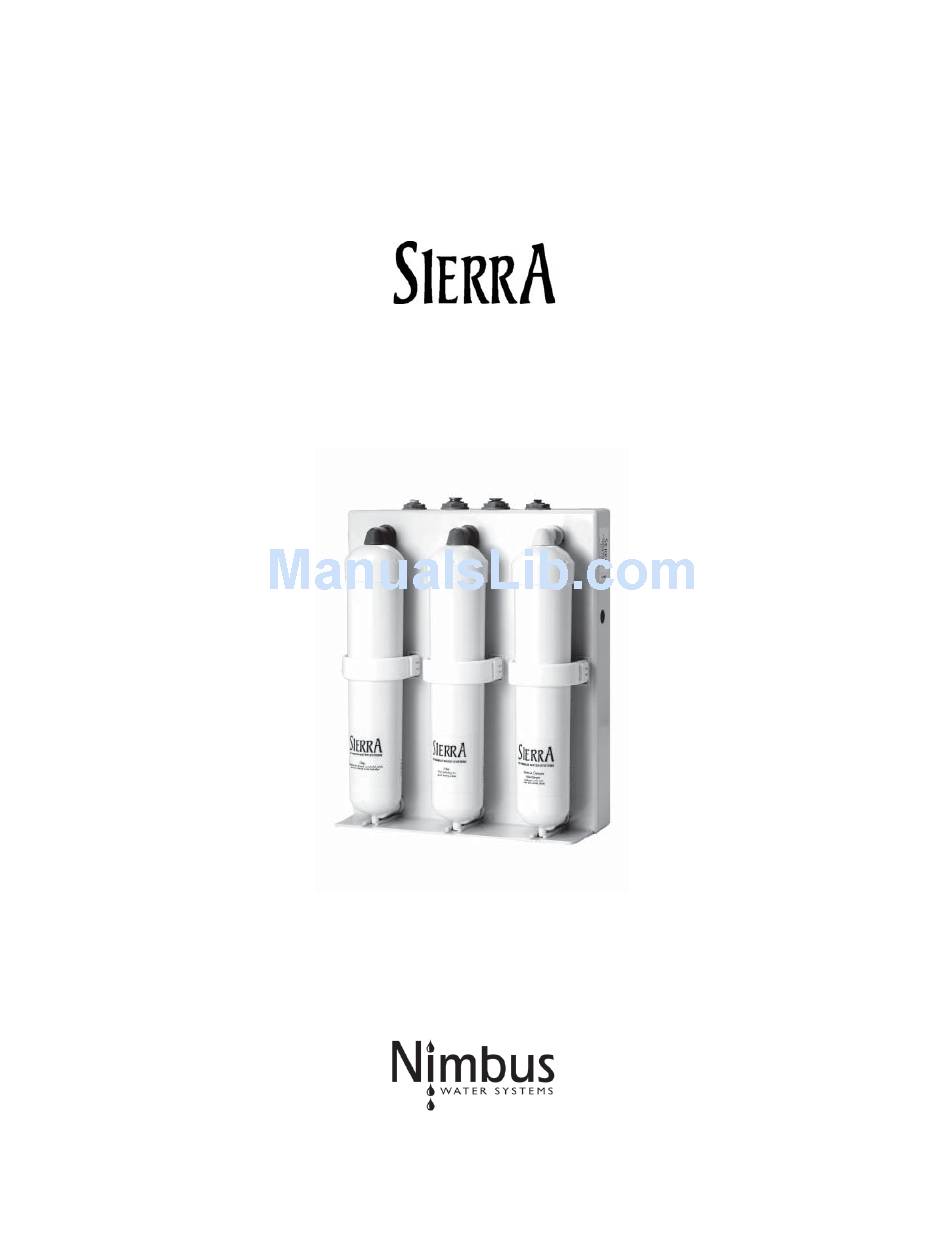

- Page 1 REVERSE OSMOSIS DRINKING WATER SYSTEM Distributed By: Roanoke Water Treatment, Inc. 1948 Franklin Road Roanoke, VA 24014 (540) 982-2324 41840-A McAlby Court, Murrieta, CA 92562 04/09 (800) 451-9343, email: sierra@nimbuswater.com...
- Page 2 Distributed By: Roanoke Water Treatment, Inc. 1948 Franklin Road Roanoke, VA 24014 (540) 982-2324...
- Page 3 Please take a few minutes to read through this information. The Nimbus Sierra reverse osmosis system must be serviced on a regular basis to maintain eff ciency and to safeguard water quality. Each system is equipped with a pre-f lter, a membrane f lter, and a post-f lter. These cartridges work together to remove potential contaminants from your tap water and must be replaced at regular intervals.
-
Page 4: Warranty
This Warranty does not cover repairs required due to use of non-standard Sierra parts, unauthorized alterations of the unit, or failure of a unit caused by such alterations or by unauthorized repairs. -
Page 5: Installation Overview
Installation Overview The following instructions outline a typical water treatment system installation. Consult local plumbing codes and building regulations as they may pose dif ferent or additional requirements for the installation. The installer is respon- sible for ensuring that the installation is in compliance with all applicable state and local regulations. This system has been designed for installation by a licensed professional such as a contractor or plumber. - Page 6 Feed and Drain Connections Feed Connection 1. Locate and turn off the angle stop valve on the cold water line feeding the sink where the system is to be installed. This valve will usually be located under the sink on the pipe coming out of the wall. 2.
- Page 7 Push Handle Airgap Faucet For easier installation, attach all tubing prior to mounting the faucet. 1. Insert polished faucet base onto base of faucet. 2. Push the 1/4” yellow drain tubing onto the 1/4” barb f tting. This tube must be of suff cient length to reach the yellow drain connection on the manifold.
-
Page 8: Manifold Installation
7. Obtain the Shutoff Warning label and aff x it to the manifold unit so that it is directly visible. The Sierra system is now connected and ready for initial test and preparation. - Page 9 System Activation and Flushing System Activation 1. Check all tubing connections to ensure they are f rmly seated. CHECK TO SEE THAT THE CARTRIDGE RETAINER CLIPS AND LOCKS ARE PROPERLY ENGAGED. Failure to keep the retaining clips in place could result in accidental leaks and f ooding.
- Page 10 Checklist 1. System is located where it will not be subject to physical impacts or rough contact by heavy objects. 2. Feed water pressure to the unit is no less than 40 psi and no greater than 80 PSI. 3. Ensure the plastic retainer clips that holds the cartridges in place are fully engaged and locked in place. slide locks must snap into place in the slots.
-
Page 11: Cartridge Replacement
Cartridge Replacement 1. Close the feed water shut-off valve. 2. Close the tank shut-off valve. 3. Open the dispensing faucet to relieve system pressure. Close dispensing faucet when f ow has stopped. 4. Pull the unit from the installed location. 5.
