INSTALLATION
2

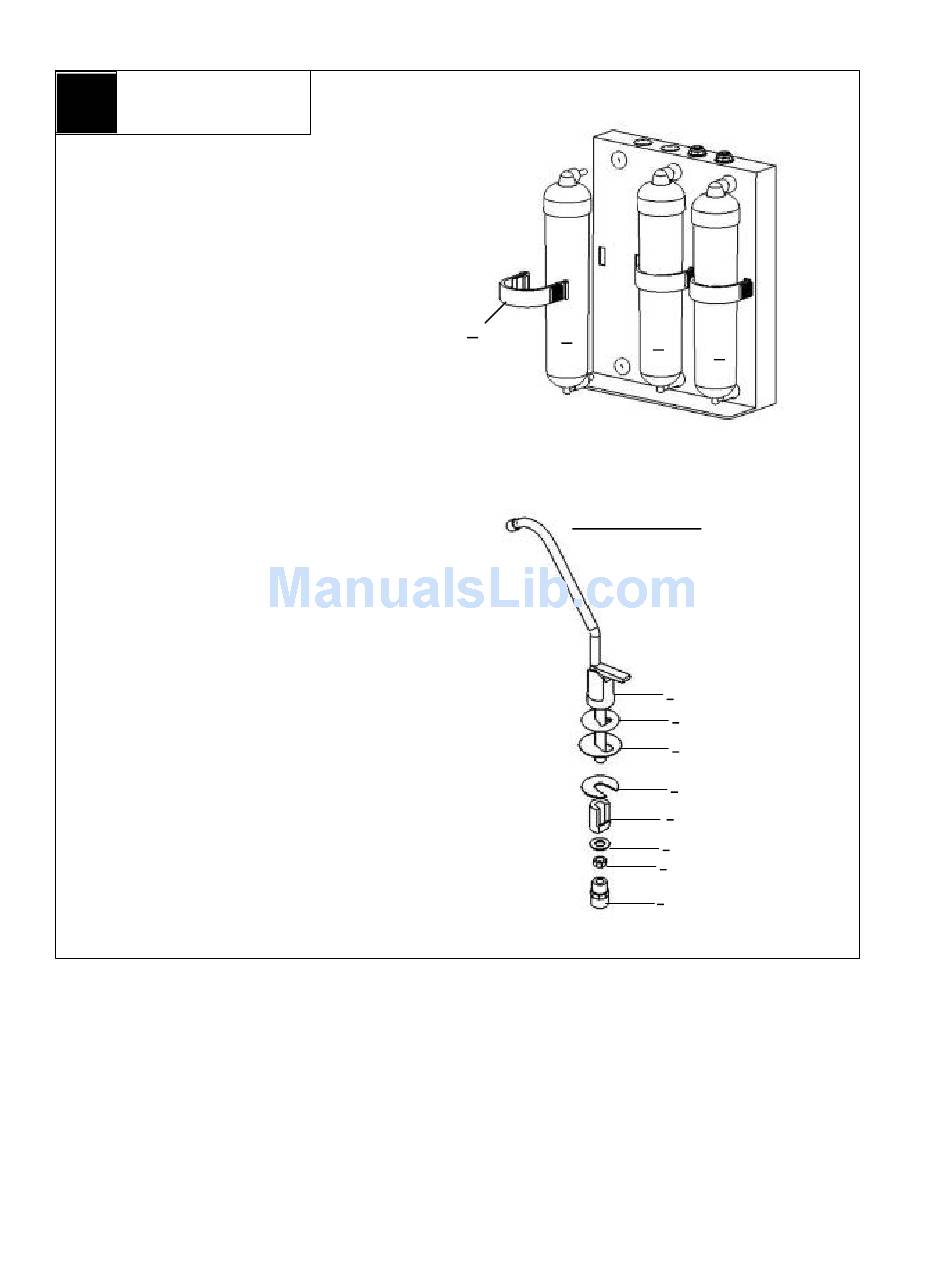

Parts
Cascade Manifold Unit
1.
Sediment Pre-filter
2.
Carbon Block Filter
3.
Carbon Block Filter
4.
Cartridge Retainer
clips (3)
Faucet Kit (Fig E Push
H a n d l e )*
1.
Main faucet body
2.
Polished faucet base
3.
Faucet base Gasket
4.
Large slotted washer
5.
White plastic spacer
6.
3/8" washer
7.
Mounting lock nut
8.
Quick-connect fitting
* Parts bag may contain items not needed
for this system configuration
Not Shown
4' blue tubing
4' green tubing
Date of Installation Labels (3)
Feed Valve Warning Tag
Feed Shut-off Warning Label
Self tapping Mounting Screws (2)
4
1
E- Push Handle
4
2
3
1
2
3
4
5
6
7
8
