INSTALLATION
5
The Manifold Unit
Determine the most practical under-the-sink location for placement of the Cas-
cade manifold unit.
manifold unit for cartridge replacement.
1. Place the manifold in the selected location. If desired, the #6 self tapping
screws may be used to secure the manifold unit in position by means of the top
rear and bottom lip mounting holes.
2. Route the blue tubing from the faucet assembly to the blue coded connector, marked
Feed, on the top of the manifold unit.
3. Take the green tubing already connected to the water feed valve and run it to the
manifold unit arranging the lie as desired. Trim the end of the green tube as described
in step 5 above then insert it into the green coded connector.
approximately 1/2" into the connector until fully seated.
4. Obtain the Shutoff Warning label from either the parts bag or loose with these
instructions and affix the label in the vicinity of the manifold unit so that it is directly
visible in the event that a cartridge is to be replaced. The Cascade Drinking Water
Filtration system is now connected and ready for initial test and preparation.

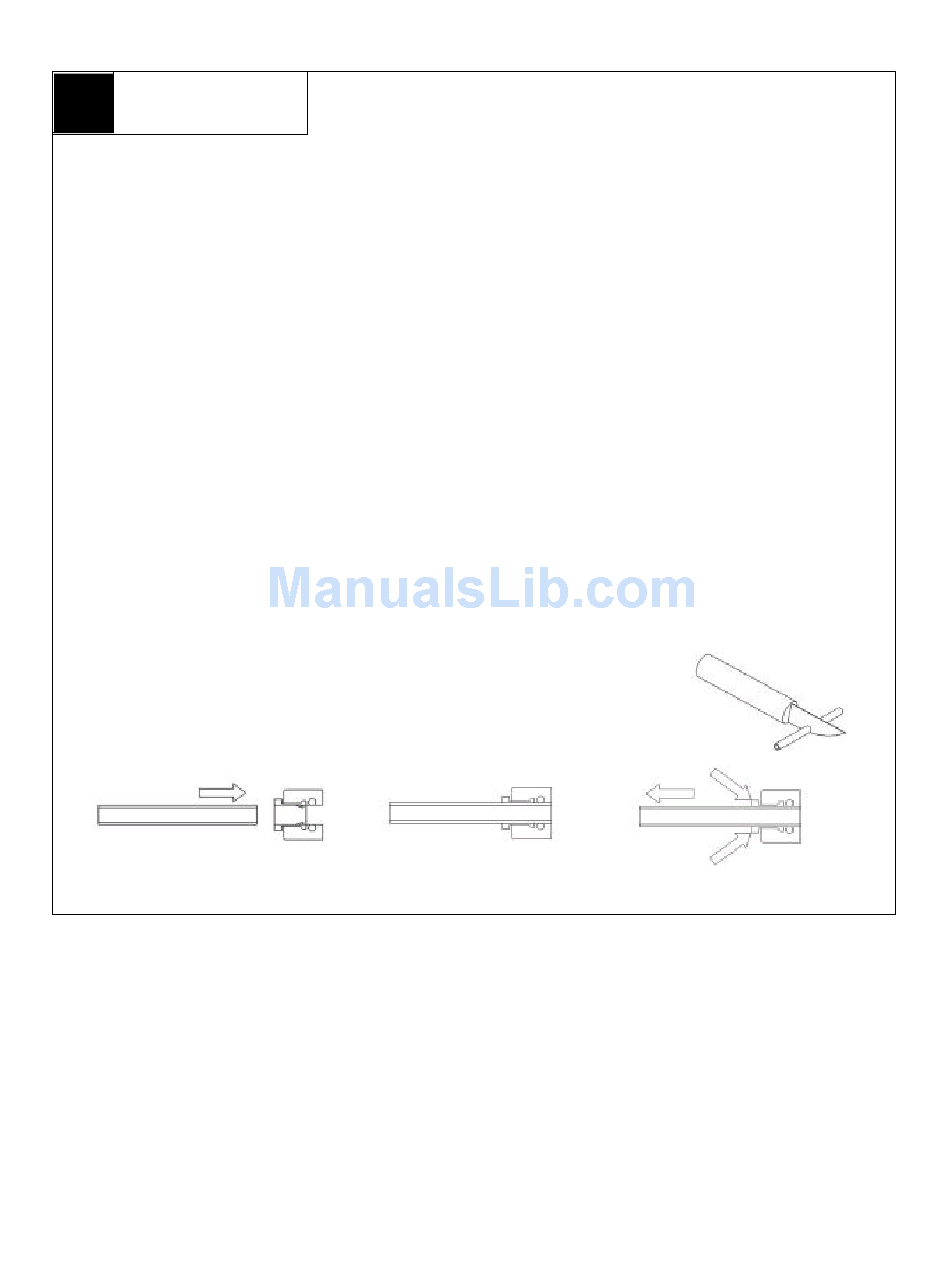

TUBING HINTS: Use a sharp knife or tubing cutter to cut the
tubing squarely, being sure to remove all burrs. Then insert the
tubing firmly until it stops. To remove the tubing, push against
the collet while pulling on the tubing.
Fig. 4
Ensure that the specific location allows adequate access to the
Fig. 5 Fig. 6
7
Push the tubing
Fig. 3
