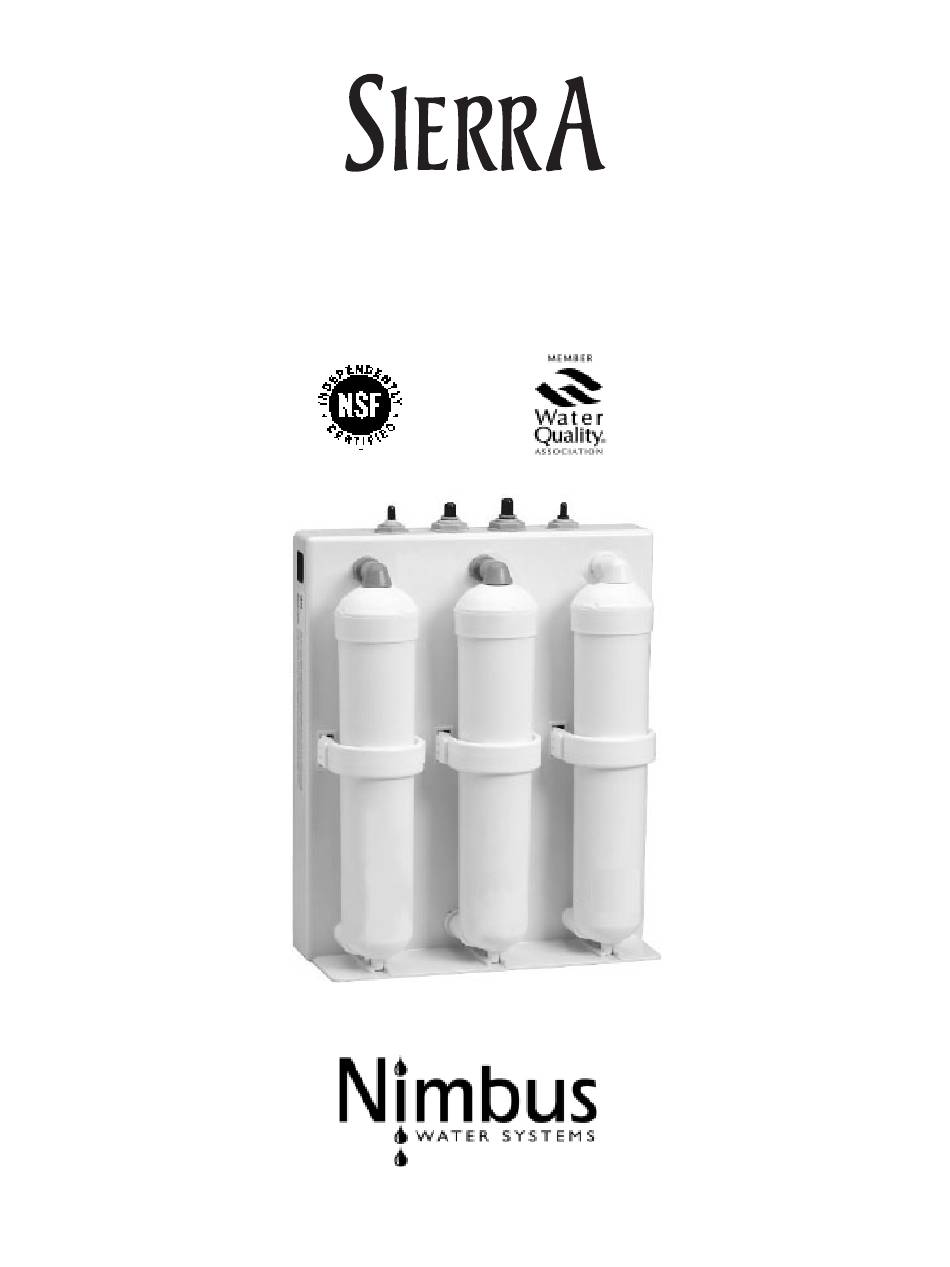

Nimbus Water Systems Sierra NS-1N30 Owner's Manual & Installation Manual

Reverse osmosis drinking water system

Advertisement

Quick Links

NS-1N30
REVERSE OSMOSIS DRINKING WATER SYSTEM
Owner's Manual &
Installation Guide
288 Distribution Street San Marcos, CA. 92078-4538
800-824.4915 Email: sierra@nimbuswater.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sierra NS-1N30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nimbus Water Systems Sierra NS-1N30

  • Page 1 NS-1N30 REVERSE OSMOSIS DRINKING WATER SYSTEM Owner's Manual & Installation Guide 288 Distribution Street San Marcos, CA. 92078-4538 800-824.4915 Email: sierra@nimbuswater.com...
  • Page 2: About This System

    OWNER'S MANUAL About This System Congratulations on your purchase of the Sierra reverse osmosis system. When properly maintained, this system will provide you with years of trouble-free service. The next sections contain important information on the proper care and maintenance of your system, please take a few minutes to read through this information.
  • Page 3: Maintenance

    MAINTENANCE Replacements Replacement part numbers are indicated on the side of each filter cartridge. The table below lists cartridge replacement part numbers as well as part numbers for other parts you may need to maintain your unit. To order replacements, please call 800-451-9343 to be directed to an authorized Nimbus dealer. This reverse osmosis system contains a replaceable treatment component, critical for the effective reduction of total dissolved solids.
  • Page 4: Performance Data Sheet

    OWNER'S MANUAL Performance Data Sheet System Performance Feed Water Requirements Daily production rate 42.8 L/d Feed water Potable water (11.3 gpd) Feed pressure 275 kPa, (40 psi) to 552 kPa (80 psi) Efficiency Rating 8.8% Feed temperature 1°C (33°F) to 38°C (100°F) Recovery Rating Total dissolved solids 2,000 mg/L maximum...
  • Page 5: Arsenic Facts

    OWNER'S MANUAL Arsenic Facts Arsenic (abbreviated AS) is a naturally occurring contaminant found in many ground waters. Arsenic in water has no color, taste or odor. It must be measured by a lab test. Public water utilities must have their water tested for arsenic. You can get the results from your own water utility. If you have your own well, you can have the water tested.
  • Page 6: System Warranty

    OWNER'S MANUAL System Warranty The Nimbus Sierra Limited Warranty extends to the original purchaser of the system. This warranty covers all parts and factory labor needed to repair any Manufacturer-supplied item that proves to be defective in material, workmanship or factory preparation. The above-mentioned warranty applies for the first full calender year from date of purchase.
  • Page 7: Installation

    INSTALLATION Before You Begin The following instructions outline a typical water treatment system installation. Consult local plumbing codes and building regulations as they may pose different or additional requirements for the installation. The installer is responsible for ensuring that the installation is in compliance with all applicable state and local regulations.
  • Page 8 INSTALLATION Parts Sierra Manifold Unit Pre-filter Carbon post-filter Reverse osmosis membrane filter Cartridge retainer clips (3) Drain saddle unit Feed water connection assembly (shown with shut-off valve attached) Parts Kit (not shown) 1/4" plastic tubing insert 1/4" plastic ferrule Date of Installation labels (3) Feed valve warning tag Feed shut-off warning label Self tapping mounting screws (4)
  • Page 9 INSTALLATION Feed Connection 1. Locate and turn off the angle stop valve on the cold water line feeding the sink where the Sierra unit is to be installed. This valve will usually be located under the sink on the pipe coming out of the wall.
  • Page 10: Drain Connection

    INSTALLATION Drain Connection Note: The drain saddle assembly must be installed before the 'P' trap. Do not install the drain saddle assembly between the 'P' trap and the wall. Fig. 3 1. Position drain saddle assembly (Fig. 3) on drain pipe under sink between the P trap and the sink connection.
  • Page 11 INSTALLATION Drilling The Sink (continued) Fig. 5 Enamel, Porcelain-Over-Steel, or Cast Iron Sink 1. With drill motor place 1/4" masonry drill bit at selected location. Before starting rotation, firmly apply downward pressure until a slight crunching sound is heard. This will fracture a small area of the enamel/ porcelain and prevent the bit from “walking”.
  • Page 12 INSTALLATION Push Handle Faucet For easier installation, attach all tubing prior to mounting the faucet. 1. Insert polished faucet base (refer to figure H page 5) onto base of faucet. 2. Install the 1/4” yellow drain tubing onto the 1/4” barb fitting. This tube must be of sufficient length to reach the yellow manifold drain connection.
  • Page 13 INSTALLATION The Manifold Unit Determine the most practical under-the-sink location for placement of the Sierra manifold unit and the companion reservoir tank. Ensure that the specific location allows adequate access to the manifold unit for cartridge replacement and to the tank for tank- valve operation. 1.
  • Page 14 INSTALLATION Activation/Flushing System Activation and Inspection 1. Check all tubing connections to ensure they are firmly seated. CHECK TO SEE THAT THE CARTRIDGE RETAINER CLIPS ARE PROPERLY ENGAGED. The retainer clips must in place during long term, unattended operation of the system. Failure to keep the retaining clips in place could result in accidental leaks and flooding.
  • Page 15 INSTALLATION Check List 1. Sierra unit and tank are located where they will not be subject to physical impacts or rough contact by heavy objects. 2. Feed water pressure to the unit is no less than 40 psi and no greater than 80 PSI. 3.
  • Page 16 MAINTENANCE Cartridges/Tank Refer to Section B in the Owner's Manual portion of this guide for a suggested replacement schedule. Cartridge Replacement 1. Close the feed water shut-off valve. 2. Close the tank shut-off valve. 3. Open the R/O dispensing faucet. 4.
  • Page 17 ©Nimbus Water Systems PN103257 2004...
  • Page 18 ©Nimbus Water Systems PN103257 2004...
