RS-232 Interface

RS-232 Interface

Note: Unlike USB, the RS-232 interface does not draw its power from the host computer.

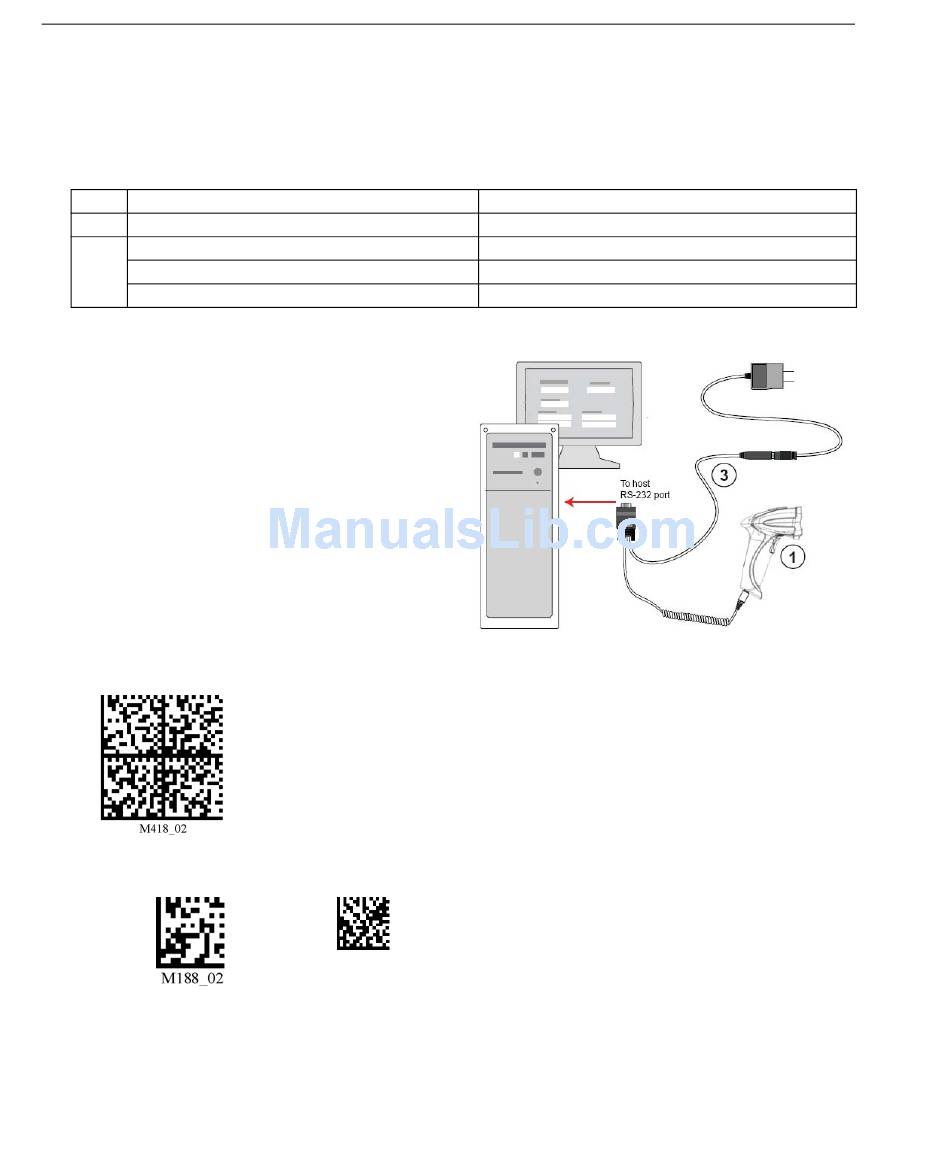

RS-232 Configuration
Item
1 HS-2D Handheld Reader
RS-232 Interface Kit (USA)
3 RS-232 Interface Kit (Europe)
RS-232 Interface Kit (UK)
Installation Steps for RS-232
1. Power-off the host computer.
2. Connect the 8-pin mini-DIN on the
cable to the HS-2D.
3. Connect the 9-pin D-sub connector to
the host computer's serial port.
4. Connect the cable to the power supply.
5. Plug in the power supply and power-on
the host computer.
6. Start up a terminal program (such as
ESP's Terminal view or HyperTerminal)
and set to 57.6K baud, 8 data bits,
none parity, and 2 stop bits.
7. Read the Reset to RS-232 Factory
Defaults symbol below.
8. Read the Save Settings symbol.
1-4
Description
Reset to RS-232
Factory Defaults
Save
Settings
Test Symbol
(ABCDEFGHIJKLMNOP)
Part Number
98-000107-01
98-000074-04
98-000074-05
98-000074-06
RS-232 Configuration
HS-2D Handheld Reader User's Manual
