Global American 3301390 User Manual

Single board computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

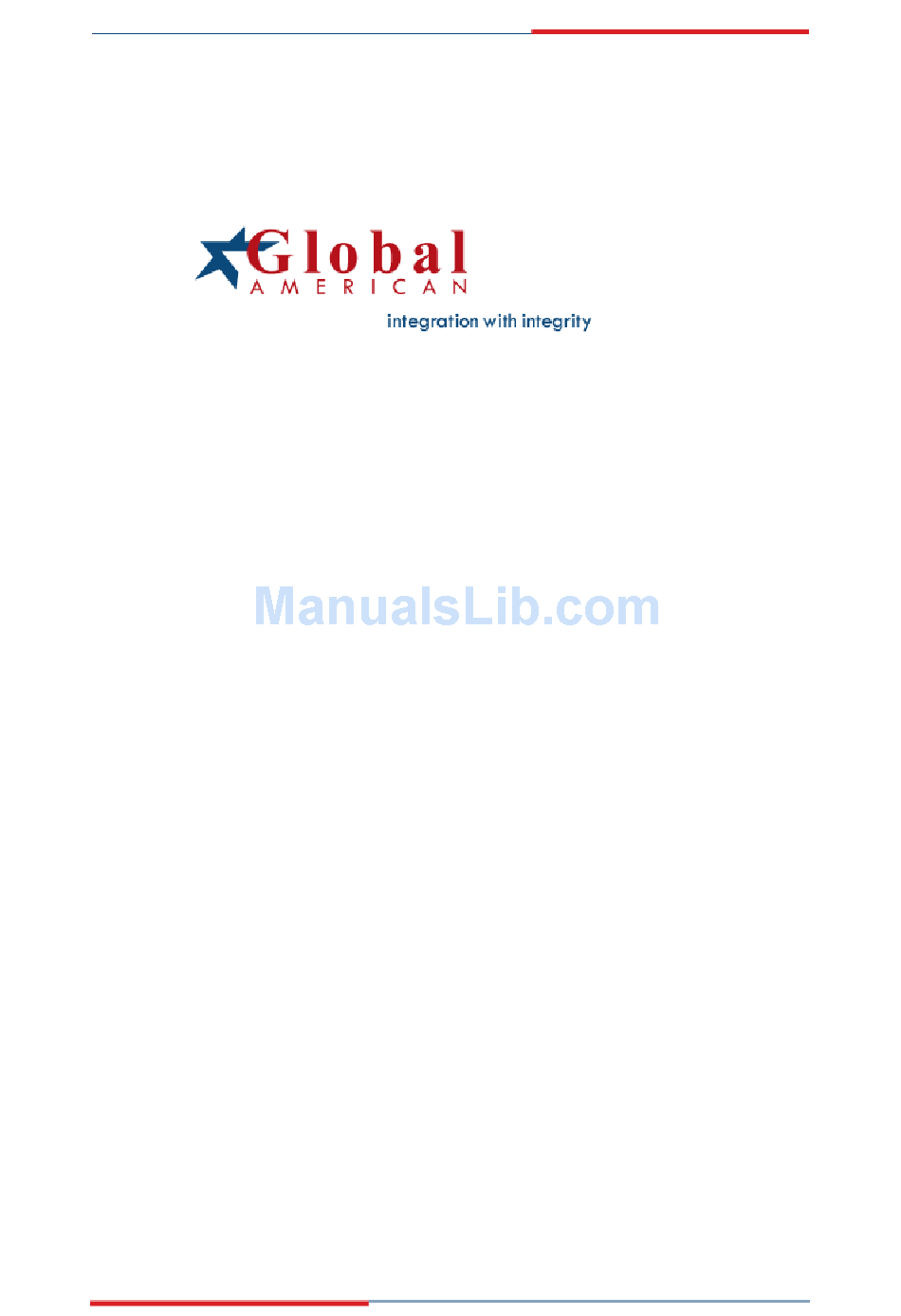

User's Manual
Single Board Computer 3301390
Version 1.0, 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3301390 and is the answer not in the manual?

Questions and answers

Related Manuals for Global American 3301390

Summary of Contents for Global American 3301390

  • Page 1 User’s Manual Single Board Computer 3301390 Version 1.0, 2005...
  • Page 2 Copyrights This manual is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer.

  • Page 3: Table Of Contents

    Preface Table of Contents How to Use This Manual Chapter 1 System Overview.......................1-1 1.1 Introduction..........................1-1 1.2 Check List ............................. 1-3 1.3 Product Specification ........................1-3 1.3.1 Mechanical Drawing ......................1-6 1.4 System Architecture ........................1-7 Chapter 2 Hardware Configuration ................... 2-1 2.1 Jumper Setting ..........................

  • Page 4: How To Use This Manual

    Preface How to Use This Manual The manual describes how to configure your 3301390 series system to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of Single Board Computer.

  • Page 5: Chapter 1 System Overview

    Additionally providing I/O interface for today's scalable application, PCI Express bus, 3301390 offers PCI- Express x 16 bus for ATI Mobility M22 graphic controller featuring advanced display quality and dual independent display support, such as CRT, LVDS, DVI and TV-out.
  • Page 6 Audio in/out, Watch-dog timer, Type II CompactFlash socket, 8 USB 2.0 ports (two ports dedicated for keyboard & mouse), one IDE channel and four SATA ports 3301390 is its series model that supports both CRT and LVDS display interfaces by Intel® 915GM integrated graphics engine. Notice for users of 3301390 series: Its graphic engine classifies 3301390 series.

  • Page 7: Check List

    System Overview Check List The 3301390 series package should cover the following basic items: • One 3301390 single board computer • One dual Serial ports cable kit • One Parallel port cable kit (2.0mm pitch) • One FDC cable •...
  • Page 8 1GB memory Bootable for no drives on primary channel • On-board VGA o ATI Mobility M22 (3301390 ) graphic controller works in combination with a 64MB video memory o GMCH (3301390 ) integrated graphics, 266MH core frequency; share system memory up to 224MB for system with greater than or equal to...
  • Page 9 System Overview o Support Dual channel LVDS interface (3301390) o Support TMDS interface for DVI display (3301390) o Support TV output (3301390) On-board Ethernet LAN Marvell 88E8053 or 88E8052 Gigabit Ethernet to support RJ-45 connector High Driving GPIO Support 8 programmable high driving GPIO...

  • Page 10: Mechanical Drawing

    System Overview 1.3.1 Mechanical Drawing 3301390 Series User s Manual...

  • Page 11: System Architecture

    ICH6 supports PCI bus interface, APM, ACPI compliant power management, USB ports, SMBus communication, Ultra DMA 33/66/100 IDE channel and SATA ports. For 3301390 , ATI Mobility M22 takes the place of 915GM to feature higher– end graphic performance and additional display interface – DVI.

  • Page 12: Chapter 2 Hardware Configuration

    Hardware Configuration This chapter gives the definitions and shows the positions of jumpers, headers and connector. All of the configuration jumpers on 3301390 is in the proper position. The default settings shipped from factory are marked with a star (Ì).
  • Page 13 J 24 JP 9 J 25 J 31 J 36 J 27 J 29 J 33 Figure 2-1 3301390 Jumper/Connector Location JP1 : LVDS Power Level Function 3.3V Ì JP2 : CPU Type Function Banias Ì Dothan JP3 : LVDS Back-light Power Level Function 3.3V Ì...
  • Page 14 AT Power Supply JP7 : RTC CMOS Clear Jumper Setting Function Clear CMOS Contents Normal Operation Ì JP8 : LVDS Panel Resolution Selection (Only for 3301390 ) Function 1-2,3-4,5-6,7-8 Panel type select by BIOS setting Ì 3-4,5-6,7-8 640x480 18bit 1CH...

  • Page 15: Connector Allocation

    Hardware Configuration JP8 : LVDS Panel Resolution Selection (Only for 3301390 ) Function Disable panel Ì 1024X768 18bit 1CH 1280X1024 24bit 2CH 1400X1050 18bit 2CH Connector Allocation I/O peripheral devices are connected to the interface connectors on this single board computer.
  • Page 16 J4 : LVDS Panel Connector Signal Description PIN No. Signal Description VDD_LVDS VDD_LVDS LVDSA_DATA0 LVDSA_DATA0# LVDSA_DATA1 LVDSA_DATA1# LVDSA_DATA2 LVDSA_DATA2# LVDSA_DATA3 LVDSA_DATA3# LVDSA_CLKP LVDSA_CLKN Ground Ground LVDSB_DATA0 LVDSB_DATA0# LVDSB_DATA1 LVDSB_DATA1# LVDSB_DATA2 LVDSB_DATA2# LVDSB_DATA3 LVDSB_DATA3# LVDSB_CLKP LVDSB_CLKN Ground Ground 3301390 Series User s Manual...
  • Page 17 Data 0 Error# Data 1 Initialization# Data 2 Printer Select IN# Data 3 Ground Data 4 Ground Data 5 Ground Data 6 Ground Data 7 Ground Acknowledge# Ground Busy Ground Paper Empty Ground Printer Select 3301390 Series User s Manual...
  • Page 18 Disk Change# J10 : External Wake on Ring Header PIN No. Signal Description 5VSB J11 : CD-IN Header PIN No. Signal Description CD-L CDGND CDGND CD-R J12 : External Speaker Header PIN No. Signal Description Speaker 3301390 Series User s Manual...
  • Page 19 Signal Description RESET# Ground Data 7 Data 8 Data 6 Data 9 Data 5 Data 10 Data 4 Data 11 Data 3 Data 12 Data 2 Data 13 Data 1 Data 14 Data 0 Data 15 3301390 Series User s Manual...
  • Page 20 INT REQ HDC CS0# HDC CS1# HDD Active# Ground J19 : IR Header PIN No. Signal Description IRRX IRTX J20 : 8-Bit GPIO Header PIN No. Signal Description GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 3301390 Series User s Manual...
  • Page 21 Hardware Configuration J23 : DVI (TMDS) Panel Connector (Only for 3301390 ) PIN No. Signal Description PIN No. Signal Description TMDS_DATA0- TMDS_DATA0+ TMDS_DATA1- TMDS_DATA1+ TMDS_DATA2- TMDS_DATA2+ TMDS_CLK- TMDS_CLK+ DVI_DDCCLK DVI_DDCDAT DVI_HPD J21/J22/J41/J42 : Serial ATA 1 /2/3/4 PIN No. Signal Description...
  • Page 22 J28 : 4P Power Connector for CPU 12V Power PIN No. Signal Description +12V +12V J30/J31 : Ethernet LED Header PIN No. Signal Description Link# Link# pull high Active# Active# pull high Link10/100 Link10/100 pull high Link1000 Link1000 pull high 3301390 Series User s Manual 2-11...
  • Page 23 Shield GND Shield GND J33 : D-SUB 15 VGA Connector PIN No. Signal Description GREEN BLUE DDC DATA HSYNC VSYNC DDC CLK J34 : External Keyboard Connector PIN No. Signal Description Keyboard Clock Keyboard Data 3301390 Series User s Manual 2-12...
  • Page 24 Ground Ground Data 0 Data 1 Data 2 Data 11 Data 12 Data 13 Data 14 Data 15 SDCS#3 Ground IOR# IOW# Ground RESET# IORDY IDEACT# PDIAG# Data 8 Data 9 Data 10 Ground 3301390 Series User s Manual 2-13...

  • Page 25: Chapter 3 System Installation

    (pin 1) of the CPU corresponds to the socket’s bevel end. Then press the CPU gently until it fits into place. If this operation is not easy or smooth, don’t do it forcibly. You need to check and rebuild the CPU pin uniformly. 3301390 Series User s Manual...
  • Page 26 4) Follow the steps of installing a CPU to change to another one or place handling bar to close the opened socket. Configuring System Bus 3301390 Series will automatically detect the CPU used. CPU speed of Intel Pentium M can be detected automatically. JP2 : CPU Type Process Selection Banias Ì...

  • Page 27: Main Memory

    System Installation Main Memory 3301390 Series provides two 2 x 200-pin SODIMM sockets (dual channel) support 1.8V DDR2 400/533 non-ECC DIMMs as on-board main memory. The maximum memory size can be up to 2GB. Auto detecting memory clock according to BIOS CMOS settings.
  • Page 28 System Installation Note: Please refer to section 3-3-1 to 3-3-4 to install INF/VGA/LAN/Audio drivers. 3301390 Series User s Manual...

  • Page 29: Chipset Component Driver

    3.3.1 Chipset Component Driver The chipset on 3301390 Series is a new chipset that a few old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 2000/XP, please install its INF before any of other Drivers are installed.

  • Page 30: On-Board Gigabit Ethernet Controller

    3.3.3 On-board Gigabit Ethernet Controller Drivers Support Please find Marvell 88E8053 (via PCI-E) driver in /Ethernet directory of 3301390 CD-title. The drivers support Windows 2000 / XP. LED Indicator (for LAN status) 3301390 Series provides three LED indicators to report Ethernet interfaces status.

  • Page 31: Clear Cmos Operation

    Additionally, there are maximum 2 seconds of counting tolerance that should be considered into user’ application program. For more information about WDT, please refer to Winbond W83627THF data sheet. 3301390 Series User s Manual...
  • Page 32 Value of Count-mode Register : 1) 0x00 -- Count down in seconds (Bit3=0) 2) 0x08 -- Count down in minutes (Bit3=1) Value of Time-out Value Register : 1) 0x00 -- Time-out Disable 2) 0x01~0xFF -- Value for counting down 3301390 Series User s Manual...

  • Page 33: Gpio

    (0V/5V), and each source sink capacity up to 12mA. 3301390 GPIO Programming Guide There are 8 GPIO pins on 3301390 Series. These GPIO pins are from SUPER I/O (W83627THF) GPIO pins, and can be programmed as Input or Output direction. J20 pin header is for 8 GPIO pins and its pin assignment as following : J20_Pin1=GPIO0:from SUPER I/O_GPIO10 with Ext.
  • Page 34 Read LD7_CRF1h_Bit0; Read the status from GPIO10 pin (J20_Pin1) How to access W83627THF CR? In 3301390 Series, the EFER = 002Eh, and EFDR = 002Fh. EFER and EFDR are 2 IO ports needed to access W83627THF CR. EFER is the Index Port, EFDR is the Data Port.
  • Page 35 ; Read CR30 mov al,30h out dx,al mov dx,2fh in al,dx or al,01h mov ah,al mov dx,2eh ; CR30_Bit0.P1 mov al,30h out dx,al mov dx,2fh mov al,ah out dx,al 3301390 Series User s Manual 3-11...
  • Page 36 ; Read LD7_CRF1 out dx,al mov dx,2fh in al,dx and al,0efh mov ah,al mov dx,2eh mov al,0f1h ; LD7_CRF1_Bit4.P0 out dx,al mov dx,2fh mov al,ah out dx,al 3301390 Series User s Manual 3-12...
  • Page 37 System Installation mov dx,2eh ; Exit Configuration Mode mov al,0AAh out dx,al 3301390 Series User s Manual 3-13...

  • Page 38: Chapter 4 Bios Setup Information

    BIOS Setup Information Chapter 4 BIOS Setup Information 3301390 Series is equipped with the AWARD BIOS stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods.

  • Page 39: Main Menu

    BIOS Setup Information Main Menu Once you enter 3301390 Series AWARD BIOS CMOS Setup Utility, you should start with the Main Menu. The Main Menu allows you to select from eleven setup functions and two exit choices. Use arrow keys to switch among items and press <Enter>...

  • Page 40: Standard Cmos Setup Menu

    Drive B [None] Video [EVG/VGA] Base Memory 640K Extended Memory 1047522K Total Memory 1048576K : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 3301390 Series User s Manual...
  • Page 41 Displays the amount of conventional Base Memory 640K memory detected during boot up Extended Displays the amount of extended Memory memory detected during boot up Displays the total memory available in Total Memory the system 3301390 Series User s Manual...

  • Page 42: Ide Adaptors Setup Menu

    Note: PRECOMP=65535 means NONE! Access Mode Choose the access mode for this hard disk Large Auto The following options are selectable only if the ‘IDE Channel 0 Master ‘item is set to ‘Manual’ 3301390 Series User s Manual...
  • Page 43 … on this channel Cylinder 38309 Head Precomp Landing one 38308 Sector : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 3301390 Series User s Manual...
  • Page 44 **** Warning: Setting a value of 65535 Max = 65535 means no hard disk Landing one Min = 0 **** Max = 65535 Sector Min = 0 Number of sectors per track Max = 255 3301390 Series User s Manual...

  • Page 45: Advanced Bios Feature

    APIC Mode [Enabled] MPS Version Control For OS [1.4] Small Logo(EPA) Show [Disabled] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 3301390 Series User s Manual...
  • Page 46 Press <ESC> to exit this menu. Bootable Add-in Cards Select SCSI Device Boot Ch x M (S). Select IDE Channel 0,1 Master or Salve Boot Ch x M. Select IDE Channel 2 or 3 Master Boot 3301390 Series User s Manual...
  • Page 47 Select your boot device priority. The choice: Enabled, Disabled. Swap Floppy Drive If the system has two floppy drives, choose enable to assign physical driver B to logical drive A and Vice-Versa. The choice: Enabled, Disabled. 3301390 Series User s Manual 4-10...
  • Page 48 The system will not boot and access to Setup will be denied if the System correct password is not entered at the prompt. The system will boot, but access to Setup will be denied if the Setup correct password is not entered at the prompt. 3301390 Series User s Manual 4-11...
  • Page 49 BIOS Setup Information APIC Mode The choice: Enabled, Disabled. MPS Version Control For OS The choice: 1.1, 1.4. Small Logo (EPA) Show The choice: Enabled, Disabled. 3301390 Series User s Manual 4-12...

  • Page 50: Advanced Chipset Feature

    Video Connector [Automatic] TV Format [Auto] FWH Write Protection [Disabled] BootBlock Protection [Disabled] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 3301390 Series User s Manual 4-13...
  • Page 51 The choice: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15, Auto. System Memory Frequency Users are recommended to use Auto for memory frequency selection. The choice: 333MH, 400MH, 533MH and Auto. 3301390 Series User s Manual 4-14...
  • Page 52 This memory must be mapped into the memory space below 16MB. The choice: Enabled, Disabled. TV-Out Mode (Only for 3301390) The choice: NTSC, PAL, PAL-M, PAL-N. On-Chip Frame Buffer Size (Only for 3301390) The choice: 1MB, 8MB. DVMT Mode (Only for 3301390) The choice: DVMT, FIXED and BOTH.

  • Page 53: Integrated Peripherals

    BIOS Setup Information Panel Type (Only for 3301390) The choice: 640X480 18bit 1ch, 800X600 18bit 1ch, 1024X768 18bit 1ch, 1024X768 24bit 1ch, 1280X1024 24bit 1ch, 1280X1024 24bit 2ch, 1400X1050 18bit 2ch, and 1600X1200 24bit 2ch. TV Standard (Only for 3301390) The choice: Off, NTSC, PAL, and SECAM.
  • Page 54 OnChip Primary/Secondary PCI IDE The chipset contains a PCI IDE interface with support for two IDE channels. Select Enabled to activate the primary IDE interface. Select Disabled to deactivate this interface. The choice: Enabled, Disabled. 3301390 Series User s Manual 4-17...
  • Page 55 Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults USB Controller This item allows you to enable/disable USB (Universal Serial Bus) function. The choice: Enabled, Disabled. 3301390 Series User s Manual 4-18...
  • Page 56 X EPP Mode Select EPP1.7 X ECP Mode Use DMA PWRON After PWR-Fail [Off] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults 3301390 Series User s Manual 4-19...
  • Page 57 UR2 Duplex Mode The available choices are full duplex mode and half duplex mode The choice: Full, Half. Use IR Pins The available choices are IR-Rx2Tx2/ RxD2, TxD2. The choice: IR-Rx2Tx2 / RxD2, TxD2. 3301390 Series User s Manual 4-20...
  • Page 58 Watch Dog Timer Select This BIOS testing option is able to reset the system according to the selected table. The choice: Disabled, 10 Sec, 20 Sec, 30 Sec, 40 Sec, 1 Min, 2 Min, and 4 Min. 3301390 Series User s Manual 4-21...

  • Page 59: Power Management Setup

    F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The choice: Enabled, Disabled. 3301390 Series User s Manual 4-22...
  • Page 60 Video Off In Suspend This allows user to enable/disable video off in Suspend Mode. The choice: Yes, No. Suspend Type Two options are available: Stop Grant and PwrOn Suspend. The choice: Stop Grant, PwrOn Suspend. 3301390 Series User s Manual 4-23...
  • Page 61 This item allows users to enable/disable the resume by alarm function. When “Enabled” is selected, system using ATX power supply could be powered on if a customized time and day is approached. The choice: Enabled, Disabled. 3301390 Series User s Manual 4-24...
  • Page 62 The choice: Enabled, Disabled. PCI PIRQ[A-D]# This option can be used to detect PCI device activities. If they are activities, the system will go into sleep mode. The choice: Enabled, Disabled. 3301390 Series User s Manual 4-25...

  • Page 63: Pnp/Pci Configurations

    Default is disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot. The choice: Enabled, Disabled. 3301390 Series User s Manual 4-26...
  • Page 64 Legacy ISA for devices compliant with the original PC AT bus specification, PCI/ISA PnP for devices compliant with the plug and play standard whether designed for PCI or ISA bus architecture. The choice: PCI/ISA PnP, Legacy ISA. PCI/VGA Palette Snoop The choice: Enabled, Disabled. 3301390 Series User s Manual 4-27...

  • Page 65: Pc Health Status

    This item allows you to set a temperature above which the system will start the beeping warning. Default setting is disabled. This function will only with “ACPI” power management and “S3 (STR)” suspends type. The choices: Disabled, 50 /122 , 60 /140 , 70 /158 . 3301390 Series User s Manual 4-28...

  • Page 66: Frequency/Voltage Control

    When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Load Optimized Defaults (Y/N) ? N Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations. 3301390 Series User s Manual 4-29...

  • Page 67: Supervisor/User Password Setting

    Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. 3301390 Series User s Manual 4-30...

  • Page 68: Exiting Selection

    Pressing <Enter> on this item asks for confirmation: Quit Without Saving (Y/N)? This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. 3301390 Series User s Manual 4-31...

  • Page 69: Chapter 5 Troubleshooting

    Hardware Quick Installation Backplane 3301390 series is a full-sized Signal Board Computer, and therefore is only able to run on PICMG PCI/ISA backplane. To know whether your backplane is PICMG PCI/ISA backplane, please contact with vendor or manufacturer. P4 Power connector 3301390 series requires power drawing from at least one or two power connectors (J28 and J16), depending on power mode (AT or ATX).
  • Page 70 ATX Power Setting This section would be more likely to introduce you how to set up ATX mode on your 3301390 series. Please refer to the following instruction. Step 1: Connect 20-pin power cable of the ATX POWER with ATX POWER CONNECTOR (20-pin) on the backplane.
  • Page 71 Step 4: Please connect 12V Power to CPU supplementary Power Connector (J28), which shows on Figure 5-1. Step 5: Connect TOGGLE SWITCH with J7 connector on 3301390 series (Figure 5- 5), which is used to power on ATX Power Supply. Generally, the TOGGLE SWITCH is located on the chassis of front panel.
  • Page 72 Power setting to AT mode. Otherwise, system would not boot up properly. Step 2: Remove 4 pins power cable, and then put a jumper back on pin 3 (PS-ON) and pin 4 (GND) of backplane ATX P/S control connector. (Figure 5-7) Figure 5-7 3301390 Series User s Manual...
  • Page 73 (As Figure 5-9), and turn on AC power switch of ATX power supply to let system boot up. If you are using AT power supply, you can simply turn on the power on AT power supply to boot up the system. Figure 5-9 3301390 Series User s Manual...
  • Page 74 Change DRAM or reinstall it One long beep with two Monitor or Display Please check Monitor connector short beeps Card error whether it inserts properly Beep rapidly Power error warning Please check Power mode setting 3301390 Series User s Manual...

  • Page 75: Frequency Asking Questions

    PCI device, backplane, and so on. If the system still cannot boot up, please fill out RMA from which is provided on Global American website, and then send back to Global American as a RMA?
  • Page 76 Q: After inserting Compact Flash, why doesn t it work at all? A: Compact Flash is occupied with the (Master device of Primary IDE Channel If there is any device occupying this channel, please remove it or set it as a Slave device. 3301390 Series User s Manual...

  • Page 77: Bios Setting

    Besides, after installing Microsoft series OS successfully, you also need to install ATA-66/100 driver to active ATA-66/100 function. Q: Could 3301390 series support RAID function? A: No, 3301390 adopts Intel ® 82801FB ICH6. From Intel spec, it doesn’t support Raid function, only 82801FB ICH6-R support Raid function. BIOS Setting It is assumed that users have correctly adopted modules and connected all the devices cables required before turning on AT or ATX power.
  • Page 78 Unused It is then very easy to find out which IRQ resource is ready for additional peripherals. If IRQ resource is not enough, please disable some devices listed above to release further IRQ numbers. 3301390 Series User s Manual 5-10...

  • Page 79: Appendix A System Memory Address Map

    Appendix A System Memory Address Map (Only for 3301390 ) Each On-board device in the system is assigned a set of memory addresses, which also can be identical of the device. The following table lists the system memory address used.
  • Page 80 Appendix A System Memory Address Map (Only for 3301390 ) Each On-board device in the system is assigned a set of memory addresses, which also can be identical of the device. The following table lists the system memory address used.
  • Page 81 IRQ 10 [Unassigned] Usable IRQ IRQ 11 [Unassigned] Usable IRQ IRQ 12 System ROM IBM Mouse Event IRQ 13 System ROM Coprocessor Error IRQ 14 System ROM Hard Disk Event IRQ 15 [Unassigned] Usable IRQ 3301390 Series User s Manual...
  • Page 82 We will do our best to support your products, projects and business. Address: Global American, Inc. 17 Hampshire Drive Hudson, NH 03051 Telephone: Toll Free U.S. Only (800) 833-8999 (603) 886-3900 FAX: (603) 886-4545 Website: http://www.globalamericaninc.com Support: Technical Support at Global American...
