User's Manual
Single B oard Computer 3308540
Version 1 .0 , March 2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3308540 and is the answer not in the manual?

Questions and answers

Related Manuals for Global American 3308540

Summary of Contents for Global American 3308540

  • Page 1 User’s Manual Single B oard Computer 3308540 Version 1 .0 , March 2009...
  • Page 2 Copyrights This manual is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer. In general, the manufacturer will not be liable for any direct, indirect, special, incidental or consequential damages arising from the use of inability to use the product or documentation, even if advised of the possibility of such...

  • Page 4: Packing List

    Packing List Please check the package before you starting setup the system Hardware: 3308540 Miniboard x 1 Cable Kit: 44-pin 40-pin 44-pin DC Power Cable x 1 ATA33 IDE Cable x1 SATA Cable x 1 SATA Power Cable x 1 PS/2 keyboard &...

  • Page 5: Printed Matters

    COM Port Cable x 1 USB Cable x 1 Printed Matters: Driver CD x 1 (Including User’s Manual)

  • Page 6: Intel Atom Processor

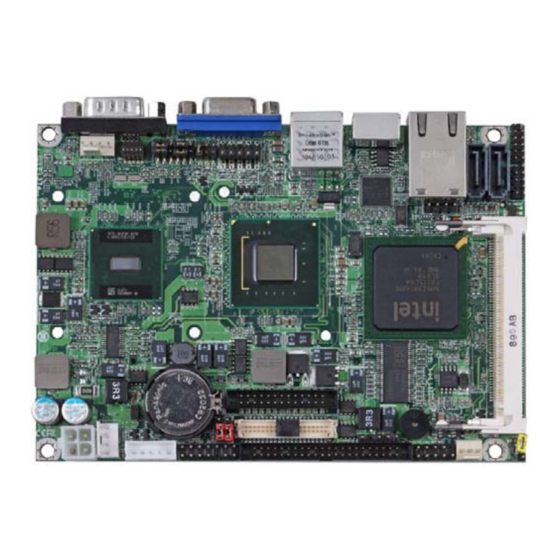

    Chapter 1 <Introduction> 1.1 <Product Overview> 3308540 is a 3.5 inch miniboard, with Intel® Atom N270 processor for 533 MHz front side bus, Intel® 945GSE and ICH7M chipset, integrated GMA950 graphics, DDR2 SO-DIMM memory, Realtek AC97 Audio, Serial ATA and one Intel® 82574L Gigabit LAN.
  • Page 7 1.2 <Product Specification> General Specification Form Factor 3.5 inch miniboard Intel® Atom N270 processor Package type: FCBGA8 Front side bus: 533MHz Memory 1 x 200-pin DDR2 SO-DIMM SDRAM up to 2GB Unbufferred, none-ECC memory supported only Chipset Intel® 945GSE and ICH7M BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS Green Function...
  • Page 8 146.5 (L) x 101(H) mm Temperature Operating within 0 ~ 60℃ Storage within -20 ~ 85℃ Ordering Code 3308540 Support Intel Atom N270 processor with onboard VGA, HDTV, DVI, LVDS, Audio, SATA, Giga LAN, USB2.0, CF, GPIO, Mini PCI, FDD...
  • Page 9 1.3 <Mechanical Drawing> Unit: inch...
  • Page 10 1.4 <Block Diagram> Intel Atom N270 Processor 1 x 200-pin DDR2 SO-DIMM SDRAM Intel GMA950 Graphics 533/677MHz Intel 945 GSE HDTV＆LVDS＆DVI 7307C 2 x SATA CompactFlash＆IDE AC97 ALC655 ICH7M 4 x USB2.0 ports Intel 82574L 1 x GLAN Mini PCI W83627THG 2 x Serial ports 8-bit GPIO...
  • Page 11 Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_DVI DC_IN CN_IR CN_USB JFRNT CN_INV DC_OUT SYSFAN CN_LVDS MINIPCI CDIN CN AUDIO CN_DIO SATA1/2 CN_COM2 CN_HDTV CPUFAN...
  • Page 12 DDRII RJ45 COM1...
  • Page 13 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD LCD Panel Voltage Setting AT Mode JCSEL1/2 COM2 RS232/422/485 mode setting JRTC JVLCD JCSEL2 JCSEL1...
  • Page 14 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DDRII 200 -pin DDR2 SO-DIMM SDRAM slot Standard 44-pin primary IDE connector Slim SATA1/2 7-pin Serial ATA connector Standard CN_AUDIO 5 x 2-pin audio connector Slim CDIN 4-pin CD-ROM audio input connector Standard CN_DIO 6 x 2-pin digital I/O connector...
  • Page 15 2.4 <CPU and Memory Setup> The board provides one 200-pin DDR2 SO-DIMM to support DDR2 533 memory modules up to 2GB of capacity. Non-ECC, unbuffered memory is supported only. DDRII...
  • Page 16 2.5 <CMOS＆ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. Jumper: JRTC Type: Onboard 3-pin jumper JRTC Mode...
  • Page 17 2.6 <Enhanced IDE & CF Interface> The board has one Ultra DMA33 IDE interface to support up to 2 ATAPI devices, and one Compact Flash Type II socket on the solder side.
  • Page 19 2.7 <Serial ATA Interface> Based on Intel ICH7M, the board provides two Serial ATA interfaces with up to 150MB/s of transfer rate SATA1/2...
  • Page 20 2.8 <LAN Interface> The Intel 82574L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
  • Page 21 2.9 <Onboard Display Interface> Based on Intel 945GSE chipset with built-in GMA (Graphic Media Accelerator) 950 graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LCD and DVI and TV-out.
  • Page 22 2.9.2 <Digital Display> The board provides one 40-pin LVDS connector for 18-bit dual channel panels, supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting CN_LVDS CN_INV JVLCD...
  • Page 23 Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V VCC(5V) LCDVCC VCC3(3.3) ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Signal Signal LCDVCC LCDVCC ATX0-...
  • Page 24 LCD Installation Guide: Preparing the 3308540 LCD panel and the backlight inverter Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
  • Page 25 2.9.3 <DVI Interface > The board also comes with a DVI interface with Chrontel CH7307C for digital video interface. Supports up to 1600 x 1200 (UXGA) of resolution. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment...
  • Page 26 2.9.4 <TV-out Interface> The board provides an HDTV interface with Intel 945GSE, supports PAL and NTSC of TV system, and display (clone or extended desktop) function with CRT, LVDS and DVI. Connector: CN_HDTV Connector type: 10-pin header HDTV connector (pitch = 2.54mm) Pin Number Assignment Pin Number...
  • Page 27 After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: On board 18 bit LVDS Single channel Dual channel Output format Output format 640 x 480 1280 x 768 800 x 480 800 x 600 1024 x 600...
  • Page 28 2.10 <Onboard Audio Interface> The board provides the onboard AC97 5.1-channel audio interface with Realtek ALC655 Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.0mm x 2.0 mm-pitch header Description Description LIN_L Ground LIN_R MIC 2 MIC 2 Ground FRONTL FRONTR Ground Connector: CDIN Type: 4-pin header (pitch = 2.54mm)
  • Page 29 2.11 <USB2.0 Interface> Based on Intel ICH7M , the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller ICH7M Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB CN_IR...
  • Page 30 Connector: CN_IR Type: 5-pin header for SIR Port Description IRRX Ground IRTX Connector: CN_USB Type: 10-pin (5 x 2) header for USB Port Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically.
  • Page 31 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground Ground +12V CN_DIO...
  • Page 32 2.13 <Serial Port Jumper Setting > The board provides three RS232 serial ports, with jumper selectable RS422/485 for COM2. Connector: CN_COM2 Type: 10-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM2 Description Description DCD/422TX-/485- RXD/422TX+/485+ TXD/422RX+ DTR/422RX- JCSEL1 JCSEL2 RS-232 RS-485 RS-422...
  • Page 33 CN_COM2 JCSEL1 JCSEL2...
  • Page 34 2.14 <Power and Fan Connector> The board requires DC input with 4-pin hear, the input voltage range is from 9V to 24V, for the input current, please take a reference of the power consumption report on appendix. 2.14.1 <Power Input> Connector: DC_IN Type: 4-pin header Description...
  • Page 35 2.14.2 <Power Output> Connector: DC_OUT Type: 4-pin connector for +5V/+12V output Pin Description Pin Description Pin Description Pin Description +12V Ground Ground Note: Maximum output current 12V/3A, 5V/3A 2.14.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector Description Description Description Ground +12V...
  • Page 36 Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header Function Signal Signal Function HDLED+ PWRLED+ IDE LED Power HDLED- Reset+ PWRLED- Reset Reset- SPK+ Speaker PWRBT+ Power Button PWRBT- SPK- JFRNT...
  • Page 37 Chapter 3 <System Configuration> 3.1 <Video Memory Setup> Based on Intel® 945GSE chipset with GMA (Graphic Media Accelerator) 950, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 224MB. To support DVMT, you need to install the Intel GMA 950 Driver with supported OS.
  • Page 38 Notice: The On-Chip Frame Buffer Size would be included in the Fixed Memory. Please select the memory size according to this table. On-Chip Fixed DVMT Total System Frame Memory Memory Graphic Memory Buffer Size Size Size Memory 32MB 32MB 32MB 32MB 128MB~255MB 32MB...
  • Page 39 3.2 <Audio Configuration> The board provides 5.1 channel audio interface with driver installed, please install the Realtek ALC655 audio driver in the CD before getting start to enjoy the 5.1 channel sound system. Install REALTEK AC97 Audio driver. Lunch the control panel and Sound Effect Manager. Select Speaker Configuration.
  • Page 40 A.5 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on rear panel Description Description Ground A.6 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3-...
  • Page 41 Appendix C <System Resources> C1.<I/O Port Address Map>...
  • Page 43 C2. <Memory Address Map>...
  • Page 44 C3. <System IRQ Resources>...
  • Page 45 Appendix D <Programming GPIO’s> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87 -o 2E 29 -o 2F 40 ;enable GPIO function -o 2E 07...
  • Page 46 Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample Watchdog timer setup as system reset with 5 second of timeout...
