330420 User's Manual
5.25" Embedded Controller with Socket 237 for Intel 486 Processor
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3304220 and is the answer not in the manual?

Questions and answers

Related Manuals for Global American 3304220

Summary of Contents for Global American 3304220

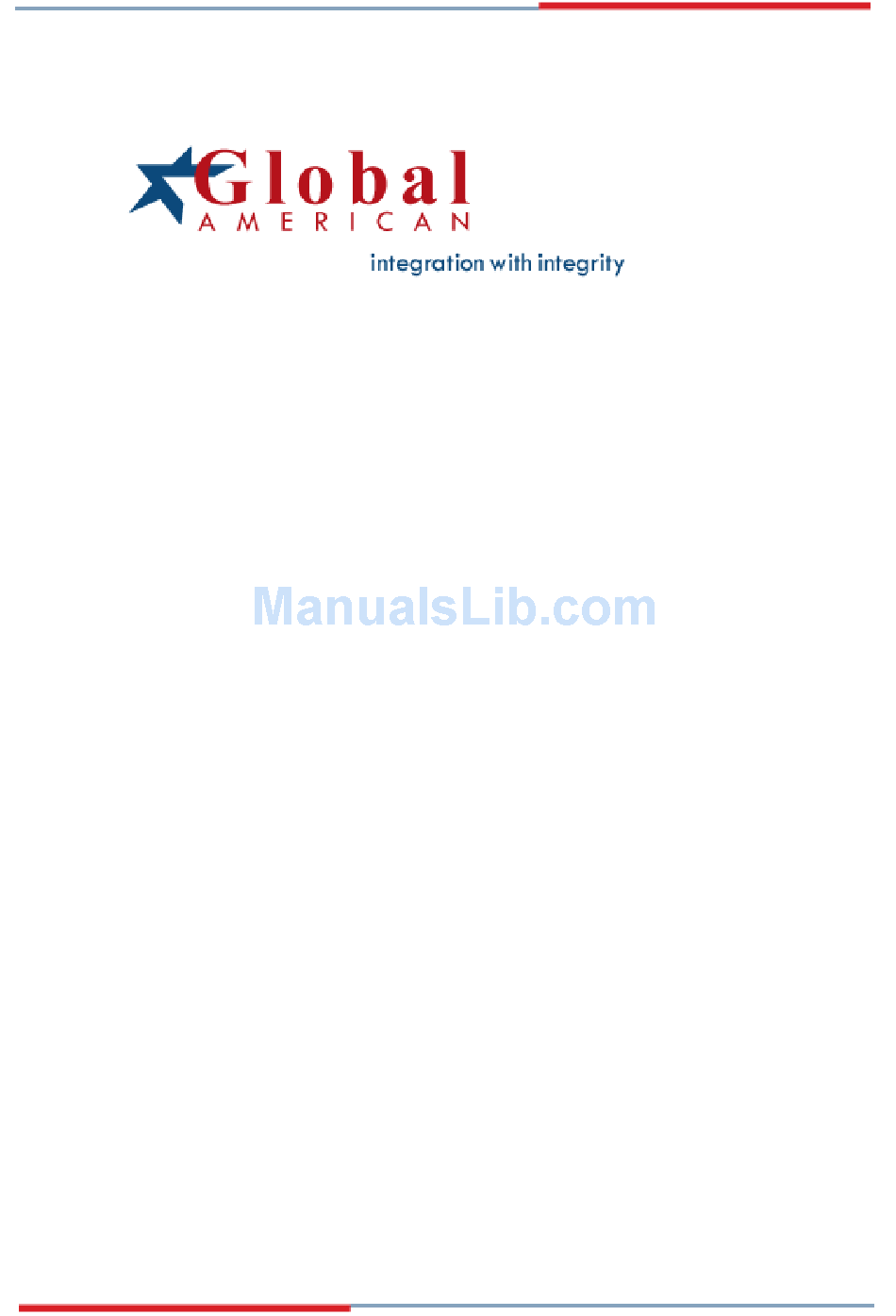

  • Page 1 330420 User’s Manual 5.25" Embedded Controller with Socket 237 for Intel 486 Processor Version 1.0...
  • Page 2 Copyrights This document is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer.
  • Page 3 ACKAGE HARDWARE INSTALLATION..................7 2.1 C ..............7 AUTION OF TATIC LECTRICITY 2.2 C ........8 AUTION ON NPACKING AND EFORE NSTALLATION 2.3 3304220 L ....................9 AYOUT 2.4 Q ................10 UICK ISTING OF UMPERS 2.5 Q ...............10 UICK ISTING OF ONNECTORS 2.6 J ................12...

  • Page 5: General Information

    Chapter-1 General Information The 3304220 is an all-in-one half size industrial single board with design in Novell NE2000 compatible 32-bit PCI bus Ethernet, provides 100 BASE-T or 10 BASE-T for directly network automation demand. Supports for various 40-133 MHz 80486SX/DX/DX2/DX4, 5x86 CPUs with 32-bit data bus and processing ability.

  • Page 6: Major Features

    1.1 Major Features ?? 80486SX/DX/DX2/DX4, 5x86 CPU supported. ?? ALi 1487/1489 chipset. ?? Supports DRAM up to 64 MB. ?? Fast PCI enhanced IDE controller supports two IDE drives. ?? Three high-speed serial RS-232 ports and one RS232/422/485 selectable port (supports 16C550 UART with 16-byte FIFO).

  • Page 7: Specifications

    1.2 Specifications ?? CPU: 80486SX/DX/DX2/DX4/5X86. ?? Bus interface: PCI bus ?? Chipset: ALi 1487/1489 ?? Data bus: 32-bit ?? Processing ability: 32-bit ?? PCI Flat Panel / VGA Controller: VGA Chipset with 1 MB memory interface to color and monochrome Single Drive (SS) and Dual Drive (DD) STN, TFT &...
  • Page 8 ?? Operating temperature: 0-55°C (CPU need cooler). Board size: 8" (L) x 5.75" (W) (203mm x 146mm). 1.3 Delivery Package The delivery package of 3304220 includes all following items: ? ? 3304220 Industrial Single Board Printer port Flat Cable IDE port Flat Cable...

  • Page 9: Hardware Installation

    Hardware Installation This chapter provides the information on how to install the hardware of 3304220. At first, please follow up sections 1.3, 2.1 and 2.2 in check the delivery package and carefully unpacking. Following after, the jumpers setting of switch, watchdog timer, and the DiskOnChip? address selection.
  • Page 10 2.2 Caution on Unpacking and Before Installation First of all, please follow with all necessary steps of section 2.1 in protection the 3304220 from electricity discharge. With refer to section 1.3, please check the delivery package again with following steps: 1.
  • Page 11 2.3 3304220 Layout...
  • Page 12 2.4 Quick Listing of Jumpers JP1, 2, 3, 4, 5, 7, 8, 9, 10 for CPU type setting — — for AMD CPU type selection JP11, 12 for Cache size setting — JP13 — CPU clock selection JP14 for DiskOnChip™ address setting —...
  • Page 13 CN13: COM1 CN14: COM2 CN15: COM3 CN16: COM4 CN17: FDD CONNECTOR CN18: POWER CONNECTOR CN19: ETHERNET CONNECTOR...

  • Page 14: Jumper Setting Description

    2.6 Jumper Setting Description A jumper pin-set is ON as a shorted circuit with a plastic cap inserted over two pins. A jumper pin-set is OFF as a open circuit with a plastic cap inserted over one or no pin(s) between pins. The below figure 2.2 shows the examples of different jumper pin-set setting as ON or OFF in this manual.
  • Page 15 2.7 Setting the CPU of 3304220 The 3304220 provides all possibility in jumper setting for wide using all types of 486 series CPU with JP1, JP2, JP3, JP4, JP5, JP7, JP8, JP9 and JP10 setting as following: CPU Clock Setting JP10 1.IntelDX4™...

  • Page 16: Cmos Data Clear

    JP25 DESCRIPTION Clear Data *OFF Normal 2.9 Cache Size Select The 3304220 design in with a wide ranges Cache Size architectures to meet all different costs request. The standard specification is 32K x 8. Cache Size select JP11 JP12 DESCRIPTION...

  • Page 17: System Memory Dram

    2.10 System Memory DRAM The 3304220 provides a wide range on-board DRAM memory sizes from 1 MB to 16 MB by using 1, 2, 4, 8 or 16MB 72-pin SIMMs (Single In-Line Memory Modules) with access time should be 70 n-second or faster.
  • Page 18 JP19 : WDT Time - Out Period PERIOD *1 sec 2 sec 10 sec 20 sec 110 sec 220 sec The Watch -dog timer is disabled after the system Power-On. The watch -dog timer can be enabled by a Enable cycle with reading the control port (443H), a Refresh cycle with reading the control port (443H) and a Disable cycle by reading the Watch -dog timer disable control port (043H).

  • Page 19: Vga Controller

    STN LCDs and up to 16 M co lors on 24-bit active matrix LCDs. The 3304220 uses C&T 65550 chipset. Provides 2.0 mm pitch 44-pin on-board internal connector for flat panel connection; and a external DB15 analogy R.G.B.
  • Page 20 2.13 DiskOnChip? Address Setting The 3304220 provides a U8 socket for install the DiskOnChip? module. A JP14 may select the starting memory address of the DiskOnChip? (D.O.C.) for avoid the mapping area with any other memory devices. If you have another extra memory devices in the system with the same memory, neither the 3304220 nor the extra memory devices will function normally.
  • Page 21 Chapter-3 Connection This chapter gives all necessary information of the peripheral's connections, switches and indicators. 3.1 The Floppy Disk Drive Connector A standard 34-pin header daisy-chain driver connector provides as CN17 with following pin assignment. Total two FDD drivers may connect. CN17 : FDD CONNECTOR PIN NO.
  • Page 22 3.2 PCI E-IDE Drive Connector A standard 40-pin header daisy-chain driver connector provides as CN9 with following pin assignment. Total two IDE (Integrated Device Electronics) drivers may connect. CN9(IDE 1) : Primary IDE Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION RESET GROUND DATA 7...

  • Page 23: Parallel Port Connector

    3.3 Parallel Port Connector A standard 26-pin flat cable driver connector provides as CN12 with following pin assignment for connection to parallel printer. CN12 : Parallel Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION STROBE DATA 0 DATA 1 DATA 2 DATA 3 DATA 4 DATA 5...
  • Page 24 3.4 Serial Ports Connectors The 3304220 CN13, 14, 15 and 16 headers provides four high speeds NS16C550 compatible UARTs with Read/Receive 16 byte FIFO serial ports. Please see the following pin assignment. With the delivery package, user may uses the 40-pin COM cable for plug into CN13, 14, 15 and 16 for get COM1 to COM4 connection.
  • Page 25 The 3304220 also provides for user in select to using the COM4 as an RS422/485. The CN16 for uses as an RS232, the CN11 for uses as an RS422 or RS485. Please reference to the following for setting the JP22 & JP23 at disable and JP24 at enable if uses as RS232 at CN16.
  • Page 26 3.5 Keyboard & Mouse Connector The 3304220 provides a 8-pin header connector CN7 for connection to Keyboard & Mouse devices. CN7 : 8-pin Header Keyboard Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION MS-DATA MS-CLK KB-DATA KB-CLK 3.6 Power's LED, FAN and Key-Lock Connectors The CN1 provides both Power's LED and Key-Lock connector as following pin assignment.
  • Page 27 DESCRIPTION -12V GROUND GROUND 3.8 External Front Panel Connector The 3304220 has an on-board buzzer. With CN3, it allows user in connection to a external speaker, IDE’s LED and Reset bottom. CN3 : Front Panel Connector PIN NO. DESCRIPTION PIN NO.

  • Page 28: Vga Connector

    3.9 PS/2 Mouse IRQ12 Selection Connector The 3304220 has an on-bard PS/2 mouse which using IRQ12. If you do not use the PS/2 mouse and wish to assign IRQ12 for other purposes, you should setting the JP20 to disconnect PS/2 interrupt from IRQ12.
  • Page 29 LED 2 3.12 PC/104 Bus Connection The 3304220 PC/104 expansion bus provides you in connect to all kind PC/104 modules connection. The PC/104 bus has already become the industrial embedded 16-bit PC standard bus, so you can easily install to over thousands of PC/104 modules from hundreds of venders in the world.
  • Page 30 CN4&CN5 : PC/104 Expansion Bus (CN4 = 64-pin female connector; CN5 = 40-pin female connector.) RowA RowB RowC RowD IOCHECK* SBHE* MEMCS16* RESETDRV LA23 IOSC16* LA22 IRQ10 IRQ9 LA21 IRQ11 LA20 IRQ12 DRQ2 LA19 IRQ15 -12V LA18 IRQ14 NOWS* LA17 DACK0* +12V MEMR* DRQ0...
  • Page 31 3.13 Flat-Panel Connector The 3304220 provides a 44-pin 2.0 mm pitch header connector (CN8) for Flat panel connection. The information here also provides some pin information samples to Panel Sharp LM64183P, LM64C35P & LM64C142 and NEC NL8060AC26. +12V +12V FPVee...
  • Page 32 Connections for four standard LCDs Connections to Sharp LM64183P (640 x 480 DSTN MONO LCD) Sharp LM64P83 3304220 CN8 Pin name Pin name CN1-1 CN1-2 CN1-3 SHFCLK CN1-4 DISP CN1-5 CN1-6 CN1-7 -17 V (external power) CN1-8 CN1-9 CN1-10 CN1-11...
  • Page 33 Connections to Sharp LM64C35P (640 x 480 DSTN Stn Color) Sharp LM64C35P 3304220 CN8 Pin name Pin name CN1-1 CN1-2 CN1-3 CN1-4 CN1-5 CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 SLFCHK CN1-11 CN1-12 Vcon Contrast Adjust CN1-13 CN1-14 CN1-15 CN1-16 CN1-17 CN1-18...
  • Page 35 Connections to NEC NL8060AC26 (800 x 600 TFT Color) NEC NL8060AC26 3304220 CN8 Pin name Pin name CN1-1 CN1-2 Dot Clock SHFCLK CN1-3 CN1-4 Hsync CN1-5 Hsync CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13 CN1-14 CN1-15 CN1-16 CN1-17 CN1-18...
  • Page 36 Connections to Sharp LM64C142 (640 x 480 DSTN Stn Color) Sharp LM64C142 3304220 CN8 Pin name Pin name CN1-1 CN1-2 CN1-3 SHFCLK CN1-4 DISP CN1-5 PVdd CN1-6 PVss CN1-7 PVee +27 V (external power) CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13...
  • Page 37 We will do our best to support your products, projects and business. Address: Global American, Inc. 17 Hampshire Drive Hudson, NH 03051 Telephone: Toll Free U.S. Only (800) 833-8999 (603) 886-3900 FAX: (603) 886-4545 Website: http://www.globalamericaninc.com Support: Technical Support at Global American...
