TRC UNIVERSAL IRRIGATION REMOTE CONTROL Operation And Installation Manual page 22

Installing The Universal Receiver

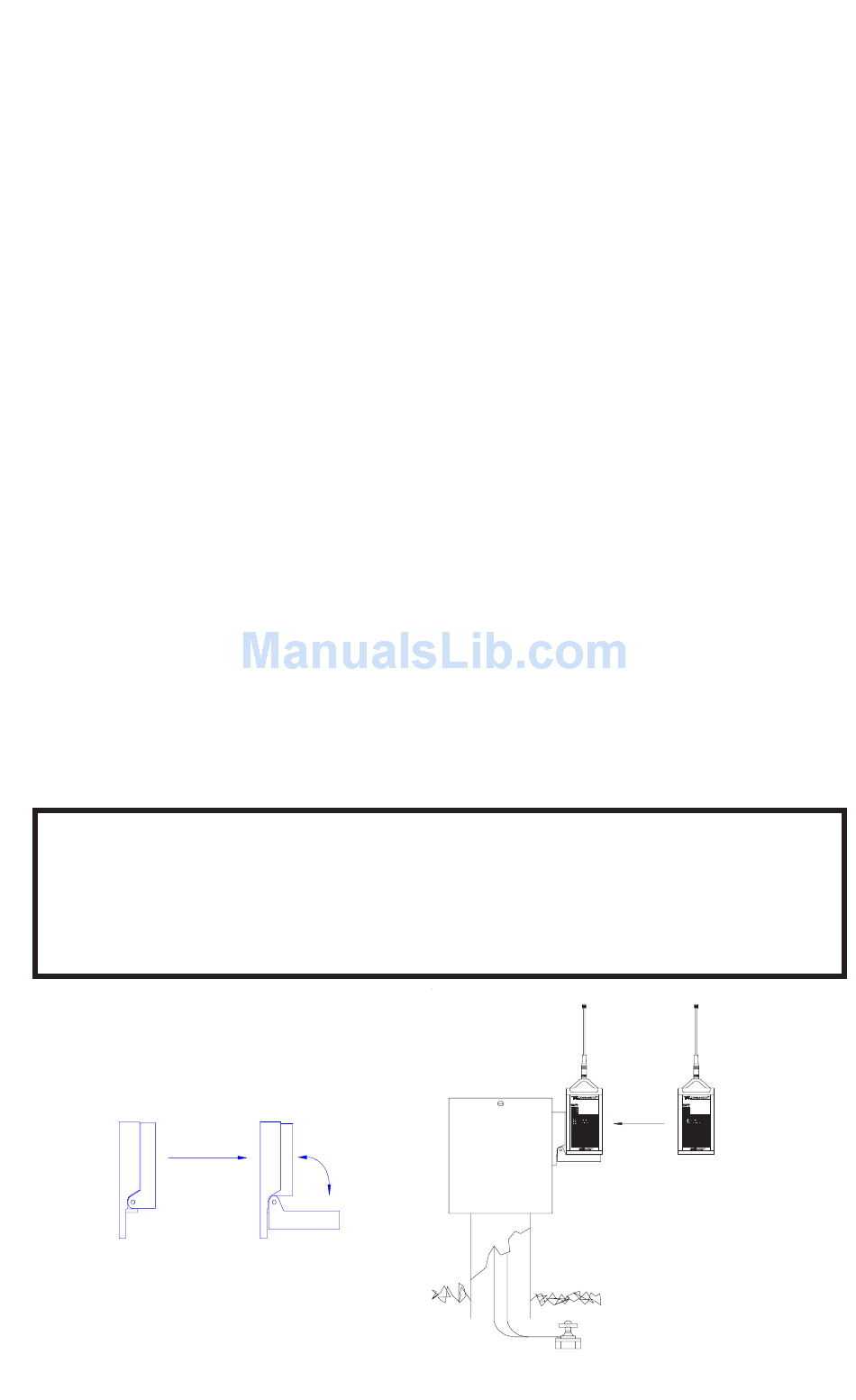

Connecting the TRC Commander Receiver
The TRC Commander works with any 24 VAC solenoid valve sprin-
kler system. The TRC Commander Receiver connects to individual
valves at the controller's terminal strip or directly to the valve wires
at the controller, and bypasses the controller's functions by directly
activating the valves. Once the connector is installed, simply plug
the Receiver into the black receptical.
For locations where minimal operating range is needed, connect
the 8" whip antenna directly to the top of the Receiver. For locations
where more range is needed, use the magnetic base antenna and
the included tuned antenna with threaded base. (Other antenna
options are available).
For maximum performance, all antennas should
be mounted far away from power transformers, electric motors, V.F.D.'s
This type of equipment causes interfer-
and overhead powerlines.
ence.
WARNING!
Never connect directly to 110 VAC. Damage to the
receiver will occur, may be a fire hazard and
will void warranty.
